STM32L4P5G-DK SystemClock_Config error

[JKim.2]

Hello,



I configured the STM32L4P5G-DK project with STM32CubeIDE according to the AN5050 for Octal-SPI PSRAM. At debugging state, the process was halt at SystemClock_Config. The infinite loop looks caused by while(READ_BIT(RCC->CR, RCC_CR_HSERDY) == 0U) after __HAL_RCC_HSE_CONFIG(RCC_OscInitStruct->HSEState); step. The ioc file and main c-code is attached. Please help me to solve this issue.



Thanks.

[TDK]

> STM32L4P5G-DK

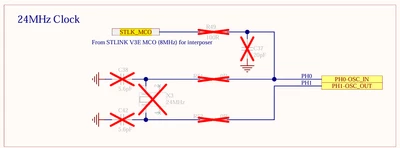

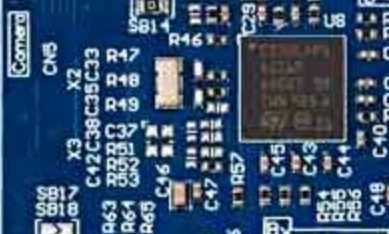

This board does not have an HSE crystal loaded. It is also disconnected from the 8 MHz clock signal from the ST-Link chip. So you can only use the internal HSI by default. Otherwise, you can bridge R49 and use the st-link clock, or load X3 and related caps/resistors to use the HSE crystal.



CubeMX really shouldn't be configuring X3 on this board by default, but it is, and this is the result.

[JKim.2]

Hello @TDK ,



Thank you for the comment. Is it possible to avoid the problem with modifying the source code? If so, could you show me the code snippet for the change?



Thanks.

[TDK]

Disable HSE in the IOC file and regenerate code.
