UART_HyperTerminal_IT Example on STM32N6570-DK Board - Debugger can't connect

[wwnsok2]

I built and debugged the default example UART_HyperTerminal_IT using the STM32N6570-DK board, but the following error occurred. How can I resolve this issue? I am using the latest versions of ST-Link and all related software.

STMicroelectronics ST-LINK GDB server. Version 7.10.0

Copyright (c) 2025, STMicroelectronics. All rights reserved.



Starting server with the following options:

Persistent Mode : Disabled

Logging Level : 1

Listen Port Number : 61234

Status Refresh Delay : 15s

Verbose Mode : Disabled

SWD Debug : Enabled



Waiting for debugger connection...

Debugger connected

Waiting for debugger connection...

Debugger connected

Waiting for debugger connection...

[RomainR.]

Hello @wwnsok2

Do you changed STM32N6570-DK in DEV_BOOT mode to be able to debug it?
Check UM3300 section 7.7 Boot options
https://www.st.com/resource/en/user_manual/um3300-discovery-kit-with-stm32n657x0-mcu-stmicroelectronics.pdf

You can also you refer to this post:

https://community.st.com/t5/stm32-mcus-boards-and-hardware/nucleo-n657x0-q-failed-to-start-gdb-server/m-p/756600#M23206

Best regards,
Romain,

[wwnsok2]

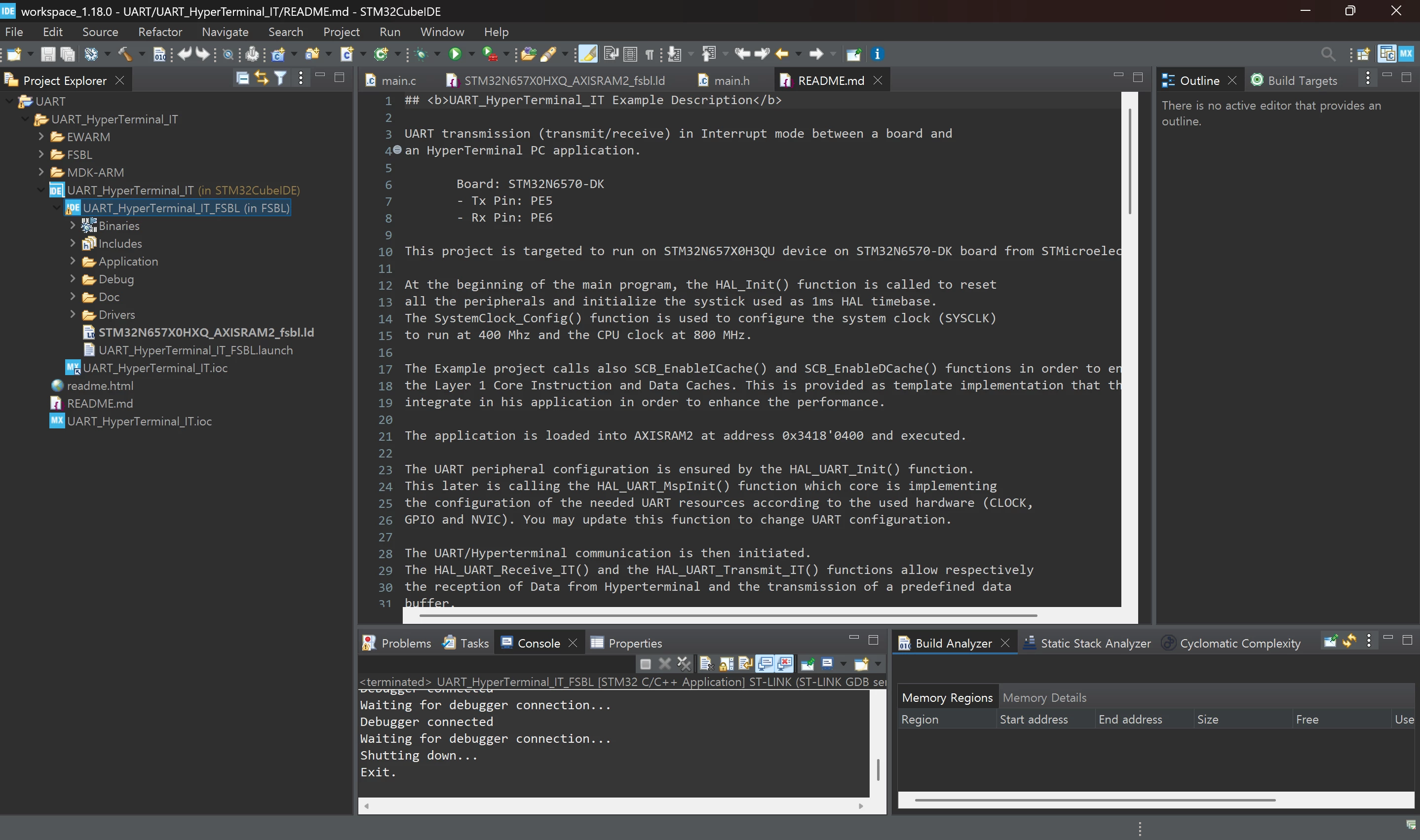

I set it to that mode, but it appears as shown in the attached photo.

[RomainR.]

@wwnsok2, the capture you shared doesn't help.

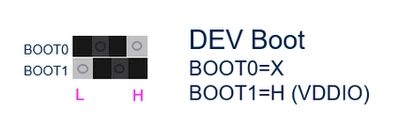

Can you confirm you configured BOOT0 and BOOT1 switch on STM32N6570-DK as the picture bellow:

Then, press one time on NRST black button, LED2 Red must be ON and it confirms that STM32N6 is in DEV_BOOT mode. After that you can start a debug session.

Best regards,

Romain,

[wwnsok2]

I proceeded with that mode, but I still get the same output result.
