32F746GDISCOVERY: Change LCD from KunJjian HT043C to Rocktech RK043FN48H-CT672B ?

[SVerm.3]

Hello Sir,

I urgently want to have an idea whether due to the change of LCD from HT043C KunJjian to RK043FN48H-CT672B Rocktech in 32F746GDISCOVERY Board, is there any changes in the firmware due to this?

I would like to request for early response from your team, thanks for your support in advance.

Note: From the post only I got a point that RK043FN48H-CT672B Rocktech changed from HT043C KunJjian, 32F746GDISCOVERY B02 and C01 - what's the differen... - STMicroelectronics Community

Best Regards

Sushant Verma

[KDJEM.1]

Hello @SVerm.3 ;

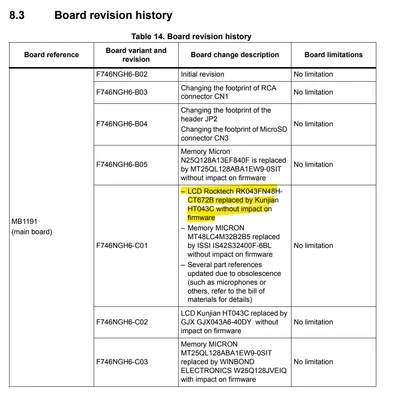

According the UM1907 Rev 6 Table 14. Board revision history, LCD Rocktech RK043FN48HCT672B replaced by Kunjian HT043C without impact on firmware.



Thank you.

Kaouthar

[SVerm.3]

Dear Kaouthar,

Thanks for clarifying, as this RK043FN48H-CT672B Rocktech is obselete hence can we change to RK043FN66HS-CTG Rocktech without any implication in the firmware of Discovery board?

[KDJEM.1]

Hello @SVerm.3 ,



I think your initial question is answer. So, to give better visibility on the answered topics, please click on Accept as Solution on the reply which answered your question.

This is new question is shared under LCD Feasibiliy in STM32F746 Discovery Board - STMicroelectronics Community



Thank you.

Kaouthar
