i2c Error 4

[SGian.1]

Hi there !

i work with DS2482 I2c to one wire . After i send the command reset i need the read the status register until i find one bit at 1, so i wrote my routine in this way



static uint8_t DS2482_Status_Register(void)
{
	uint8_t register_status=0;
	uint8_t data=0;

	while(register_status !=0x02 )
	{
		Master_Recive_Data(DS2482_Addr, &data, 1);
//		HAL_Delay(1);
		 dato= data;
		register_status = data;
		register_status &= 0x02;
	}

	if(register_status != 0x02)
	{
		return HAL_TIMEOUT;
	}

	return HAL_OK;

}



when i run the program i recive error 4 from i2C form

void HAL_I2C_ErrorCallback(I2C_HandleTypeDef *hi2c)
{
}



But if in the code below i put one delay of 1ms everything work perfect . So there is one "elegant" way to resolve the problem  ? or there are other solution  ?

Thanks a lot

Sergio

[Andrew Neil]

---

@SGian.1 wrote:

when i run the program i recive error 4 from i2C

---

Have you looked-up what error 4 means ?

[SGian.1]

Yep , ACK failure from the device . i use two  4,7K pullup resistor and when i send a data i use HAL_I2C_Mem_Read_IT function and i wait until i setup one bit inside this other function

void HAL_I2C_MasterRxCpltCallback(I2C_HandleTypeDef *hi2c). And please correct me if i'm wrong but i think when this function is call wanna mean the bus is ready for receive other data



[Andrew Neil]

Are you sure you are using the correct slave address?

In particular, be sure that you are correctly presenting it in the byte parameter...



[Karl Yamashita]

---

But if in the code below i put one delay of 1ms everything work perfect . So there is one "elegant" way to resolve the problem  ? or there are other solution  ?

---

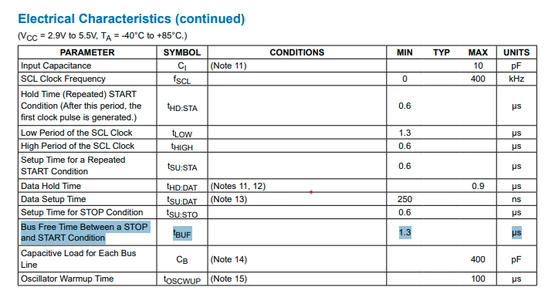

It's possible that you're not meeting the tBUF requirements so the 1ms delay probably allows the slave to ACK?





1. Configure a timer to interrupt at a periodic time and in the timer callback, call DS2482_Status_Register.
2. In HAL_I2C_MasterRxCpltCallback you can check to see if the correct I2C peripheral caused the interrupt and set a flag.

3. In main while loop you can check for the flag and then test data for 0x02. From there you can continue to what you need to do.



// configure timer to interrupt at needed time period and in the interrupt callback, call this function
void DS2482_Status_Register(void)
{
	if(HAL_I2C_Mem_Read_IT({arguments}) != HAL_OK)
	{
		Error_Handler();
	}
}

volatile bool dataRdy = {0};

void HAL_I2C_MasterRxCpltCallback(I2C_HandleTypeDef *hi2c)
{
	if(hi2c == &hi2c1)
	{
		dataRdy = true;
	}
}

int main(void)
{
	// HAL stuff

	while(1)
	{
		if(dataRdy)
		{
			dataRdy = false;

			if(data == 0x2)
			{
				// do something
			}

		}

		// other code
	}
}



[SGian.1]

now i try

Thank you guys
