STM32G4 Timer Break Interrupt Callback Function

[batuhanky]

Hi All,

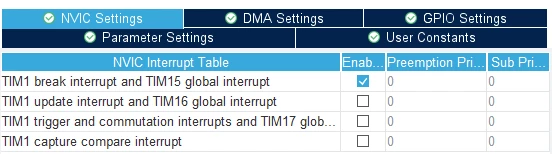

I'm using STM32G4 with TIM1 for motor control. The BKIN hardware protection works correctly - when I pull the BKIN pin (PB10) low, the motor stops, and when high, it runs again with AOE enabled. However, the break interrupt never fires and HAL_TIMEx_BreakCallback is never called. I've verified that TIM1_BRK_TIM15_IRQHandler exists in stm32g4xx_it.c, NVIC is enabled. The break flag never gets set even though BKIN is functioning. What could prevent the break flag from being set while the hardware break feature still works?

I want to print diagnostic using BKIN callback routing but it doesn't work.

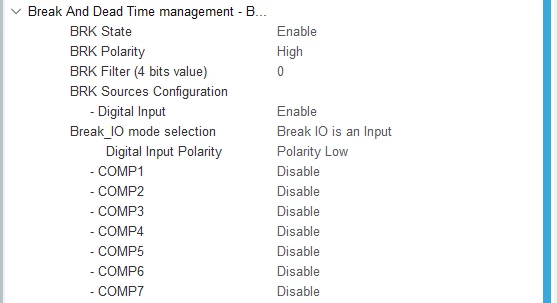

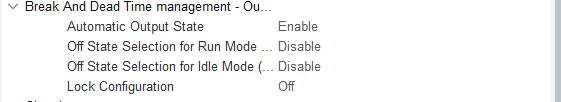

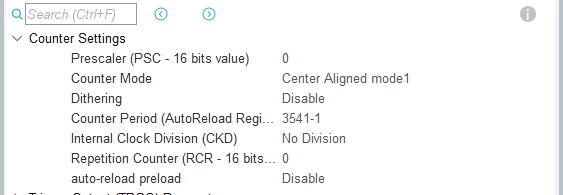

I've attached IOC timer configurations.

Best regards

[TDK]

Does a breakpoint in TIM1_BRK_TIM15_IRQHandler ever get hit?



[batuhanky]

Hey @TDK

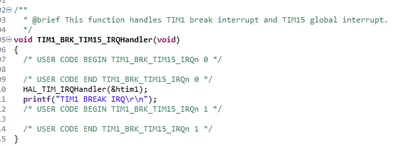

No it doesn't get hit but there is an interrupt callback.

When I ground the BKIN pin, the motor stops but printf does not work.



[Saket_Om]

Hello @batuhanky

Could you please check if the break interrupt (BIE) is enabled in the TIMx_DIER register?

[batuhanky]

Hey @Saket_Om ,

No, BIE is not set, but when I manually enable the BIE bit, the callback works. What could be the reason for this?

TIM1->DIER |= (1 << 7);



[Saket_Om]

Hello @batuhanky

The API that you are using to start the timer is not enabling the break interrupt.

Try to use HAL_TIMEx_PWMN_Start_IT as suggested by @TDK.

[TDK]

Use HAL_TIMEx_PWMN_Start_IT to start the channel

This would be much easier to diagnose if you showed your full code.
