undefined reference to `ExitRun0Mode'

[carloV]

Hi,

I've installed the CubeIDe rel 2.0.0 and the CubeMX rel 6.16.0; when I build my project this error appears: undefined reference to `ExitRun0Mode'.



May you help me ?



Thank you, CarloV

[TDK]

Here is a definition of that file. Maybe it's the one you want.

https://github.com/STMicroelectronics/STM32CubeH7/blob/46631c3dab1edbe412c613add345bfbf1d2c5e2e/Projects/STM32H7B3I-DK/Examples/BSP/Src/system_stm32h7xx.c#L359



Would be better for you to provide your IOC or explain how you project was created. If the function is there, it should be found.

[carloV]

Thank you, I build my project using the 1.9.0 CubeIde release, including the IOC file, and worked good. The issue appeared after the 1.2.0, it requires the CubeMX to build the IOC; I imported the old project.



CarloV

[mƎALLEm]

Hello,

ExitRun0Mode() was introduced (if I'm not mistaken) in V1.7.0. So please update your CubeHAL repositry folder to the latest version.



[carloV]

sorry....I built with the 1.19.0 release...



CarloV

[carloV]

I checked my "system_stm32h7xx.c" file and I haven't find the "ExitRun0Mode" function...



CarloV

[mƎALLEm]

---

@carloV wrote:

I checked my "system_stm32h7xx.c" file and I haven't find the "ExitRun0Mode" function...



CarloV

---

Try to remove system_stm32h7xx.c and re-generate the code again in CubeMx. But be sure you are pointing to the latest CubeH7 version:



[mƎALLEm]

And please remove HAL_PWREx_ConfigSupply() if you have its call in SystemClock_Config(). Setting the power in SystemClock_Config() is an old implementation.

[TDK]

If I open your IOC and generate code and compile the project, it (mostly) works.

Except that you have do not generate main checked, so it doesn't generate that.



If I add main(), it compiles.

Finished building target: SpectrumAna.elf

arm-none-eabi-size SpectrumAna.elf
arm-none-eabi-objdump -h -S SpectrumAna.elf > "SpectrumAna.list"
 text	 data	 bss	 dec	 hex	filename
 9396	 8	 2112	 11516	 2cfc	SpectrumAna.elf
Finished building: default.size.stdout

Finished building: SpectrumAna.list

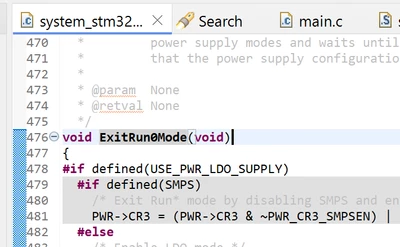

ExitRun0Mode is generated and present in system_stm32*.c





I wonder if you are not regenerating code.
