LTDC worked without FreeRTOS; not with

[b1aze]

HI all i have been working with LTDC to drive an external RGB parallel display . i made it working by placing the framebuffer inside internal RAM . i got output with good update speed. but when i try to incoperate  FREERTOS with this project the output is gone . any one encountered such issues like this , any solution for this now? ;)

[Andrew Neil]

An RTOS (any RTOS) is not really something that you can just bolt-on to an existing project - it is a fundamental change to the project architecture.

You'll need to do some debugging to find why your code is not working ...

• Are basic things like UART and LEDs still working ?
• Is your display driver getting initialised properly ?
• Is your display driver getting called at all ?
• Is your display driver getting called sufficiently often ?

[Saket_Om]

Hello @b1aze

When using FreeRTOS, it is essential to ensure that all peripheral interrupts are assigned a priority that is equal to or lower than (i.e., numerically higher than) the value specified by configMAX_SYSCALL_INTERRUPT_PRIORITY. Therefore, the priorities of the LTDC and DMA interrupts should be configured to levels that comply with this requirement to maintain system stability and proper FreeRTOS operation.

[b1aze]

Hi guys thanks for the response , right now all i know is that LTDC is being initialized , beacuse in my code

starting address of internal RAM is given to LTDC and LTDC seems to read from the RAM , before RTOS i get full display output, but after output i get this scrambled red color on the screen , so without LTDC or clock signal i wouldn't have got anything on the display. so my assumption is that something is happeing with priority timing or my framebuffer is being scrambled somehow . whats your thoughts or ideas.

[Andrew Neil]

Please see  How to insert source code - not as an image.

[b1aze]

This is from linker script

 .framebuffer (NOLOAD) :
 {
 		. = ALIGN(32);
 		KEEP(*(.framebuffer))
 		. = ALIGN(32) ;

 }>RAM

and in my code for frame buffer this

__attribute__((section(".framebuffer"),aligned(32))) uint16_t framebuffer[LCD_WIDTH * LCD_HEIGHT];
lv_color_t lvgl_buf[LCD_WIDTH * LVGL_BUF_SIZE];
lv_disp_draw_buf_t drawbuf;
lv_disp_drv_t dispdrv;

void init_lvgl(void)
{
	lv_disp_draw_buf_init(&drawbuf, lvgl_buf,lvgl_buf, LCD_WIDTH * LVGL_BUF_SIZE);
		 /* Initialize display driver */
	lv_disp_drv_init(&dispdrv);
	dispdrv.hor_res = LCD_WIDTH;
	dispdrv.ver_res = LCD_HEIGHT;
	dispdrv.flush_cb = flush_cb;
	dispdrv.draw_buf = &drawbuf;
	dispdrv.full_refresh = 0 ;
	dispdrv.direct_mode = 0 ;
	lv_disp_drv_register(&dispdrv);
}

static void flush_cb(lv_disp_drv_t*disp, const lv_area_t *area, lv_color_t* px_map)
{
	uint32_t w = (area->x2 - area->x1 + 1);
 uint32_t h = (area->y2 - area->y1 + 1);
 uint16_t *dst = framebuffer + area->y1 * disp->hor_res + area->x1;
 uint16_t *src=(uint16_t *)px_map;
 //HAL_DMA2D_Start(&hdma2d,*(src),*(dst),w,h);
 for (uint32_t y = 0; y < h; y++) {
 	//HAL_DMA2D_Start();
 memcpy(dst, src, w * sizeof(uint16_t));
 dst += disp->hor_res;
 src += w;
 }
 lv_disp_flush_ready(disp);
}

 this is it . ask if you need anything

[MM..1]

Still not  show 0x24000000 and framebuffer ... LTDC

[b1aze]

This is my linker script and i declared my framebuffer like this in main.c file

__attribute__((section(".framebuffer"),aligned(32))) uint16_t framebuffer[LCD_WIDTH * LCD_HEIGHT];
lv_color_t lvgl_buf[LCD_WIDTH * LVGL_BUF_SIZE];

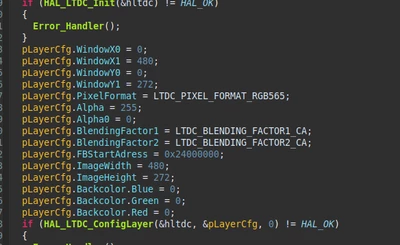

 this is it nothing else i done for frmabuffer. and inside the LTDC i gave the RAM start address

pLayerCfg.FBStartAdress = 0x24000000;





/* Entry Point */
ENTRY(Reset_Handler)

/* Highest address of the user mode stack */
_estack = ORIGIN(RAM) + LENGTH(RAM); /* end of RAM */
/* Generate a link error if heap and stack don't fit into RAM */
_Min_Heap_Size = 0x200; /* required amount of heap */
_Min_Stack_Size = 0x400; /* required amount of stack */

/* Specify the memory areas */
MEMORY
{
 ITCMRAM (xrw) : ORIGIN = 0x00000000, LENGTH = 64K
 FLASH (rx) : ORIGIN = 0x08000000, LENGTH = 2048K
 DTCMRAM1 (xrw) : ORIGIN = 0x20000000, LENGTH = 64K
 DTCMRAM2 (xrw) : ORIGIN = 0x20010000, LENGTH = 64K
 RAM (xrw) : ORIGIN = 0x24000000, LENGTH = 1024K
 RAM_CD (xrw) : ORIGIN = 0x30000000, LENGTH = 128K
 RAM_SRD (xrw) : ORIGIN = 0x38000000, LENGTH = 32K
}

/* Define output sections */
SECTIONS
{
 /* The startup code goes first into FLASH */
 .framebuffer (NOLOAD) :
 {
 		. = ALIGN(32);
 		KEEP(*(.framebuffer))
 		. = ALIGN(32) ;

 }>RAM

 .isr_vector :
 {
 . = ALIGN(4);
 KEEP(*(.isr_vector)) /* Startup code */
 . = ALIGN(4);
 } >FLASH

 /* The program code and other data goes into FLASH */
 .text :
 {
 . = ALIGN(4);
 *(.text) /* .text sections (code) */
 *(.text*) /* .text* sections (code) */
 *(.glue_7) /* glue arm to thumb code */
 *(.glue_7t) /* glue thumb to arm code */
 *(.eh_frame)

 KEEP (*(.init))
 KEEP (*(.fini))

 . = ALIGN(4);
 _etext = .; /* define a global symbols at end of code */
 } >FLASH
