MX66UW1G45GXDI00 (Octal SPI Flash) compatibility with STM32N6 XSPI?

[GBA]

Hi everyone,
Has anyone interfaced the MX66UW1G45GXDI00 (1Gbit octal SPI Flash) with the STM32N6 XSPI controller?

Any working example or experience would help.

Thanks!

[KDJEM.1]

Hello @GBA;

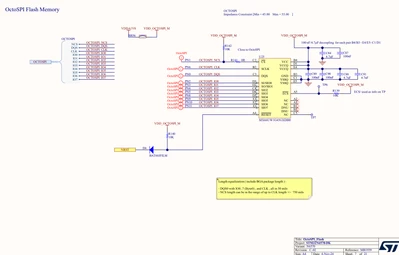

The MX66UW1G45GXDI00 is compatible with STM32N6 XSPI. This memory is integrated into STM32N6570-DK board.



Two examples  with MX66UW1G45GXDI00 and STM32N6570-DK board are available in STM32CubeN6 firmware package: XSPI_NOR_AutoPolling_DTR  and XSPI_NOR_MemoryMapped_DTR you can refer to these examples.

For the memory datasheet, Macronix not providing the MX66UW1G45GXDI00 datasheet, they’d claimed it was controlled. I will recommend you to check with memory provider.



I hope this answer your request.

Thank you.

Kaouthar





[KDJEM.1]

Hello @GBA ;



Could you please keep the initial post (not modify the request by editing post) which is:

---

@GBA wrote:

Hi everyone,
Has anyone interfaced the Micron MT35XU02GCBA2G12-0AUT(2 Gbit xccela Flash) with the STM32N6 XSPI controller?

Any working example or experience would help.

Thanks!

---

If you have another question, I recommend you to create a new post.

Thank you .

Kaouthar



[KDJEM.1]

Hello @GBA ;



Is your original question is answered?

If yes, please click on Accept as Solution on the reply which answered your question.



Thank you.

Kaouthar
