NO FMC_SDNCAS alternate function info in

[sheng yang]

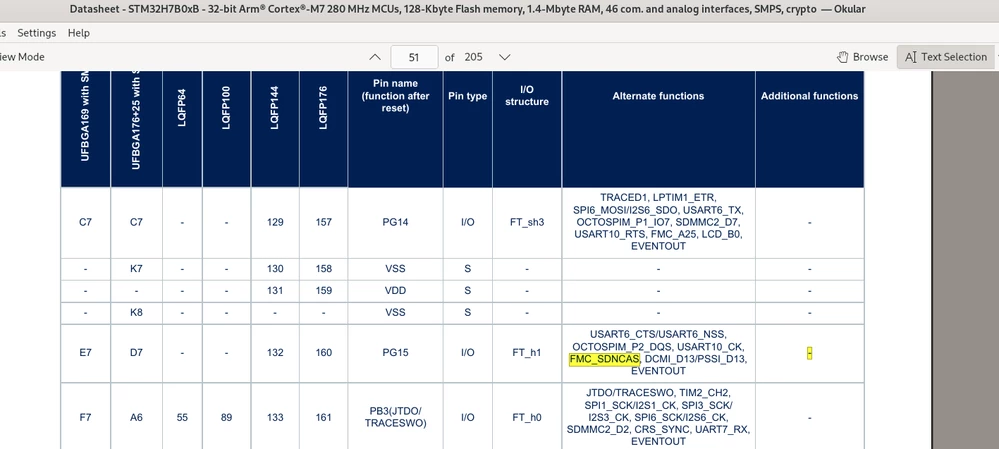

I want to design a baord with stm32h7b0zbt6 with extranal sdram chip W9825G6KH-6. I get PG15 with FMC_SDNCAS alt func in datasheet as below:

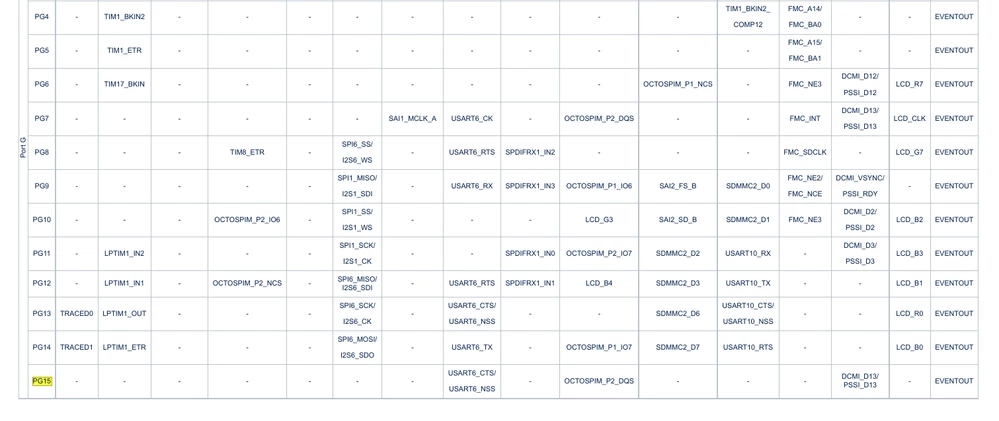

But when I looked the PG15 alt func config I get as below info, I could not found an alternate function number for FMC_SDNCAS here ?? why they are not consistent ?



[mƎALLEm]

Hello,

Most probably it's a miss in table 14. By analogy with STM32H743 PG15 has FMC_SDNCAS alternate function.

The internal ticket 178406 has been submitted to confirm and fix the issue.

I will keep you informed for any feedback.



[sheng yang]

Tks ,waiting for your reply.

[mƎALLEm]

Update: issue confirmed.

The internal ticket 178406 has been summitted to fix this issue.

Thank you.

[mƎALLEm]

Hello,

Here the full list of PG port AF12 mapping :

PG0 - AF12 - FMC_A10
PG1 - AF12 - FMC_A11
PG2 - AF12 - FMC_A12
PG3 - AF12 - FMC_A13
PG4 - AF12 - FMC_A14/FMC_BA0
PG5 - AF12 - FMC_A15/FMC_BA1
PG6 - AF12 - FMC_NE3
PG7 - AF12 - FMC_INT
PG8 - AF12 - FMC_SDCLK
PG9 - AF12 - FMC_NE2/FMC_NCE
PG10 - AF12 - FMC_NE3
PG11 - AF12 - N/A
PG12 - AF12 - FMC_NE4
PG13 - AF12 - FMC_A24
PG14 - AF12 - FMC_A25
PG15 - AF12 - FMC_NCAS

The document will be updated in the next revisions.
