Nucleo-h563zi: interface W25N01GV external flash memory

i am using nucleo-h563zi and want to communicate a W25N01GV is there any code avaible for communication for using external flash memory

Technical Moderator

Hello @Aryan_vats_15 and welcome to the community;

You can use the OCTOSPI interface to connect the external memory.

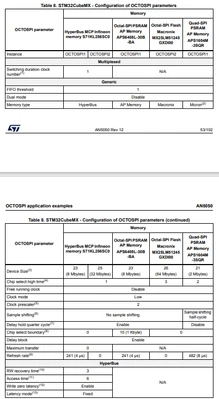

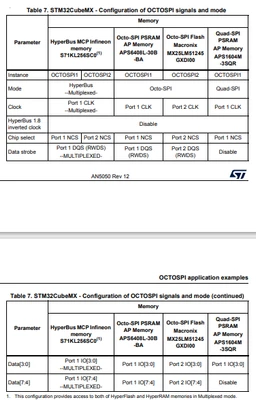

I recommend you to refer to AN5050 precisely section 7 OCTOSPI application examples and get inspired to configure W25N01GV.

Thank you.

Kaouthar

To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.

Guru

The W25N01GV is a NAND FLASH it operates on Blocks rather than more random read/write, execute-in-place permitted by NOR FLASH ST more commonly uses.

You'll HAVE to READ the Data Sheet and code your own, perhaps see if anyone wants to do your job on Fiverr

You might look a STM32 base Flight Controller / Black Box implementations, as I think some of these have used the W25NV01GV
