Query about data coming out of STM32N6570-DK MCU

[chanchal94]

I am using ADC + DMA + USART1 + Timer in STM32 IDE in a setup consisting of:

Motor → Sensors → MCU (STM32N6) → PC

I am capturing the signal received at the serial port using NanoEdge AI. I have shared screenshots of:

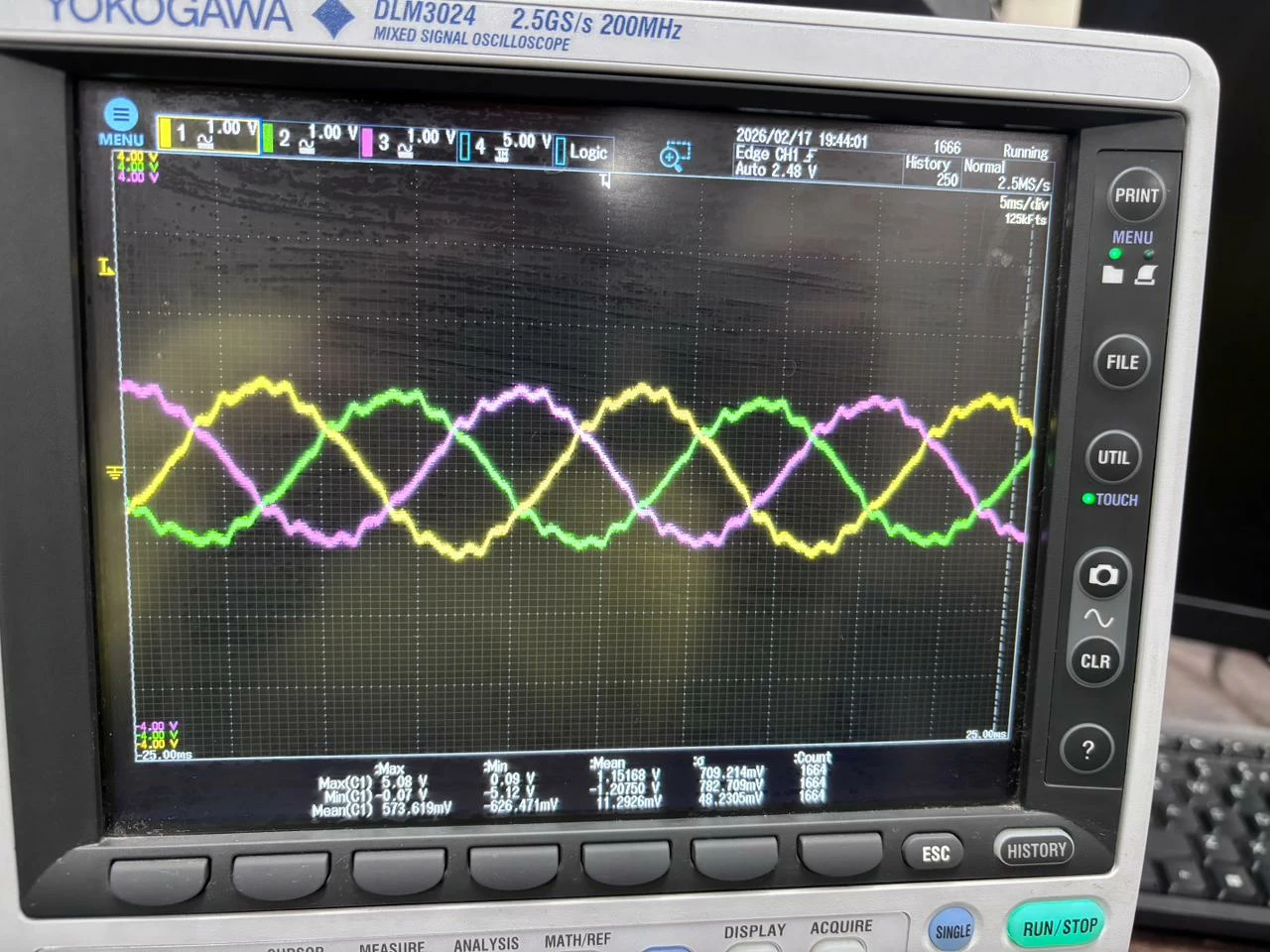

• The actual current waveform observed on the oscilloscope

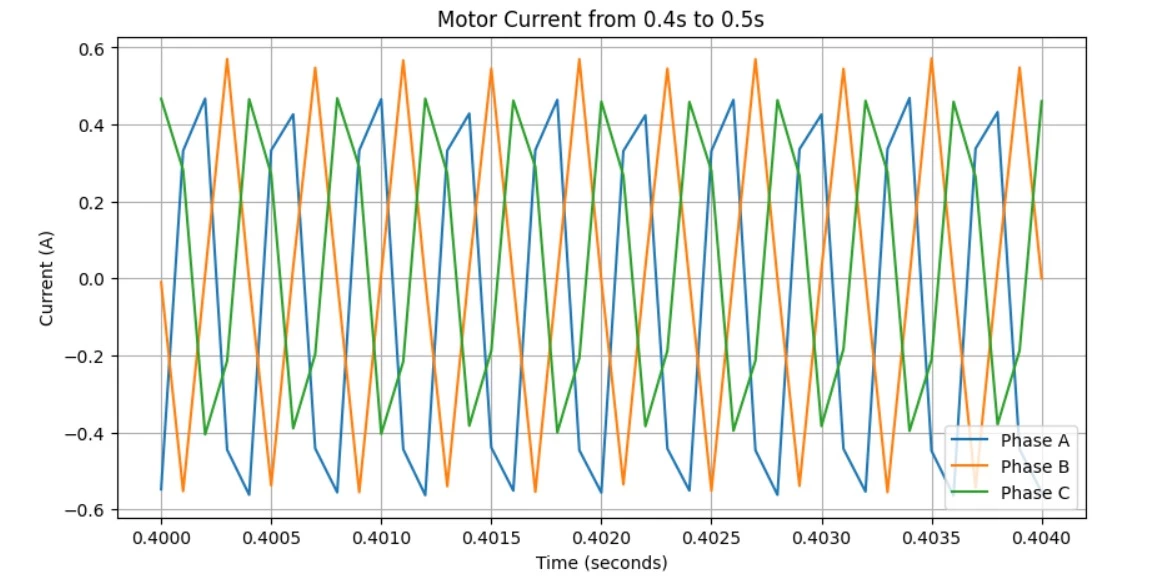

• The data received through the STM32N6 MCU

My doubt is:

Is there anything inside the MCU or ADC that could suppress or distort the natural sinusoidal shape of the current waveform?

Note:

• I have converted ADC values to actual current values using a 3.3V reference.

• I have removed the sensor bias.

• I have properly accounted for sensor gain.

I would like to confirm whether the MCU/ADC processing could be affecting the waveform shape

---

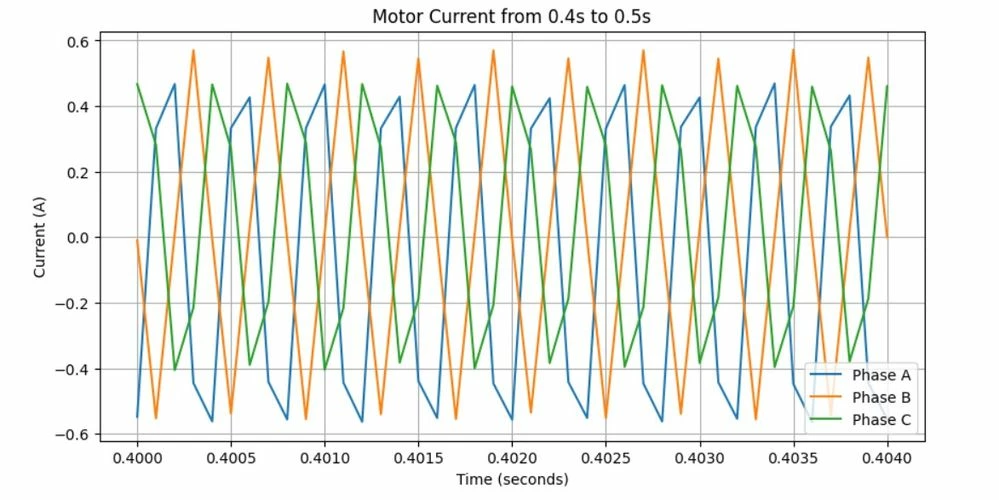

Edited to place the images in the post:



[Andrew Neil]

Please use your scope's trace capture facility - it will give much better results than photographing the screen!



---

@chanchal94 wrote:

Is there anything inside the MCU or ADC that could suppress or distort the natural sinusoidal shape of the current waveform?

---

You need to set an appropriate sample rate!

Your graph shows that you are only sampling about once in each half-cycle ...

[chanchal94]

Thank you! I got the solution :)

[LCE]

@chanchal94 we're always happy if the solution is shared for the next person running across the same problem.



P.S.: ADC data over UART: people often forget / oversee that the UART's baud rate is not high enough for ADC data.

[chanchal94]

My baud rate was okay, it was the timer issue, I checked it again as @Andrew Neil pointed out about sampling rate, I found out baud rate+ timer settings should be correct for this. My timer setting was a bit distorted.

Your MCU and ADC won’t intentionally “suppress” a sinusoid, but several practical factors in the STM32 signal chain can distort the waveform you reconstruct:

1. Sampling rate vs signal frequency
If the ADC sampling frequency isn’t at least ~10× your motor current frequency, you may see aliasing or flattened peaks. Timer-triggered ADC is good, but verify the effective sampling rate after DMA and interrupt overhead.

2. ADC input bandwidth & sampling time
Too short ADC sampling time with a high-impedance sensor output can cause incomplete capacitor charging, leading to rounded or attenuated peaks. Increasing sampling cycles often improves waveform fidelity.

3. Quantization & resolution
Finite ADC resolution (e.g., 12–16 bit) introduces stair-stepping. After bias removal and scaling, this can look like distortion, especially near zero crossings.

4. Analog front-end limitations
Sensor amplifier bandwidth, filtering, or saturation is a common cause. If the oscilloscope probe point differs from the ADC input pin, any RC filter or protection network between them can reshape the signal.

5. DMA/USART throughput
The ADC data itself isn’t altered by DMA, but downsampling, buffer overruns, or PC-side reconstruction can visually distort the sinusoid.

A useful check is probing the signal directly at the MCU ADC pin and logging raw ADC counts before scaling to confirm whether distortion originates in hardware or processing.
