STM32H5E4/E5/F4/F5 with PLAY: boards availability?

[waclawek.jan]

A new STM32 sub-family (as part of the 'H5 family) came out. They have everything but the kitchen sink. As far as I can tell, 'H5E4 and 'H5E5 differ only in that the higher one has USB-HS with PHY (the 'H5Fx are crypto-enabled variants, as usually)

What's new is also the PLAY peripheral, which is a small programmable logic element, fully documented and configurable through registers. It's based around 16 simple logic elements (4-input LUT and an optional register), complete with an extensive input multiplexer matrix+filter, interconnected to a variety of peripherals (timers, DMA, ADC...) and also GPIO.

I wonder, if there's a Disco around...

JW



[Andrew Neil]

I don't see the PLAY mentioned on the STM32H5E4/5F4 or STM32H5E5/5F5 pages ?



PS:

But I do see it in DS14972 (STM32H5Fxxx) and RM0517 (STM32H5E4/5F4 and STM32H5E5/5F5), both at Rev 1.

Haven't checked any others yet ...

[mƎALLEm]

---

@Andrew Neil wrote:

I don't see the PLAY mentioned on the STM32H5E4/5F4 or STM32H5E5/5F5 pages ?



 Will be escalated.

[LCE]

Thanks for the info, very interesting.

Just checking the RM.

Could be a few more gates and FFs for me to replace a Spartan 6 ... :D

But going into the right direction for my taste!

[mƎALLEm]

Hello,

---

@waclawek.jan wrote:

I wonder, if there's a Disco around...

JW

---

There will be one Discovery board and one NUCLEO board ;).. Stay tuned.

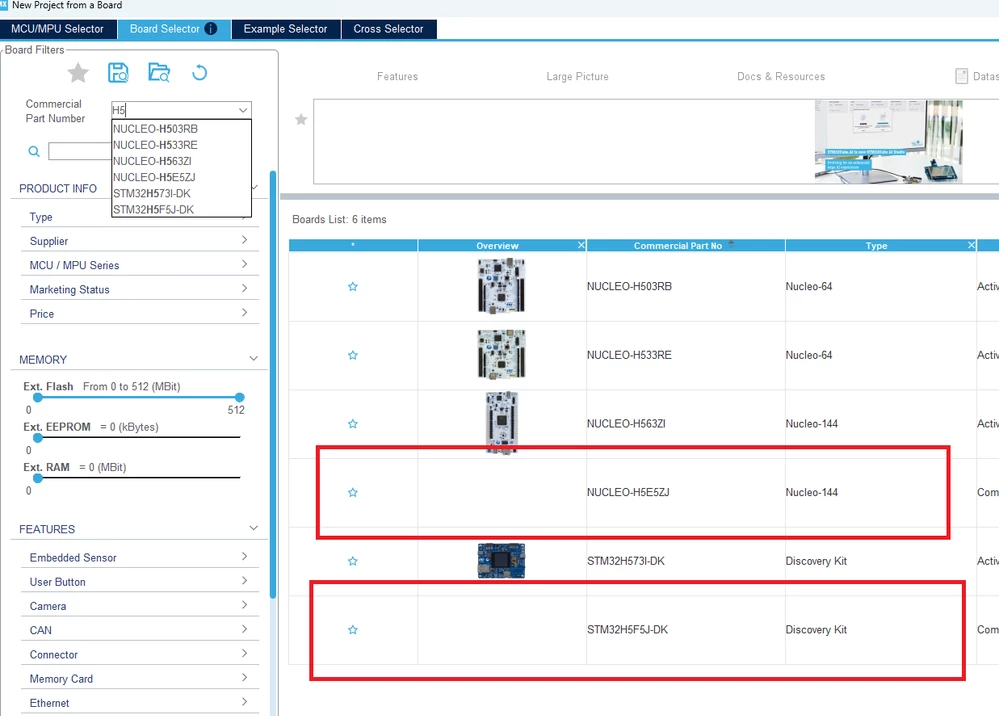

You can use the latest version of CubeMx and use the board selector:

[Andrew Neil]

---

@mƎALLEm wrote:

There will be a Discovery and a NUCLEO boards ;).. Stay tuned.

---

And an App Note ... ?

[mƎALLEm]

---

@Andrew Neil wrote:

---

@mƎALLEm wrote:

There will be a Discovery and a NUCLEO boards ;).. Stay tuned.

---

And an App Note ... ?

---

Of course like usual for any new STM32 series.. and a dedicated application note will be also available for PLAY.

[unsigned_char_array]

Is there a simulator for this? I'd love to play with it without hardware.
I'd love to try to generate custom waveforms, hardware acceleration for certain operators, custom communication peripherals, etc.

[Andrew Neil]

It seems fairly simple - not sure it would warrant a simulator ... ?

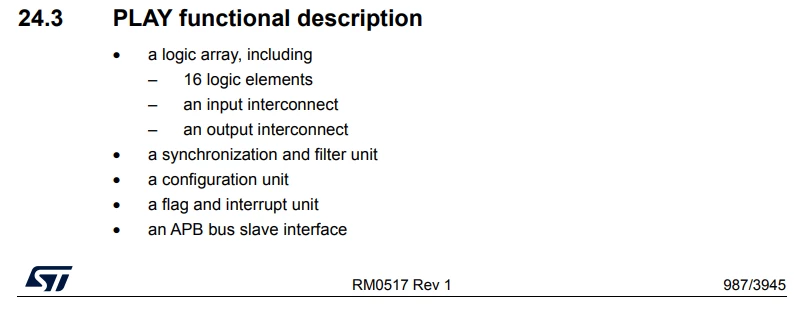

https://www.st.com/resource/en/reference_manual/rm0517-stm32h5e45f4-and-stm32h5e55f5-armbased-32bit-mcus-stmicroelectronics.pdf#page=987

[unsigned_char_array]

---

@Andrew Neil wrote:

It seems fairly simple - not sure it would warrant a simulator ... ?

---

For unit tests. Feed it test signals and see if you get the desired output.
A simulator would not be hard to make, but if it already exists I wouldn't want to make one.

[mƎALLEm]

The wiki Getting started with Programmable Logic ArraY (PLAY) is now released.



[Andrew Neil]

The URL is still case-sensitive:

https://wiki.st.com/stm32mcu/wiki/Getting_started_with_Programmable_Logic_ArraY - works

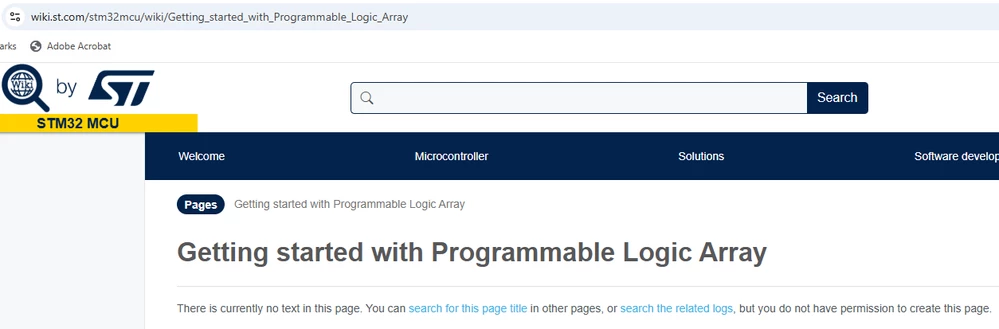

https://wiki.st.com/stm32mcu/wiki/Getting_started_with_Programmable_Logic_Array (lowercase 'y' at the end) gives this:

[LCE]

Just checked Getting started with Programmable Logic ArraY (PLAY) - stm32mcu .

Then had a look at Logisim and watched the video (linked at the bottom of the "getting started" page) which showed me quite a lot of what and how PLAY can do:

https://youtu.be/l89M-4IaA8s?si=bZPp2lXlcI_nj29Z



Well, not bad for a start, still I'd like to have even more gates and FFs... :D
