Question

STM32L051K8U6 VSSA

  • October 14, 2025
  • 1 reply
  • 462 views

Which pin is the VSSA of STM32L051K8U6?

1 reply

TDK
TDK
Super User
October 14, 2025

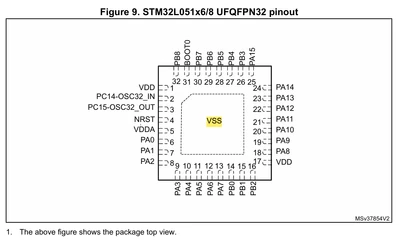

The UFQFPN32 package doesn't have a dedicated VSSA pin. The VSSA pin is double bonded to the VSS pin internally which is connected to the exposed pad.




"If you feel a post has answered your question, please click ""Accept as Solution""."
