STM32L433RCT VDDUSB and BOOT0 pin for firmware updates via USB

  • June 30, 2025
  • 2 replies
  • 652 views

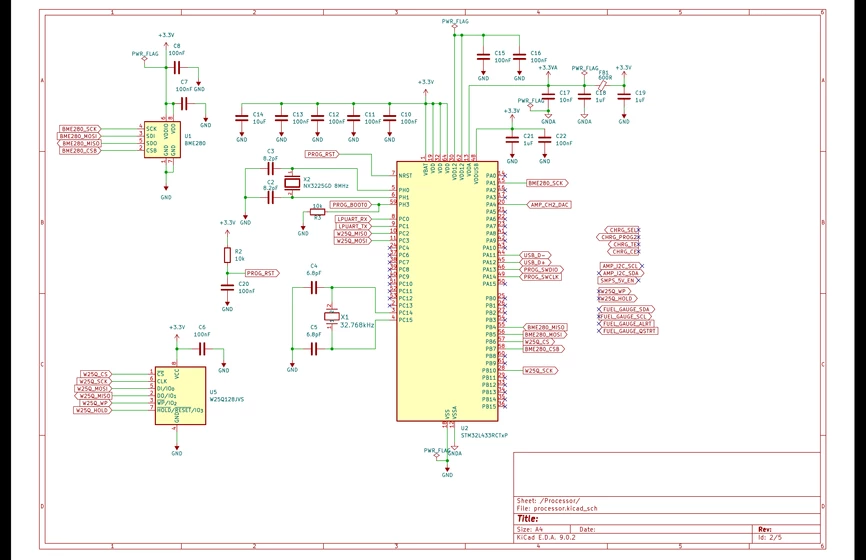

I am using the NUCLEO-L433RC-P development board and in the process of designing my own PCB.

I would like to be able to update firmware via USB, but need to make sure my PCB design allows for this.

Currently I have VDDUSB connected to 3.3V, but thinking this is now incorrect.

The VDDUSB pin is not rated to 5V, so I can't connect the 5V from the USB-C connector to the VDDUSB pin.

Presumably the VDDUSB is used to indicate to the MCU that the USB cable is connected ?  Is VDDUSB used as a signal or for power ?

Should I just use a linear regulator to convert the USB 5V to 3.3V for the VDDUSB pin ?

Also, the BOOT0 pin has to be pulled high to put the STM32 into bootloader mode.

Can BOOT0 be connected to a pin on the USB-C connector ?

Otherwise I would need an external connector to pull up the BOOT0 pin which does not seem user friendly.







2 replies

TDK
Super User
June 30, 2025

Follow the hardware design guide for this chip family:

https://www.st.com/resource/en/application_note/an4555-getting-started-with-stm32l4-series-and-stm32l4-series-hardware-development-stmicroelectronics.pdf


Since VDD = 3.3 V in your design, just use that, as you have.



If your device is bus-powered, no need to check for VBUS voltage. Otherwise, you need to keep USB uninitialized if VBUS is not present.



BOOT0 cannot be connected to the USB-C connector in any functionally useful manner.

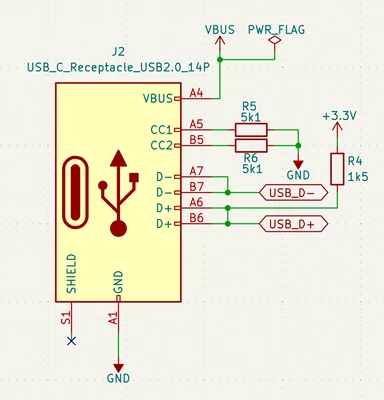

The pullup on D+ is not necessary and could cause problems.



If USB is only used for firmware updates, jump to the system bootloader if VBUS is detected.

https://community.st.com/t5/stm32-mcus/how-to-jump-to-system-bootloader-from-application-code-on-stm32/ta-p/49424



"If you feel a post has answered your question, please click ""Accept as Solution""."
freeflyerAuthor
Senior II
July 1, 2025

Thanks TDK

My device is not USB powered, it's battery powered.

USB will only be used for two things:

1. Charging the battery

2. Flashing new firmware

Does this mean I have to take 5V from the USB-C and use a linear regulator to drop it to 3.3V for the VDDUSB pin ?

TDK
Super User
July 1, 2025

I would use the 3.3 V rail you already have on the board, as you have done.

You will, however, need to monitor VBUS.

"If you feel a post has answered your question, please click ""Accept as Solution""."
Tesla DeLorean
Guru
July 2, 2025

>>Presumably the VDDUSB is used to indicate to the MCU that the USB cable is connected ? Is VDDUSB used as a signal or for power ?



It's to power the D+/D- pin driver and keep USB Compliance. It allows the rest of the chip to use a 1.8V supply, and have a separate 3.3V for the USB pins. Or the whole thing can run at 3.3V

I think there are separate pull-up/pull-down on the D+/D- pins, check the Data Sheet.
