STM32L433VCT6 SAI connection to ML22530TB (ROHM)

  • September 26, 2025
  • 2 replies
  • 250 views

I want to connect the STM32L433VCT6 to the ML22530TB (ROHM) using SAI communication.
Where should I connect the ML22530TB's LRCLK, BCLK, SAI_IN, and SAI_OUT pins on the STM32L433VCT?

Best answer by KDJEM.1

Hello @YISHIHARA ;



I advise you to refer to reference manual "Table 235. SAI input/output pins" for pin descriptions.


I hope this help you.

Thank you for your contribution in STCommunity.



Kaouthar



2 replies

AScha.3
AScha.3
Super User
September 26, 2025

Just set the SAI in Cube and the mode you want.

You see the pins and pin functions then.

"If you feel a post has answered your question, please click ""Accept as Solution""."
KDJEM.1
KDJEM.1Best answer
Technical Moderator
September 26, 2025

Hello @YISHIHARA ;

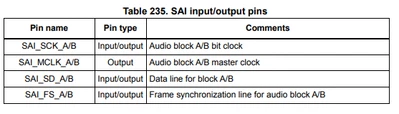

I advise you to refer to reference manual "Table 235. SAI input/output pins" for pin descriptions.


I hope this help you.

Thank you for your contribution in STCommunity.



Kaouthar
