STM32L433VCT6 SAI connection to TLV320DAC3100

[YISHIHARA]

I want to connect the STM32L433VCT6 to the TLV320DAC3100 using SAI communication.
Where should I connect the TLV320DAC3100's MCLK, BCLK, WCLK, and DIN pins on the STM32L433VCT?

[waclawek.jan]

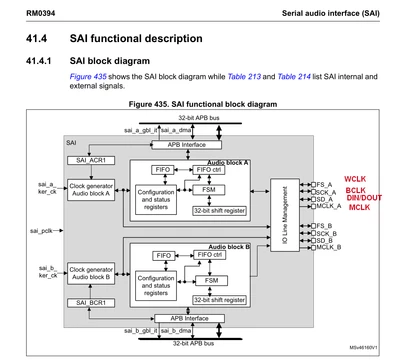

MCLK -- Master Clock

WCLK = FS = LRCK -- Word Clock = Frame Select = Left-Right Clock

BCLK = SCK -- Bit Clock = Serial Clock

DIN/DOUT = SD -- Data In/Out = Serial Data

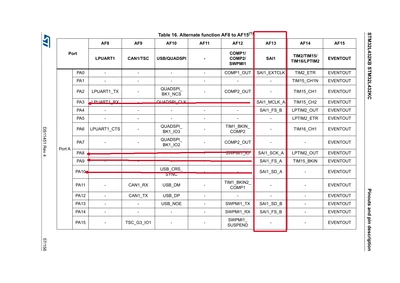

Then, in the datasheet, you'll find to which pins are these signals connected, for the selected SAI's A or B portion (example is from a different STM32 than yours):

JW

[YISHIHARA]

Thank you for your reply.
I understand.
I'll check it right away.
