STM32U575 - available pins for SPI / QSPI

[HA2375-]

@Issamos

Am planning to Quad SPI, which port we can use, i cannot able to find the data sheet below listed pins can use
Controller -STM32U575VIT6 (LQFP64, 10 × 10 mm)

• QSPI_CLK → PB2
• QSPI_NCS → PB6
• QSPI_IO0 → PD11
• QSPI_IO1 → PD12
• QSPI_IO2 → PE2
• QSPI_IO3 → PE3
•

  Pls suggest the pins details

[Issamos]

Hello @HA2375-

The easiest way to do that is to create a project using the STM32CubeMX V6.15.0 and selecting the STM32U575VIT6 as MCU for this project. After that, enable one of the available octo-spi interfaces (the one that you want to use) and set the mode to quad-spi. The GPIOd that you need will be set for this interface on the Graphic. You can use those Pins.

Ps: please don’t forget to select a best answer for your previous question.

Best Regards.

II

[HA2375-]

@Issamos  yeah sure definitely.

Can You Confirm the Pins and Ports for the QUAD SPI STM32U575VIT6 (LQFP64, 10 × 10 mm)

Am bit confused and am not get much documents about this

 thanks.

[HA2375-]

 @Issamos

 Below mentioned Controller part we are Going to use
 STM32U575RIT6
 Pls Suggest or confirm the Quad SPI and Octa spi ports list and 2 SPI Ports list.
waiting for your Replay
thanks.



[Issamos]

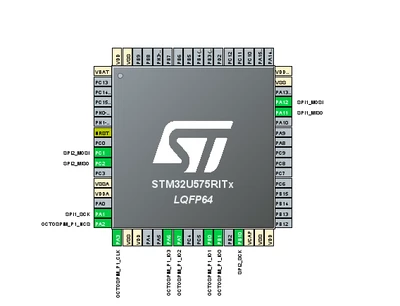

Hello @HA2375-

Those are not the correct pins. Please try the method I’ve mentioned before. It should be the easiest way.

Best Regards.

II
