STM32U5A9J-DK1 USB Device as mass storage standalone via sdmm1 emmc

[tod]

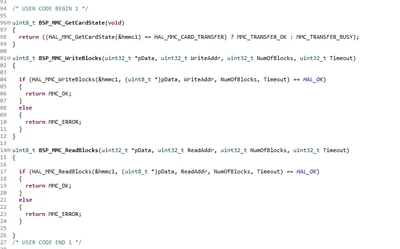

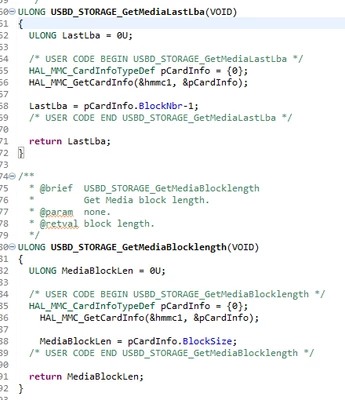

I want to use the EMMC as USB storage space, but I encountered another issue: I am trying to access the EMMC via SDMM1, and after implementing the MSC-related functions (read, write, USBD_STORAGE_GetMediaLastLba, USBD_STORAGE_GetMediaBlocklength) in ux_device_msc.c, the formatting operation on the PC side fails. The error message says: "Please insert a disk into the removable disk."

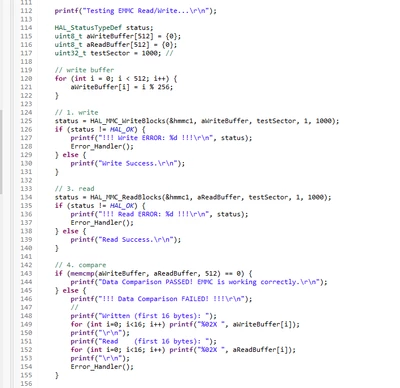

I have already verified that after initializing SDMM1, the EMMC can be accessed and read/write operations are successful.

What could be the reason for this issue?

The attached file is my project.

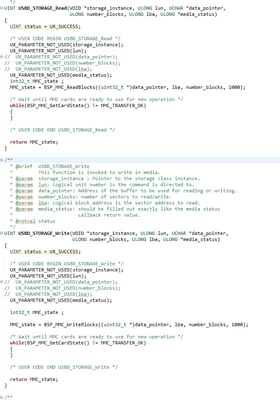

ux_device_msc.c：









[tod]

Hi @FBL

Please help me analyze.

Thank you very much!

[tod]

Hi @FBL

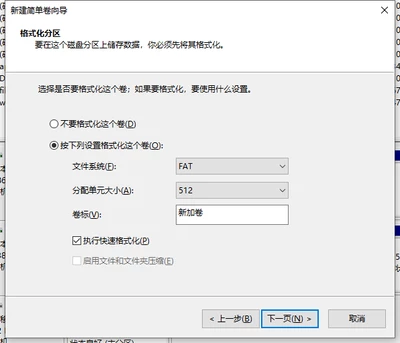

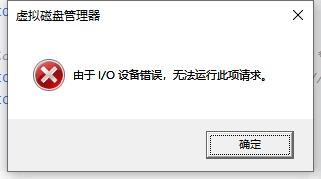

I can see an unallocated Disk 3 in Disk Management(3.64GB), but when trying to format it(FAT,size=512), I get the error: "The request could not be performed because of an I/O device error."





[FBL]

Hi @tod

I will try to replicate the issue on my end. But, first, let me suggest you check this thread. It could be helpful.

[tod]

Hi @FBL

You can use the project I provided (attachment: MSC_FIN.7z) to reproduce the issue.

I will check and try according to your suggestions and provide feedback.

Thank you very much!

[tod]

Hi @FBL

Did you reproduce the issue? Is it a problem with my configuration or a bug in the code?

[FBL]

Hi @tod

Honestly it took me sometime to realize to never use status = UX_SUCCESS; and use  status = UX_STATE_NEXT; instead !

Now, here is a working example for eMMC !



[tod]

Hi @FBL

Thank you so much for your help! With your assistance, I have successfully formatted it as well.
However, I noticed that the file read/write transfer speed is very slow (1-2 MB/s). Is it possible to improve the read/write speed by adding ThreadX or using DMA?
