What is the HSE Bypass mode?

[JK1234]

Split from this thread.

Hello @mƎALLEm ,



Thanks for the updates.

What is Bypass mode? Can you please provide guidance for this?



Thanks & Regards,

Jignesh Karena



[mƎALLEm]

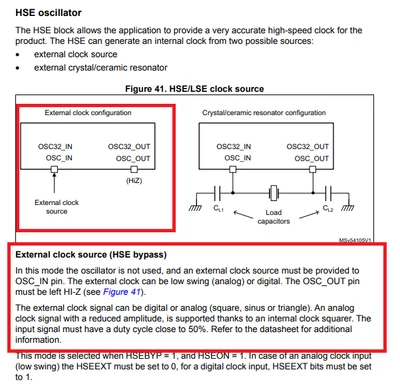

For such questiion you need to refer to the reference manual of the product: RM0477:

You need to use OSC_IN only. The crystal oscillator output connected to OSC_IN.

If you are using CubeMx, this is the configuration:

Hope it's clear now.

[JK1234]



@mƎALLEm

Ok thanks for the clarification.



Thanks & Regards,

Jignesh Karena
