How to STM32MP1-DK2 node-red ?

[ryan rusty]

I would like to use node-red on STM32MP157C-DK2 to handle datas computed and shared with IPCC by Cortex-M4.

Any advice ?

Thank you

[ryan rusty]

Here is my share of an unpretentious guide that allowed me to install nodejs and node-red locally on an STM32MP157C-DK2.

Hope this can help.

First of all, my config: SD card 16Gb with latest ecosystem release v2.0.0

• Connect with ssh root and make apt cache up to date.

root@stm32mp1:~# apt-get update

• Install nodejs and check version

root@stm32mp1:~# apt-get install nodejs
root@stm32mp1:~# node -v

• Install nodejs npm dependencies

root@stm32mp1:~# apt-get install nodejs-npm

• Install node-red

root@stm32mp1:~# npm install -g -unsafe-perm node-red

• Start node-red

root@stm32mp1:~# node-red

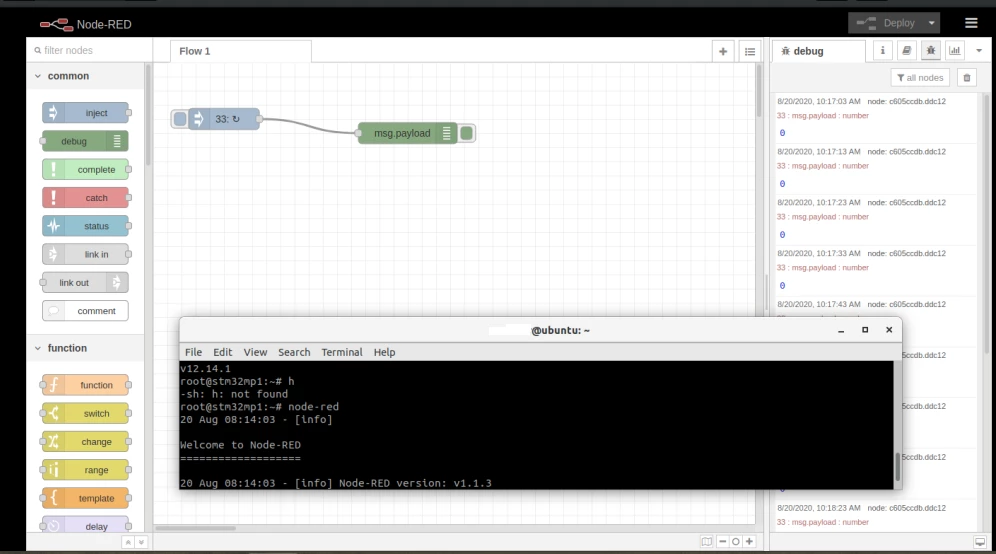

• After Starting flow success, open web browser and connect to node-red server using the ip adress of the STM32MP1 board on port 1880 (in my case http://192.168.1.33:1880)



Thank to apt support on new ecosystem release v2.0.0
