QSPIO NOR flash connected to STM32MP153CA bank1 does not work in U-Boot. sf probe 0 fails to initialize spi flash with error -22
I cannot get the QSPI NOR-Flash to work on my custom board using an STM32MP153CA + Adesto AT25SF128 NOR flash in U-BOOT. I'm working with 5-10-dunfell-mp1-21-11-17 files included on the 3.1.0 ecosystem.

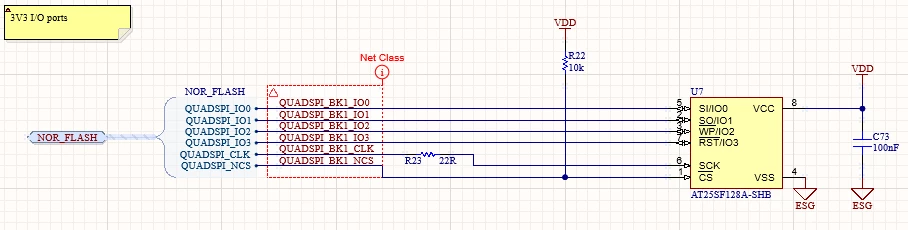

The schematic section is shown below:
Is not that different from the STM32157-ev1 implementation.
I activated MPU's internal pull-ups for IO[0..3] lines by configuring the pins as follows on the dts files:
quadspi_pins_mx: quadspi_mx-0 {
pins1 {
pinmux = <STM32_PINMUX('B', 6, AF10)>; /* QUADSPI_BK1_NCS */
bias-disable;
drive-push-pull;
slew-rate = <1>;
};
pins2 {
pinmux = <STM32_PINMUX('F', 10, AF9)>; /* QUADSPI_CLK */
bias-disable;
drive-push-pull;
slew-rate = <2>;
};
pins3 {
pinmux = <STM32_PINMUX('F', 6, AF9)>, /* QUADSPI_BK1_IO3 */
<STM32_PINMUX('F', 7, AF9)>, /* QUADSPI_BK1_IO2 */
<STM32_PINMUX('F', 8, AF10)>, /* QUADSPI_BK1_IO0 */
<STM32_PINMUX('F', 9, AF10)>; /* QUADSPI_BK1_IO1 */
bias-pull-up;
drive-push-pull;
slew-rate = <2>;
};
};I added on my tf-a and u-boot DTS files the following node:
&qspi{
pinctrl-names = "default", "sleep";
pinctrl-0 = <&quadspi_pins_mx>;
pinctrl-1 = <&quadspi_sleep_pins_mx>; //this line only in u-boot dts
reg = <0x58003000 0x1000>, <0x70000000 0x10000000>;
#address-cells = <1>;
#size-cells = <0>;
status = "okay";
flash0: AT25SF128@0 {
compatible = "jedec,spi-nor";
reg = <0>;
spi-rx-bus-width = <4>;
spi-tx-bus-width = <4>;
spi-max-frequency = <108000000>;
#address-cells = <1>;
#size-cells = <1>;
};
};I added the following entry on uboot/drivers/mtd/spi-nor-ids.c:
/* Adesto Technology */
{ INFO("AT25SF128", 0x1f8901, 0, 64 * 1024, 256, SECT_4K | SPI_NOR_DUAL_READ | SPI_NOR_QUAD_READ) },I made sure the clock was provided to the QSPI by adding the line :
CLK_QSPI_ACLK
on st,pkcs (part of rcc node).
When I tried to probe the memory IC by running the u-boot command "sf probe 0", I got the following result (log & debug data activates):
- 0 0 'spi@58003000'
- found
spi_find_chip_select: plat=ddf05310, cs=0
SPI bus:0, CS:0, Speed:40000000, Mode:3, drv name:jedec_spi_nor, dev name:spi_flash@0:0
0 0
- 0 0 'spi@58003000'
- found
spi_find_chip_select: plat=ddf05310, cs=0
spi_find_chip_select ret=0
0 -1
0 0
- -1 -1 'AT25SF128@0'
- not found
0 0
- 0 0 'pin-controller@50002000'
- found
clk_set_defaults(AT25SF128@0)
clk_set_default_parents: could not read assigned-clock-parents for ddf052b8
ofnode_read_prop: assigned-clock-rates: <not found>
stm32_qspi_set_speed: regs=58003000, speed=25000000
stm32_qspi_set_mode: regs=58003000, mode=9216 rx: quad, tx: quad
stm32_qspi_exec_op: cmd:0x9f mode:1.0.0.1 addr:0x0 len:0x6
stm32_qspi_exec_op: cmd:0x6 mode:1.0.0.1 addr:0x0 len:0x0
stm32_qspi_exec_op: cmd:0x1 mode:1.0.0.1 addr:0x0 len:0x1
stm32_qspi_exec_op: cmd:0x5 mode:1.0.0.1 addr:0x0 len:0x1
stm32_qspi_exec_op: cmd:0x35 mode:1.0.0.1 addr:0x0 len:0x1
stm32_qspi_exec_op: cmd:0x5 mode:1.0.0.1 addr:0x0 len:0x1
stm32_qspi_exec_op: cmd:0x6 mode:1.0.0.1 addr:0x0 len:0x0
stm32_qspi_exec_op: cmd:0x1 mode:1.0.0.1 addr:0x0 len:0x2
stm32_qspi_exec_op: cmd:0x5 mode:1.0.0.1 addr:0x0 len:0x1
stm32_qspi_exec_op: cmd:0x35 mode:1.0.0.1 addr:0x0 len:0x1
spi_get_bus_and_cs: Error path, created=0, device 'AT25SF128@0'
Failed to initialize SPI flash at 0:0 (error -22)
Command failed, result=1I connected the scope to the QSPI lines and got the following replies:
0x9f -> 0x1f 89 01 1f 89 01 (not sure why 6 Bytes and not 3?)
0x01 00-> 0xff
0x05-> 0x00
0x35-> 0x00
0x05-> 0x00
0x01 00 02-> 0xff ff
0x05-> 0x02
0x35-> 0x00
When checking the output from sf probe command, I noticed the SPI speed is set to 25MHz. On the QSPI node max frequency was set to 108MHz and on the defconfig to 40MHz (CONFIG_SF_DEFAULT_SPEED=40000000), so I don't know why then the clock speed was set to 25MHz.
Any idea why it's not working?
To include my NOR flash device Adesto AT25SF128A I just added the quoted line on uboot/drivers/mtd/spi-nor-ids.c, was there something else I should have done?
