STM32MP1 how to configure SAI2 B as slave (greyed out option in cubeMX)

[RZ_it]

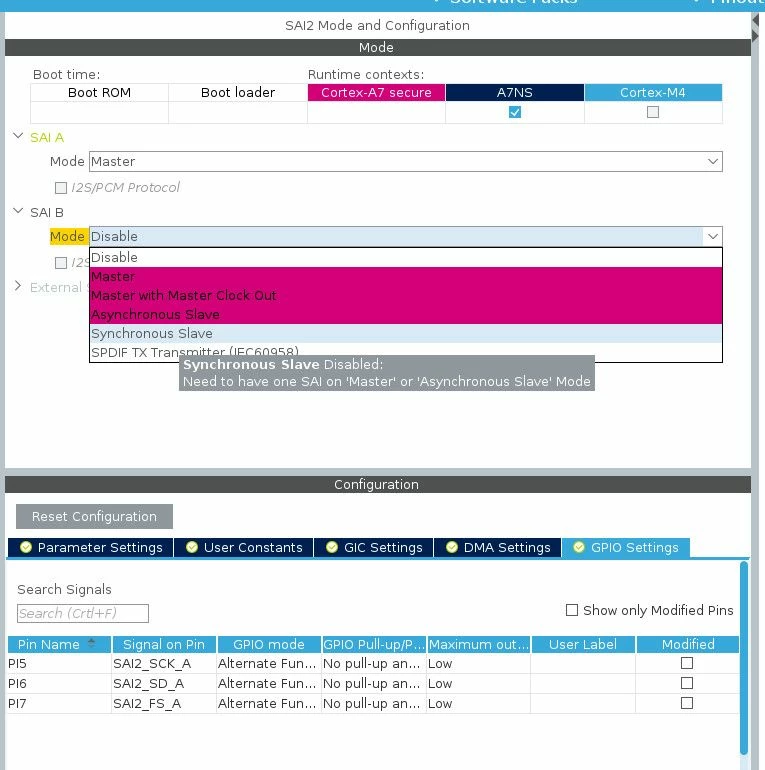

If I configure SAI 2 in cubeMX I get a greyed out option that the synchronous slave is not available unless I have one SAI as master, but I have set SAI A as master (or master with master clock out). So what am I doing wrong?

It doesn't matter if I configure it for the A7NS or the cortex-m4, the option is greyed out.

The pins are available for both the SAI2 A/B

Is this a limitation of cubeMX? Or am I missing something?

Thanks, Robert

[Khouloud OTHMAN]

Hello RZ,

Thanks for your feedback, the issue is reproduced. It will be reported internally for review and correction.

BR,

Khouloud.

[ArmandG]

Hi @RZ​ ,

As the problem seems to come from STM32CubeMX, I suggest you to mux your pins manually in the Device Tree.

This link might be useful : https://wiki.st.com/stm32mpu-ecosystem-v1/wiki/SAI_device_tree_configuration

Regards,

Armand

[RZ_it]

Thanks Armand, that was what I was looking for. RZ
