How to launch STM32Cubeprogrammer in ubuntu can you please tell me.

[MVENN.1]

i am not able to flash the image in stm32mp157c-dk2

[MVENN.1]

When i flash the image in between connection is loss

[Olivier GALLIEN]

Hi @MVENN.1​

Please follow carefully the Getting Started

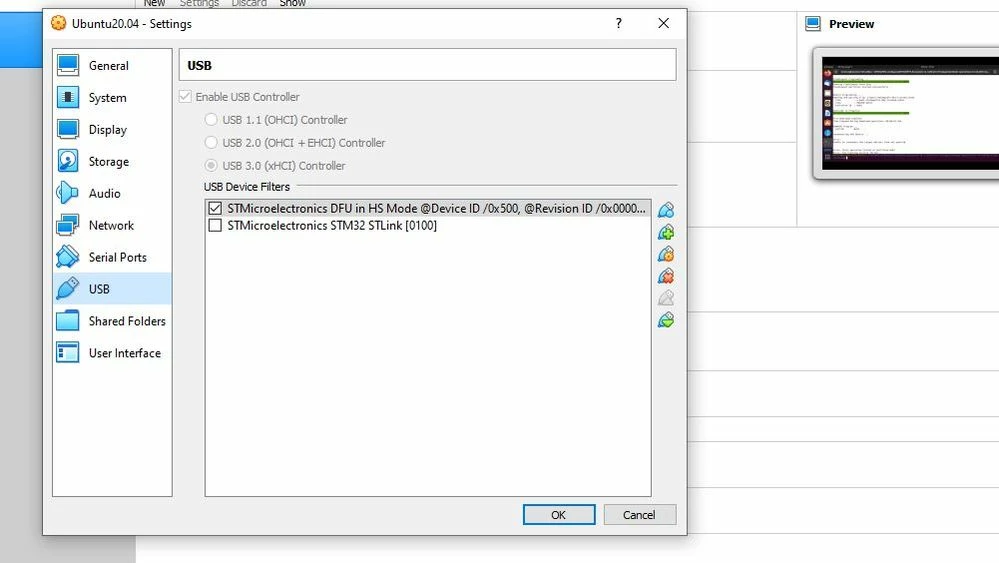

Just pay attention that when reconnecting during download the USB device is well catch by your Virtual Machine and not your host

Olivier

[MVENN.1]

look at this once please provide suggestion.

12:03:28 : STM32CubeProgrammer API v2.6.0

12:03:35 : USB speed : High Speed (480MBit/s)

12:03:35 : Manuf. ID : STMicroelectronics

12:03:35 : Product ID : DFU in HS Mode @Device ID /0x500, @Revision ID /0x0000

12:03:35 : SN : 0046003E3338510634383330

12:03:35 : FW version : 0x0110

12:03:35 : Device ID : 0x0500

12:03:41 : Read TSV File: D:\Projects\Tag\stm32MP1\stm32mp1-openstlinux\images\stm32mp1\flashlayout_st-image-weston\FlashLayout_sdcard_stm32mp157c-dk2-trusted.tsv

12:03:41 : Number of partitions: 9

12:03:59 : Start Embedded Flashing service

12:03:59 : Memory Programming ...

12:03:59 : Opening and parsing file: tf-a-stm32mp157c-dk2-trusted.stm32

12:03:59 : File : tf-a-stm32mp157c-dk2-trusted.stm32

12:03:59 : Size : 245364 Bytes

12:03:59 : Partition ID : 0x01

12:03:59 : Download in Progress:

12:04:00 : File download complete

12:04:00 : Time elapsed during download operation: 00:00:00.534

12:04:00 : RUNNING Program ...

12:04:00 : PartID: :0x01

12:04:00 : Start operation done successfully at partition 0x01

12:04:00 : Flashlayout Programming ...

12:04:00 : Running Flashlayout Partition ...

12:04:00 : Flashlayout partition started successfully

12:04:00 : Memory Programming ...

12:04:00 : Opening and parsing file: u-boot-stm32mp157c-dk2-trusted.stm32

12:04:00 : File : u-boot-stm32mp157c-dk2-trusted.stm32

12:04:00 : Size : 805514 Bytes

12:04:00 : Partition ID : 0x03

12:04:00 : Download in Progress:

12:04:01 : File download complete

12:04:01 : Time elapsed during download operation: 00:00:00.992

12:04:01 : RUNNING Program ...

12:04:01 : PartID: :0x03

12:04:01 : reconnecting the device ...

12:04:31 : Error: unable to reconnect the target device: time out expired

12:04:31 : Error: Start operation failed at partition 0x03

12:04:31 : Error: TSV flashing service failed

12:04:31 : Warning: Connection to device 0x500 is lost

12:04:32 : Disconnected from device.

Thanks

[PatrickF]

please have a look to https://community.st.com/s/article/FAQ-STM32MP1-STM32CubeProgrammer-USB-reconnect-error-at-STM32MP1-boot-device-flashing

[MVENN.1]

Hi PatrickF(ST Employee)

Thank you for reply

I am using 5V/2A power supply. And also red led Blink continue.

can you just tell the where is the mistake i did.

Thank you.

[MVENN.1]

Hi

Thank you for given this information.

I can able to flash the image on SD card in STM32CubeProgrammer in Windows.

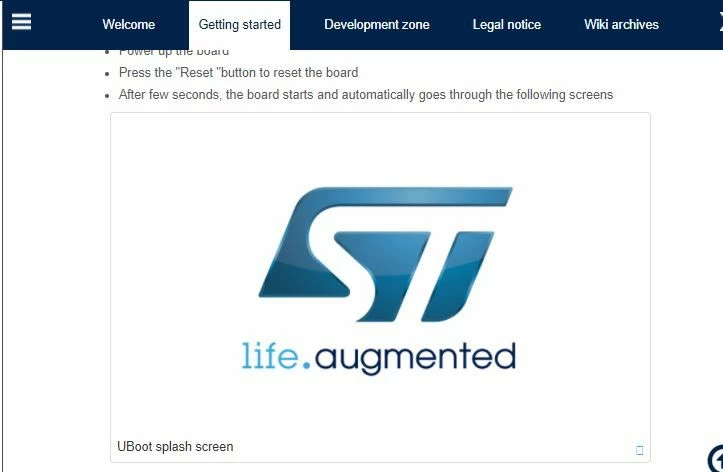

After Booting( ON position ) i am getting default images like

After that this image only showing last 10 min onwards

i am not getting this image down one .

any one can reply.

Thanks.

[Olivier GALLIEN]

Hi @MVENN.1​

Very first boot after flash may take some time because there is file system uncompressed operation.

10min looks anyway very long.

Please plug a cable to get serial console and look what happen there

Olivier

[MVENN.1]

Hi Oliver GALLIEN (ST Emplloyee )

How to plug the cable on to the PC.

Thanks.

[Olivier GALLIEN]

Hi @MVENN.1​

Which tsv did you load on target ?

Are you sure flashload completed with success ?

Olivier

[MVENN.1]

Hi Olivier GALLIEN ( ST Employee )

I am loading E:\Shared_floder_window\stm32mp1-openstlinux-5-4-dunfell-mp1-20-11-12\images\stm32mp1\flashlayout_st-image-weston\trusted

tsv file FlashLayout_sdcard_stm32mp157c-dk2-trusted.tsv

Binary path :E:\Shared_floder_window\stm32mp1-openstlinux-5-4-dunfell-mp1-20-11-12\images\stm32mp1

21:11:10 : USB speed : High Speed (480MBit/s)

21:11:10 : Manuf. ID : STMicroelectronics

21:11:10 : Product ID : DFU in HS Mode @Device ID /0x500, @Revision ID /0x0000

21:11:10 : SN : 0034001A3438510438333630

21:11:10 : FW version : 0x0110

21:11:10 : Device ID : 0x0500

21:11:24 : Start Embedded Flashing service

21:11:24 : Memory Programming ...

21:11:24 : Opening and parsing file: tf-a-stm32mp157c-dk2-serialboot.stm32

21:11:24 : File : tf-a-stm32mp157c-dk2-serialboot.stm32

21:11:24 : Size : 237896 Bytes

21:11:24 : Partition ID : 0x01

21:11:24 : Download in Progress:

21:11:25 : File download complete

21:11:25 : Time elapsed during download operation: 00:00:00.490

21:11:25 : RUNNING Program ...

21:11:25 : PartID: :0x01

21:11:25 : Start operation done successfully at partition 0x01

21:11:25 : Flashlayout Programming ...

21:11:25 : Running Flashlayout Partition ...

21:11:25 : Flashlayout partition started successfully

21:11:25 : Memory Programming ...

21:11:25 : Opening and parsing file: u-boot-stm32mp157c-dk2-trusted.stm32

21:11:26 : File : u-boot-stm32mp157c-dk2-trusted.stm32

21:11:26 : Size : 904820 Bytes

21:11:26 : Partition ID : 0x03

21:11:26 : Download in Progress:

21:11:27 : File download complete

21:11:27 : Time elapsed during download operation: 00:00:00.993

21:11:27 : RUNNING Program ...

21:11:27 : PartID: :0x03

21:11:27 : reconnecting the device ...

21:11:30 : USB speed : High Speed (480MBit/s)

21:11:30 : Manuf. ID : STMicroelectronics

21:11:30 : Product ID : USB download gadget@Device ID /0x500, @Revision ID /0x2000, @Name /STM32MP157CAC Rev.B,

21:11:30 : SN : 0034001A3438510438333630

21:11:30 : FW version : 0x0110

21:11:30 : Device ID : 0x0500

21:11:30 : Start operation done successfully at partition 0x03

21:11:30 : Memory Programming ...

21:11:30 : Opening and parsing file: tf-a-stm32mp157c-dk2-trusted.stm32

21:11:31 : File : tf-a-stm32mp157c-dk2-trusted.stm32

21:11:31 : Size : 233800 Bytes

21:11:31 : Partition ID : 0x04

21:11:31 : Download in Progress:

21:11:31 : File download complete

21:11:31 : Time elapsed during download operation: 00:00:00.163

21:11:31 : RUNNING Program ...

21:11:31 : PartID: :0x04

21:11:31 : Start operation done successfully at partition 0x04

21:11:31 : Memory Programming ...

21:11:31 : Opening and parsing file: tf-a-stm32mp157c-dk2-trusted.stm32

21:11:31 : File : tf-a-stm32mp157c-dk2-trusted.stm32

21:11:31 : Size : 233800 Bytes

21:11:31 : Partition ID : 0x05

21:11:31 : Download in Progress:

21:11:31 : File download complete

21:11:31 : Time elapsed during download operation: 00:00:00.132

21:11:31 : RUNNING Program ...

21:11:31 : PartID: :0x05

21:11:31 : Start operation done successfully at partition 0x05

21:11:31 : Memory Programming ...

21:11:31 : Opening and parsing file: u-boot-stm32mp157c-dk2-trusted.stm32

21:11:31 : File : u-boot-stm32mp157c-dk2-trusted.stm32

21:11:31 : Size : 904820 Bytes

21:11:31 : Partition ID : 0x06

21:11:31 : Download in Progress:

21:11:31 : File download complete

21:11:31 : Time elapsed during download operation: 00:00:00.483

21:11:31 : RUNNING Program ...

21:11:31 : PartID: :0x06

21:11:32 : Start operation done successfully at partition 0x06

21:11:32 : Memory Programming ...

21:11:32 : Opening and parsing file: st-image-bootfs-openstlinux-weston-stm32mp1.ext4

21:11:32 : File : st-image-bootfs-openstlinux-weston-stm32mp1.ext4

21:11:32 : Size : 64 MBytes

21:11:32 : Partition ID : 0x21

21:11:32 : Download in Progress:

21:12:19 : File download complete

21:12:19 : Time elapsed during download operation: 00:00:46.408

21:12:19 : RUNNING Program ...

21:12:19 : PartID: :0x21

21:12:19 : Start operation done successfully at partition 0x21

21:12:19 : Memory Programming ...

21:12:19 : Opening and parsing file: st-image-vendorfs-openstlinux-weston-stm32mp1.ext4

21:12:19 : File : st-image-vendorfs-openstlinux-weston-stm32mp1.ext4

21:12:19 : Size : 16 MBytes

21:12:19 : Partition ID : 0x22

21:12:19 : Download in Progress:

21:12:31 : File download complete

21:12:31 : Time elapsed during download operation: 00:00:11.629

21:12:31 : RUNNING Program ...

21:12:31 : PartID: :0x22

21:12:31 : Start operation done successfully at partition 0x22

21:12:31 : Memory Programming ...

21:12:31 : Opening and parsing file: st-image-weston-openstlinux-weston-stm32mp1.ext4

21:12:35 : File : st-image-weston-openstlinux-weston-stm32mp1.ext4

21:12:35 : Size : 407630 KBytes

21:12:35 : Partition ID : 0x23

21:12:35 : Download in Progress:

21:17:34 : File download complete

21:17:34 : Time elapsed during download operation: 00:04:58.568

21:17:34 : RUNNING Program ...

21:17:34 : PartID: :0x23

21:17:34 : Start operation done successfully at partition 0x23

21:17:34 : Memory Programming ...

21:17:34 : Opening and parsing file: st-image-userfs-openstlinux-weston-stm32mp1.ext4

21:17:37 : File : st-image-userfs-openstlinux-weston-stm32mp1.ext4

21:17:37 : Size : 128 MBytes

21:17:37 : Partition ID : 0x24

21:17:37 : Download in Progress:

21:19:12 : File download complete

21:19:12 : Time elapsed during download operation: 00:01:35.201

21:19:12 : RUNNING Program ...

21:19:12 : PartID: :0x24

21:19:12 : Start operation done successfully at partition 0x24

21:19:12 : Flashing service completed successfully

21:23:35 : Start Embedded Flashing service

21:23:35 : Flashing service completed successfully

21:24:00 : Start Embedded Flashing service

21:24:00 : Flashing service completed successfully

In console

UPLOAD ... done

Ctrl+C to exit ...

#

UPLOAD ... done

Ctrl+C to exit ...

##DOWNLOAD ... OK

Ctrl+C to exit ...

#

UPLOAD ... done

Ctrl+C to exit ...

#

UPLOAD ... done

Ctrl+C to exit ...

##################################################DOWNLOAD ... OK

Ctrl+C to exit ...

#

UPLOAD ... done

Ctrl+C to exit ...

#

UPLOAD ... done

Ctrl+C to exit ...

################Phase=END

DOWNLOAD ... OK

Ctrl+C to exit ...

#

UPLOAD ... done

Ctrl+C to exit ...

#

UPLOAD ... done

Ctrl+C to exit ...

#

UPLOAD ... done

Ctrl+C to exit ...

#

UPLOAD ... done

Ctrl+C to exit ...

this one please check it. I connected USB keyboard also Ctrl+C not taken.

Thanks.

[Olivier GALLIEN]

All looks good.

Now please share complete Linux boot log ( preferably using "Attach file "feature )

Thanks

Olivier

[MVENN.1]

Hi Olivier GALLIEN ( ST Employee )

Through windows ( STM32CubeProgrammer 2.5.0 ) only I am flashing the image.

please check it.

[MVENN.1]

Hi Olivier GALLIEN ( ST Employee )

please check the below log file in Linux

Update me i really struct this probelm.

moveon@moveon-VirtualBox:/$ mkdir /home/moveon/STM32MPU_workspace

moveon@moveon-VirtualBox:/$ mkdir /home/moveon/STM32MPU_workspace/STM32MPU-Tools

moveon@moveon-VirtualBox:/$ ls

bin  cdrom etc  lib  lib64  lost+found mnt proc run  snap swapfile tmp var

boot dev  home lib32 libx32 media    opt root sbin srv  sys    usr

moveon@moveon-VirtualBox:/$ cd /home/moveon/STM32MPU_workspace/STM32MPU-Tools

moveon@moveon-VirtualBox:~/STM32MPU_workspace/STM32MPU-Tools$ ls

en.stm32cubeprg-lin_v2-6-0.zip

moveon@moveon-VirtualBox:~/STM32MPU_workspace/STM32MPU-Tools$ unzip en.stm32cubeprg-lin_v2-6-0.zip

Archive: en.stm32cubeprg-lin_v2-6-0.zip

  creating: jre/

  creating: jre/bin/

  ..

 inflating: SetupSTM32CubeProgrammer-2.6.0.exe

 inflating: SetupSTM32CubeProgrammer-2.6.0.linux

moveon@moveon-VirtualBox:~/STM32MPU_workspace/STM32MPU-Tools$ ls

en.stm32cubeprg-lin_v2-6-0.zip jre SetupSTM32CubeProgrammer-2.6.0.exe SetupSTM32CubeProgrammer-2.6.0.linux

moveon@moveon-VirtualBox:~/STM32MPU_workspace/STM32MPU-Tools$ ./SetupSTM32CubeProgrammer-2.6.0.linux

./SetupSTM32CubeProgrammer-2.6.0.linux

/home/moveon/STM32MPU_workspace/STM32MPU-Tools

chdir /home/moveon/STM32MPU_workspace/STM32MPU-Tools/.

current dir /home/moveon/STM32MPU_workspace/STM32MPU-Tools

Command line arguments:

====================

Installation started

Framework: 1.8.0_192-BellSoft-b03 (Oracle Corporation)

Platform: ubuntu_linux,version=5.4.0-53-generic,arch=x64,symbolicName=null,javaVersion=1.8.0_265

Installation finished

WARNING: using deprecated Desktop Entry key Encoding with value UTF-8

WARNING: using deprecated Desktop Entry key Encoding with value UTF-8

WARNING: using deprecated Desktop Entry key Encoding with value UTF-8

WARNING: using deprecated Desktop Entry key Encoding with value UTF-8

WARNING: using deprecated Desktop Entry key Encoding with value UTF-8

WARNING: using deprecated Desktop Entry key Encoding with value UTF-8

[ Writing the uninstaller data ... ]

moveon@moveon-VirtualBox:~/STM32MPU_workspace/STM32MPU-Tools$ export PATH=/home/moveon/STMicroelectronics/STM32Cube/STM32CubeProgrammer/bin//:$PATH

moveon@moveon-VirtualBox:~/STM32MPU_workspace/STM32MPU-Tools$ STM32_Programmer_CLI --h

   -------------------------------------------------------------------

            STM32CubeProgrammer v2.6.0

   -------------------------------------------------------------------

moveon@moveon-VirtualBox:~/STM32MPU_workspace/STM32MPU-Tools$ sudo apt-get install libusb-1.0-0

[sudo] password for moveon:

Reading package lists... Done

Building dependency tree

Reading state information... Done

libusb-1.0-0 is already the newest version (2:1.0.23-2build1).

The following packages were automatically installed and are no longer required:

 libdlt2 libfprint-2-tod1 openjfx-source

Use 'sudo apt autoremove' to remove them.

0 upgraded, 0 newly installed, 0 to remove and 40 not upgraded.

moveon@moveon-VirtualBox:~/STM32MPU_workspace/STM32MPU-Tools$ mkdir /home/moveon/STM32MPU_workspace/STM32MP15-Ecosystem-v2.1.0

moveon@moveon-VirtualBox:~/STM32MPU_workspace/STM32MPU-Tools$ cd ..

moveon@moveon-VirtualBox:~/STM32MPU_workspace$ ls

STM32MP15-Ecosystem-v2.1.0 STM32MPU-Tools

moveon@moveon-VirtualBox:~/STM32MPU_workspace$ mkdir Starter-Package

moveon@moveon-VirtualBox:~/STM32MPU_workspace$ cd STM32MP15-Ecosystem-v2.1.0/

moveon@moveon-VirtualBox:~/STM32MPU_workspace/STM32MP15-Ecosystem-v2.1.0$ mkdir Starter-Package

moveon@moveon-VirtualBox:~/STM32MPU_workspace/STM32MP15-Ecosystem-v2.1.0$ ls

Starter-Package

moveon@moveon-VirtualBox:~/STM32MPU_workspace/STM32MP15-Ecosystem-v2.1.0$ cd Starter-Package/

moveon@moveon-VirtualBox:~/STM32MPU_workspace/STM32MP15-Ecosystem-v2.1.0/Starter-Package$ ls

en.FLASH-stm32mp1-openstlinux-5-4-dunfell-mp1-20-11-12.tar.xz

moveon@moveon-VirtualBox:~/STM32MPU_workspace/STM32MP15-Ecosystem-v2.1.0/Starter-Package$ tar xvf en.FLASH-stm32mp1-openstlinux-5-4-dunfell-mp1-20-11-12.tar.xz

stm32mp1-openstlinux-5-4-dunfell-mp1-20-11-12/

stm32mp1-openstlinux-5-4-dunfell-mp1-20-11-12/images/

stm32mp1-openstlinux-5-4-dunfell-mp1-20-11-12/images/stm32mp1/

stm32mp1-openstlinux-5-4-dunfell-mp1-20-11-12/images/stm32mp1/st-image-weston-openstlinux-weston-stm32mp1.license

....

stm32mp1-openstlinux-5-4-dunfell-mp1-20-11-12/images/stm32mp1/st-image-weston-openstlinux-weston-stm32mp1_nand_4_256_multivolume.ubi

moveon@moveon-VirtualBox:~/STM32MPU_workspace/STM32MP15-Ecosystem-v2.1.0/Starter-Package$ STM32_Programmer_CLI -l usb

   -------------------------------------------------------------------

            STM32CubeProgrammer v2.6.0

   -------------------------------------------------------------------

===== DFU Interface  =====

Total number of available STM32 device in DFU mode: 1

 Device Index      : USB1

 USB Bus Number     : 001

 USB Address Number   : 002

 Product ID       : DFU in HS Mode @Device ID /0x500, @Revision ID /0x0000

 Serial number     : 0034001A3438510438333630

 Firmware version    : 0x0110

 Device ID       : 0x0500

moveon@moveon-VirtualBox:~/STM32MPU_workspace/STM32MP15-Ecosystem-v2.1.0/Starter-Package$ ls

en.FLASH-stm32mp1-openstlinux-5-4-dunfell-mp1-20-11-12.tar.xz stm32mp1-openstlinux-5-4-dunfell-mp1-20-11-12

moveon@moveon-VirtualBox:~/STM32MPU_workspace/STM32MP15-Ecosystem-v2.1.0/Starter-Package/stm32mp1-openstlinux-5-4-dunfell-mp1-20-11-12/images$ cd stm32mp1/

moveon@moveon-VirtualBox:~/STM32MPU_workspace/STM32MP15-Ecosystem-v2.1.0/Starter-Package/stm32mp1-openstlinux-5-4-dunfell-mp1-20-11-12/images/stm32mp1$ ls

arm-trusted-firmware                 st-image-userfs-openstlinux-weston-stm32mp1.manifest

bootloader                      st-image-vendorfs-openstlinux-weston-stm32mp1.ext4

flashlayout_st-image-weston              st-image-weston-openstlinux-weston-stm32mp1.ext4

optee                         st-image-weston-openstlinux-weston-stm32mp1.license

scripts                        st-image-weston-openstlinux-weston-stm32mp1-license_content.html

st-image-bootfs-openstlinux-weston-stm32mp1.ext4   st-image-weston-openstlinux-weston-stm32mp1.manifest

st-image-bootfs-openstlinux-weston-stm32mp1.manifest st-image-weston-openstlinux-weston-stm32mp1_nand_4_256_multivolume.ubi

st-image-userfs-openstlinux-weston-stm32mp1.ext4

moveon@moveon-VirtualBox:~/STM32MPU_workspace/STM32MP15-Ecosystem-v2.1.0/Starter-Package/stm32mp1-openstlinux-5-4-dunfell-mp1-20-11-12/images/stm32mp1$ STM32_Programmer_CLI -c port=usb1 -w flashlayout_st-image-weston/FlashLayout_sdcard_stm32mp157c-dk2-trusted.tsv

   -------------------------------------------------------------------

            STM32CubeProgrammer v2.6.0

   -------------------------------------------------------------------

USB speed  : High Speed (480MBit/s)

Manuf. ID  :

Product ID :

SN     :

FW version : 0x0110

IAP

Error: TSV files are only supported for STM32MP

moveon@moveon-VirtualBox:~/STM32MPU_workspace/STM32MP15-Ecosystem-v2.1.0/Starter-Package/stm32mp1-openstlinux-5-4-dunfell-mp1-20-11-12/images/stm32mp1$

Thank.

[Olivier GALLIEN]

Hi @MVENN.1​

First path flashlayout_st-image-weston/FlashLayout_sdcard_stm32mp157c-dk2-trusted.tsv is strange

might be flashlayout_st-image-weston/trusted/FlashLayout_sdcard_stm32mp157c-dk2-trusted.tsv

But this do not explain the connection problem.

Looks like you loose target connection between :

$ STM32_Programmer_CLI -l usb

and

$ STM32_Programmer_CLI -c port=usb1 -w flashlayout_st-image-weston/FlashLayout_sdcard_stm32mp157c-dk2-trusted.tsv

Did you change anything in between ?

Can you check "STMicroelectronics DFU " device is still visible from you Virtual Box prior to launch the flashload command ?

Else I'm a bit puzzled since you previously report success in flashing but stuck in boot and I requested linux boot log console.

Please clarify.

Olivier

[MVENN.1]

Hi Olivier GALLIEN (ST Employee )

Thank you for reply

Actually previous report is flashing succeed in windows platform.

I now flashing Linux(Ubuntu20.04 its getting error like

please check it.

Thanks.

[MVENN.1]

Hi Olivier GALLIEN (ST Employee )

Thank you for reply

Actually previous report is flashing succeed in windows platform.

I now flashing Linux(Ubuntu20.04 its getting error like

please check it .

Thanks.
