RAM booting STM32mp157fDK2 with cube programmer

[Sidharth]

I have used the cube programmer to load fsbl1, fsbl2 and fip.bin onto DDR3 from forced uart boot mode. I am trying to execute the loaded files from RAM itself and get access to the u-boot console.
The files i have used were taken from the build directory of core-image-minimal build that was created using yocto.

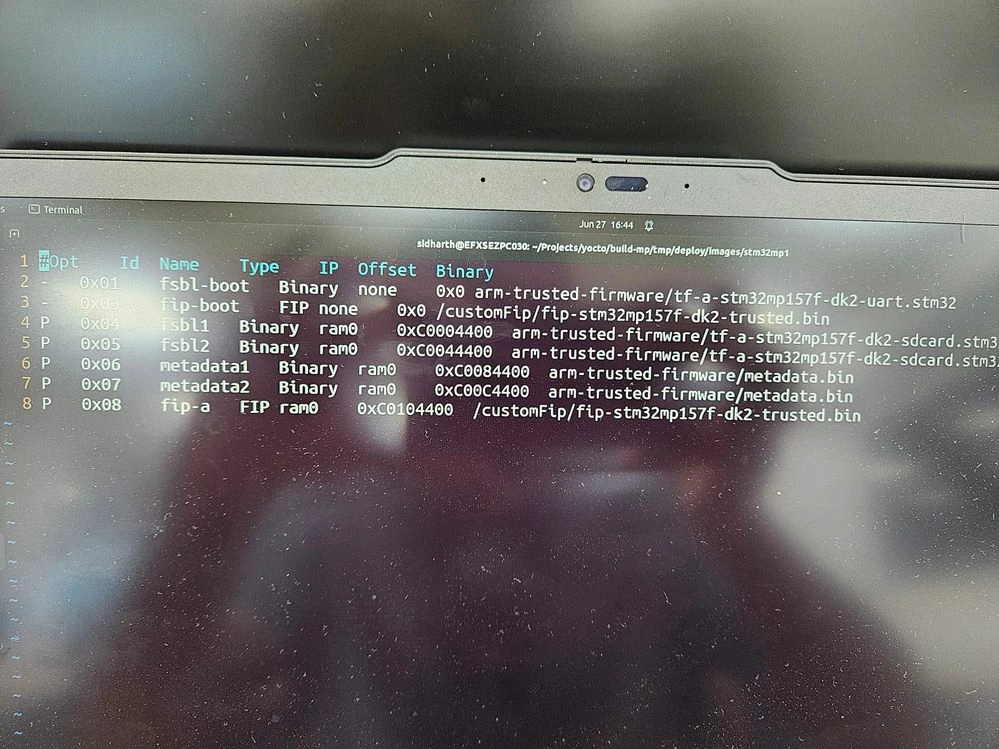

Ive attached the .tsv file i used for the cube programmer.

Does anyone know how to make u-boot rub from the RAM?? I've been stuck for days



[Olivier GALLIEN]

Hi @Sidharth



I guess what you are looking for is this How to load U-Boot with STM32CubeProgrammer - stm32mpu



Hope it help



Olivier
