STM32MP13 empty STM32Cube project "hello world"

[ravo]

Hello

Can I use Windows and STM32CubeIDE to develop application using STM32MP135FAF7 (STM32MP135F-DK discovery kit).

I tried to create empty project based on this discovery kit but it ended with message

"This project requires OpenSTLinux version 'openstlinux-6.1.-yocto-mickledore-mp1-v23.06.21', setup it now ?"

and finally error message "This operation is only supported on Linux!"

I would like to program "bare" A7 chip using STM32IDE using STLink, is it really possible ?

Thanks in advance... and Best Regards

Radim

[Erwan SZYMANSKI]

Hello @ravo ,
Can you explain the process you followed to create your project ?
Are you sure you are using the right CubeIDE / CubeMX version mentioned in the wiki ? Please take care to follow this article and come back to me if you still face any trouble : https://wiki.st.com/stm32mpu/wiki/STM32CubeMP13_Package_-_Getting_started

Kind regards,
Erwan.

[ravo]

Dear @Erwan SZYMANSKI,

thanks for response. I fellow up already steps from AN5360 (an5360-getting-started-with-projects-based-on-the-stm32mp1-series-in-stm32cubeide-stmicroelectronics.pdf)

STM32 New Project

Board Selector - STM32MP135F-DK

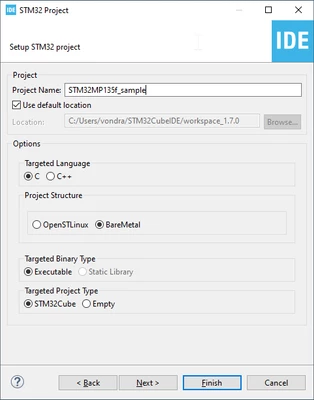

I forgot to swap to bareMetal. I must have been blind

In meanwhile I also tried another approach to generate IOC with CubeMX and import to CubeIDE it will create working project... I was still wondering where I made a mistake in CubeIDE.

So many thanks for these another wiki pages.

So project creation works fine now. No I can compile it, but how to program/ debug project ?

When I tried to run/debug it will halt:



Open On-Chip Debugger 0.12.0-00024-gc3ff39f8b (2023-06-26-16:51) [https://github.com/STMicroelectronics/OpenOCD]

Licensed under GNU GPL v2

For bug reports, read

http://openocd.org/doc/doxygen/bugs.html

srst_only srst_pulls_trst srst_gates_jtag srst_open_drain connect_deassert_srst

Info : Listening on port 6666 for tcl connections

Info : Listening on port 4444 for telnet connections

Info : STLINK V3J13M4B5S1 (API v3) VID:PID 0483:3753

Info : Target voltage: 3.303605

Info : Unable to match requested speed 5000 kHz, using 3300 kHz

Info : Unable to match requested speed 5000 kHz, using 3300 kHz

Info : clock speed 3300 kHz

Info : stlink_dap_op_connect(connect)

Info : SWD DPIDR 0x6ba02477

Info : stlink_dap_op_connect(connect)

Info : SWD DPIDR 0x6ba02477

Info : STM32MP135FAFx.cpu: hardware has 6 breakpoints, 4 watchpoints

Info : gdb port disabled

Info : gdb port disabled

Info : starting gdb server for STM32MP135FAFx.cpu on 3333

Error: couldn't bind gdb to socket on port 3333: No error

shutdown command invoked

I have upgraded STLink on discovery board and it is recognised in Windows devices. But don't know where could be another problem.

Best regards

Radim



[Erwan SZYMANSKI]

@ravo ,
Some attention point that could help your case :
1) Did you double check that connectivity was good (cf the article) and the boot pins are set to "engineering mode" ?
2) Did you double check your Debug Configuration regarding following article ? https://wiki.st.com/stm32mpu/wiki/STM32CubeMP13_Package_-_Getting_started#Download_and_run_an_example_from_SYSRAM

Kind regards,
Erwan.

[ravo]

Dear @Erwan SZYMANSKI

Update:

After restarting PC the gdb server now seems start working. I am now able to start debugger and run code...

Regards

Radim

[Erwan SZYMANSKI]

Hello @ravo ,
Thank you for your feedback. I am glad to hear it.

Kind regards,

Erwan.
