STM32CubeIDE for VSCode RTOS proxy seems to be crashing GDB server

[NMartin]

Hello,

I'm not sure where to begin with this issue.

When I enable the RTOS Proxy as shown below in the debug launch configuration.

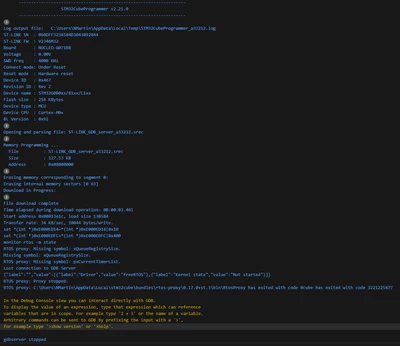

And I flash and debug, I get the following error/crash. And I also have to unplug and replug the stlink v2 from the computer for it to be recognized again.

This behavior is consistent except when I change the code structure in some small way like commenting out a few lines of code. Changing the code in some small way appears to make it work consistently again?

[Pavel A.]

As you see in the output, the proxy could not find some symbols that must be exported by the program: xQueueRegistryStyle and so on.

When you comment out few lines of code it could cause a bigger effect due to linker optimization of unused code and LTCG. For example, if commented-out lines refer to functions and these functions become unreferenced.



[LaurentL]

Hello,

The first symbol not found xQueueRegistrySize is not killer as you saw in your other post.

But I think the 2nd pxCurrentTimerList is more important and this is why it stops then.

So as Pavel wrote, your code is no more valid for RTOS debugging.
