8-bit LCD interfacing

[M0nty]

Hi everyone I'm rather new with programming with STM32 controllers and I am currently using NUCLEO-L432KC. Currently I'm facing a problem with HAL_GPIO_WritePin() function. I am interfacing with a 16x2 LCD and I am trying to write to the RS pin via the function I have mentioned, however I am facing a problem where the RS isn't being set to the desired value I am providing. I have provided the value like so: HAL_GPIO_WritePin(RS_GPIO_Port, RS_Pin, rs);

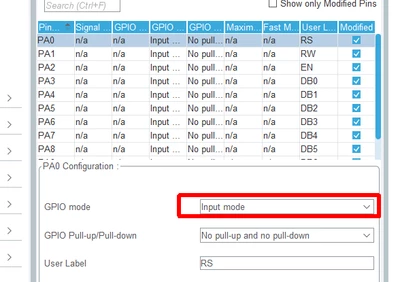

Where I have given rs = 0 but the function is setting the value as 1. I have also provided the photo of the RS pin configuration from the IOC file.





[Andrew Neil]

Welcome to the forum!



---

@M0nty wrote:

Hi everyone I'm rather new with programming with STM32 controllers

---

Do you have experience with any other microcontroller(s)? With programming in general ?

Please post your source code - instructions here:

https://community.st.com/t5/community-guidelines/how-to-write-your-question-to-maximize-your-chances-to-find-a/ta-p/575228



Also your schematic of how the LCD is connected.

A good, clear photo may also help.

Have you checked the Nucleo board's User Manual and/or schematics to see that nothing else is using that pin?

[Ghofrane GSOURI]

Hello @M0nty

First let me thank you for posting.

By checking the  HAL_GPIO_WritePin () the parameter :



PinState: specifies the value to be written to the selected bit.

* This parameter can be one of the GPIO_PinState enum values:

* @arg GPIO_PIN_RESET: to clear the port pin

* @arg GPIO_PIN_SET: to set the port pin

Ensure that you are passing the correct value for rs. The PinState parameter should be either

GPIO_PIN_SET or GPIO_PIN_RESET, not just 0 or 1. If you are using a variable like rs, make sure

it is defined as:

GPIO_PinState rs = GPIO_PIN_RESET; // or GPIO_PIN_SET

Instead of:

int rs = 0; // This may cause issues

THX

Ghofrane

[Andrew Neil]

---

@Ghofrane GSOURI wrote:

The PinState parameter should be either GPIO_PIN_SET or GPIO_PIN_RESET, not just 0 or 1.e

---

The GPIO_PIN_SET and GPIO_PIN_RESET values are 1 and 0 - so it should be OK ...



/**
 * @brief GPIO Bit SET and Bit RESET enumeration
 */
typedef enum
{
 GPIO_PIN_RESET = 0U,
 GPIO_PIN_SET
}GPIO_PinState;



[Ghofrane GSOURI]

Hello @Andrew Neil

Let 's just try to use the parameter value as it is GPIO_PIN_SET or GPIO_PIN_RESET and see what's happen.

THX

Ghofrane

[mƎALLEm]

Hello @M0nty and welcome to the community,

Could you please share your ioc file as well as sharing your code?

[M0nty]

No problem, I have provided my ioc file as requested to help you get a better understanding of my configuration
