Build errors in STEVAL-ASTRA1B “FleetManagement” CubeMX example

[remiA]

Hello,

I’m using STM32CubeIDE with a project generated directly from STM32CubeMX for the STEVAL-ASTRA1B board.

Environment

• Board: STEVAL-ASTRA1B

• Firmware Package: STM32Cube FW_WB V1.24.0

• CubeMX example/template: FleetManagement (default generated project)

• IDE: STM32CubeIDE

• Toolchain: default CubeIDE build settings

When building the generated project, I get two compilation errors:

1) Master_Clock_Accuracy field not found (should be Central_Clock_Accuracy)

File: STM32Cube/Example/FleetManagement/Src/astra_app_ble.c
Line: ~603

Error:

STM32Cube/Example/FleetManagement/Src/astra_app_ble.c:603:81: error: 'hci_le_connection_complete_event_rp0' has no member named 'Master_Clock_Accuracy'; did you mean 'Central_Clock_Accuracy'?
603 | handleNotification.Master_Clock_Accuracy = connection_complete_event->Master_Clock_Accuracy;

Workaround/Fix:
Replace Master_Clock_Accuracy with Central_Clock_Accuracy, e.g.:

handleNotification.Master_Clock_Accuracy = connection_complete_event->Central_Clock_Accuracy;



2) Conflicting prototype for aci_gap_bond_lost_event

File: STM32Cube/Example/FleetManagement/Src/BLE_Manager.c
Line: ~4464

Error:

STM32Cube/Example/FleetManagement/Src/BLE_Manager.c:4464:6: error: conflicting types for 'aci_gap_bond_lost_event'; have 'void(void)'
 4464 | void aci_gap_bond_lost_event(void) {

Workaround/Fix:
Update the function signature to match the expected prototype:

void aci_gap_bond_lost_event(uint16_t Connection_Handle) {

It looks like the generated example sources are not aligned with the current BLE stack / header definitions shipped with STM32CubeWB FW_WB V1.24.0.

Thank you.

[Mahmoud Ben Romdhane]

Hello @remiA

Let me thank you for posting.

I am currently checking this behavior, and I will get back to you ASAP.

Thanks.

Mahmoud

[Mahmoud Ben Romdhane]

Hello @remiA ,

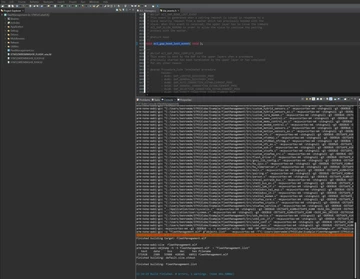

I checked the behavior described and the issue was not reproducible by my side.

I did not get compilations Errors.





Thanks.

Mahmoud
