Cannot activate IRTIM peripheral

[aerauliqa]

Hi, I'm developing an application based on STM32U031K8. I need to use the IRTIM peripheral to create an IR transmitter. I set TIM15_CH1 and TIM16_CH1 as "Output Compare No Output" but IRTIM peripheral still cannot be activated. May someone help me?

[Souhaib MAZHOUD]

Hello @aerauliqa

Thank you for reporting,

Actually, IRTIM is not supported by STM32U0 MCUs.
It seems that CubeMX is being displayed incorrectly. I have escalated the issue to the relevant team for review and correction in internal ticket 193280.

KR,

Souhaib

[aerauliqa]

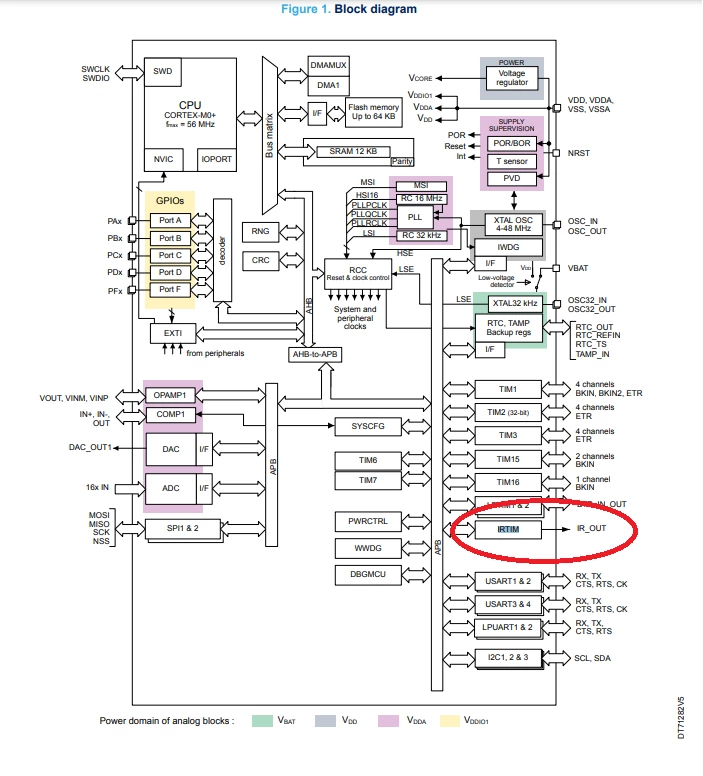

Not supported? In the STM32U031 data sheet the IRTIM peripheral is mentioned. See the attached screen-shot.

[MM..1]

IR_OUT AF optimaly to PB9 enable it or ?
