cannot import and build STSW-IOM001

[MOTREN]

Hello,

I bought a NUCLEO-F401RE and the STEVAL-IOM001V1 evaluation board to experiment with the IO-Link protocol. I’m having trouble importing STSW-IOM001 into my project. According to the documentation, it’s supposed to be opened in SW4STM32, which is an older tool. I’ve followed all the instructions I could find for importing it into STM32CubeIDE, but nothing has worked. Do you have any suggestions?

[AScha.3]

Hi,

did you try the P-NUCLEO-IOM01M1 ?

[MOTREN]

I haven’t tried it, but it seems to run with the NUCLEO-F446RE board



[AScha.3]

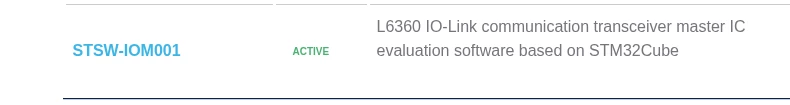

And what about the ->

You tried to use it ?



[KDJEM.1]

Hello @MOTREN and welcome to the community;



Thank you for bringing this issue to our attention.

I reported internally.

Could you try using an older version of STM32CubeIDE such as 1.11.0 or 1.16.0?

Internal ticket number: 216360 (This is an internal tracking number and is not accessible or usable by customers).



Thank you.

Kaouthar

[KDJEM.1]

Hello @MOTREN ,



To solve this issue, I suggest that you add this instruction under main.c:

__attribute__((weak)) void _close(void){}
__attribute__((weak)) void _lseek(void){}
__attribute__((weak)) void _read(void){}
__attribute__((weak)) void _write(void){}



Please let me know if the issue is solved or not?

Thank you.

Kaouthar

[KDJEM.1]

Hello @MOTREN ;



Is your issue solved?

If yes, please click on Accept as Solution on the reply which solved your issue.



Thank you.

Kaouthar
