CubeIDE not loading source code for makefile project while debugging

[gkowshik]

Hi All,

I have a Makefile based project that I imported to CubeIDE. I am able to build it smooth, however when i am trying to launch a debug window I am not able to see the source code and it only shows 2 buttons saying "View Disassembly" and Preferences tab.

Unlike the one's shown online I am not getting an option to load the source file by browsing my file system. What am I doing wrong and how to load this??

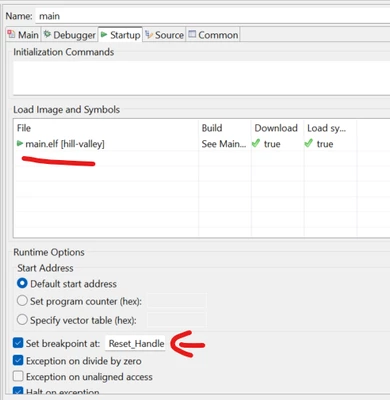

The below is my debugger view (I put a breakpoint at Reset_Handler hence the halt)



Please help me with the problem as it's very hard to debug with the assembly view. please note the view is not loading when the function is entering C files too, i.e., from Reset Handler the PC jumps to SystemInit which here is a C file but even for that I am not able to see the load.

Thanks

[Andrew Neil]

What version of GCC do you use to build?

Did you build with debug info?

What version of CubeIDE do you use to debug?



---

@gkowshik wrote:

when i am trying to launch a debug window I am not able to see the source code

---

Show how you do the launch

[gkowshik]

What version of GCC do you use to build? - gcc version 10.3.1 20210621 (release) (15:10.3-2021.07-4)

Did you build with debug info? - Do you mean my optimization level? Yes, I had -O0 and added

What version of CubeIDE do you use to debug? - I am using the latest version i.e., 1.16.1

Show how you do the launch

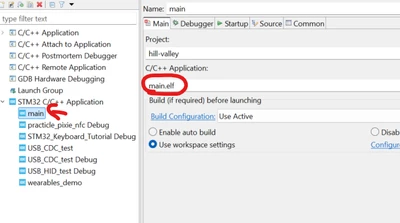

I created a new debug configuration by going to Run -> Debug Configurations



And to launch I simply clicked Debug As -> STM32 C/C++ Application and it was able to launch it.





[Andrew Neil]

---

@gkowshik wrote:

Did you build with debug info? - Do you mean my optimization level? Yes, I had -O0 and added

---

No. You need a -g to include debug info in the ELF file:

https://gcc.gnu.org/onlinedocs/gcc/Debugging-Options.html#:~:text=Level%203%20includes%20extra%20information%2C%20such%20as%20all%20the%20macro%20definitions%20present%20in%20the%20program

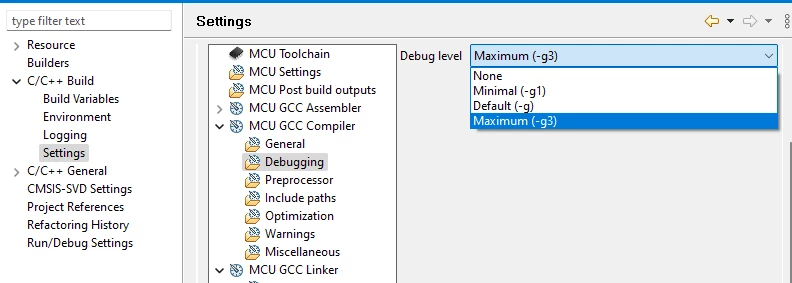

Default for CubeIDE is -g3:



[gkowshik]

Hi,

Thanks for pointing it out. I have now included it in my makefile. Here's my makefile for your reference, however I am still not being able to reference the source code while loading the elf in the IDE.





TARGET=main
EXECUTABLE=main.elf
BINARYOUT=main.bin
MAPFILE=main.map # Define the map file name
# STLINK=~/Downloads/stlink
LIBPATH=STM32L1xx_StdPeriph_Lib/

CC=arm-none-eabi-gcc
LD=arm-none-eabi-gcc
AR=arm-none-eabi-ar
AS=arm-none-eabi-as
CP=arm-none-eabi-objcopy
OD=arm-none-eabi-objdump

BIN=$(CP) -O ihex

DEFS = -DUSE_STDPERIPH_DRIVER -DSTM32L1XX -DHSE_VALUE=8000000 -DSTM32L1XX_MD
STARTUP = $(LIBPATH)/Libraries/CMSIS/Device/ST/STM32L1xx/Source/Templates/gcc_ride7/startup_stm32l1xx_md.s

MCU = cortex-m3
MCFLAGS = -mcpu=$(MCU) -mthumb -mlittle-endian -mfloat-abi=soft -std=gnu11 -g3
ASMFLAGS = -mcpu=$(MCU) -mthumb -mlittle-endian -mfloat-abi=soft -g3
STM32_INCLUDES = -I$(LIBPATH)/Libraries/CMSIS/Device/ST/STM32L1xx/Include/ \
	-I$(LIBPATH)/Libraries/CMSIS/Include/ \
	-I$(LIBPATH)/Libraries/STM32L1xx_StdPeriph_Driver/inc/ \
	-I./inc/ \
	-I./inc/BLE/

OPTIMIZE = -O0

# Separate CFLAGS (for compilation) and LDFLAGS (for linking)
CFLAGS	= $(MCFLAGS) $(OPTIMIZE) $(DEFS) -I. -I./ $(STM32_INCLUDES)
LDFLAGS = -Wl,-T,stm32_flash.ld -Wl,-Map=$(MAPFILE)

src=./src/main.c \
	./src/millis.c \
	./src/usart.c \
	./src/spi.c \
	./src/debug.c \
	./src/stm32l1xx_it.c \
	./src/system_stm32l1xx.c \
	./src/BLE/io_support.c \
	./src/BLE/acilib.c \
	./src/BLE/aci_queue.c \
	./src/BLE/aci_setup.c \
	./src/BLE/hal_aci_tl.c \
	./src/BLE/lib_aci.c \
	$(LIBPATH)/Libraries/STM32L1xx_StdPeriph_Driver/src/stm32l1xx_gpio.c \
	$(LIBPATH)/Libraries/STM32L1xx_StdPeriph_Driver/src/stm32l1xx_spi.c \
	$(LIBPATH)/Libraries/STM32L1xx_StdPeriph_Driver/src/misc.c \
	$(LIBPATH)/Libraries/STM32L1xx_StdPeriph_Driver/src/stm32l1xx_dbgmcu.c \
	$(LIBPATH)/Libraries/STM32L1xx_StdPeriph_Driver/src/stm32l1xx_dma.c \
	$(LIBPATH)/Libraries/STM32L1xx_StdPeriph_Driver/src/stm32l1xx_exti.c \
	$(LIBPATH)/Libraries/STM32L1xx_StdPeriph_Driver/src/stm32l1xx_flash.c \
	$(LIBPATH)/Libraries/STM32L1xx_StdPeriph_Driver/src/stm32l1xx_i2c.c \
	$(LIBPATH)/Libraries/STM32L1xx_StdPeriph_Driver/src/stm32l1xx_iwdg.c \
	$(LIBPATH)/Libraries/STM32L1xx_StdPeriph_Driver/src/stm32l1xx_pwr.c \
	$(LIBPATH)/Libraries/STM32L1xx_StdPeriph_Driver/src/stm32l1xx_rcc.c \
	$(LIBPATH)/Libraries/STM32L1xx_StdPeriph_Driver/src/stm32l1xx_rtc.c \
	$(LIBPATH)/Libraries/STM32L1xx_StdPeriph_Driver/src/stm32l1xx_sdio.c \
	$(LIBPATH)/Libraries/STM32L1xx_StdPeriph_Driver/src/stm32l1xx_syscfg.c \
	$(LIBPATH)/Libraries/STM32L1xx_StdPeriph_Driver/src/stm32l1xx_tim.c \
	$(LIBPATH)/Libraries/STM32L1xx_StdPeriph_Driver/src/stm32l1xx_usart.c \
	$(LIBPATH)/Libraries/STM32L1xx_StdPeriph_Driver/src/stm32l1xx_wwdg.c

# Object files
OBJDIR = .
OBJ = $(SRC:%.c=$(OBJDIR)/%.o)
STARTUP_OBJ = $(STARTUP:%.s=$(OBJDIR)/%.o)

all: $(TARGET)

$(TARGET): $(EXECUTABLE)
	$(CP) -O ihex $(EXECUTABLE) $(TARGET).hex
	$(CP) -O binary $(EXECUTABLE) $(BINARYOUT)

$(EXECUTABLE): $(OBJ) $(STARTUP_OBJ)
	$(CC) $(CFLAGS) $(OBJ) $(STARTUP_OBJ) $(LDFLAGS) -lm -lc -lnosys -o $(EXECUTABLE)

$(OBJDIR)/%.o: %.c
	$(CC) $(CFLAGS) -c $< -o $@

$(OBJDIR)/%.o: %.s
	$(AS) $(ASMFLAGS) -c $< -o $@

clean:
	rm -f $(OBJDIR)/src/*.o \
	 $(OBJDIR)/src/BLE/*.o \
	 $(OBJDIR)/STM32L1xx_StdPeriph_Lib/Libraries/STM32L1xx_StdPeriph_Driver/src/*.o \
	 $(TARGET) \
	 $(EXECUTABLE) \
	 $(BINARYOUT) \
	 $(TARGET).hex \
	 $(MAPFILE) # Remove the map file



[gkowshik]

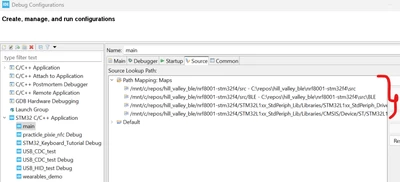

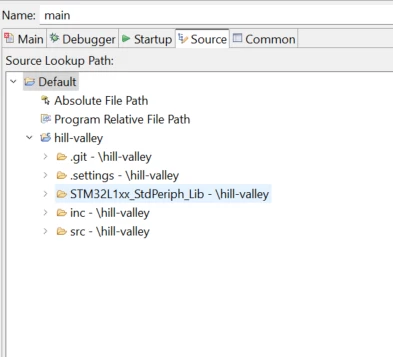

@unknown Thanks for the reply. There seems to be a mismatch in the cross referencing of the file path as my PC has WSL enabled and I need to add the mapping translations for the file path in the debug configuration.

After giving the file paths and the mainly enabling "-g3" to the makefile I am able to get the debug views correctly.

Thanks alot for your help, I will close this.
