Error: init mode failed (unable to connect to the target)

[No_Name]

Hi,
I'm a beginner in STM32.

I tried to debug STM32F103C8T6 but it always fails I have changed the st link 5 times and everything is the same there is no change, I don't know what to do,.

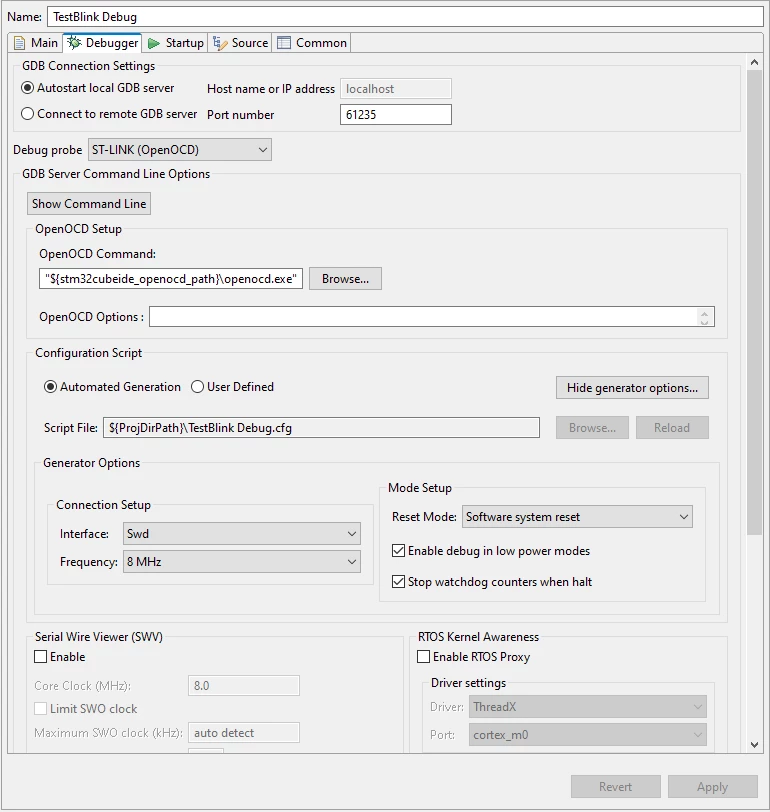

here are the errors and settings on my debugger





Open On-Chip Debugger 0.12.0+dev-00600-g090b431b1 (2024-09-13-19:14) [https://github.com/STMicroelectronics/OpenOCD]
Licensed under GNU GPL v2
For bug reports, read
	http://openocd.org/doc/doxygen/bugs.html
Info : Listening on port 64568 for tcl connections
Info : Listening on port 62346 for telnet connections
Info : STLINK V2J45S7 (API v2) VID:PID 0483:3748
Info : Target voltage: 3.210020
Error: init mode failed (unable to connect to the target)







[KDJEM.1]

Hello @No_Name and welcome to the community;



Are you able to connect properly to your device using STM32CubeProgrammer?

Try to ensure an STLink firmware upgrade first.

Do you still have same issue?

Thank you.

Kaouthar

[No_Name]

yes if in STM32CubeProgrammer it can, but I want to see the debug output of the STM32 device, I use ST-Link V2 mini, and the target is STM32 bluepill STM32F103C8T6.

[mƎALLEm]

---

@No_Name wrote:

I use ST-Link V2 mini, and the target is STM32 bluepill STM32F103C8T6.

---

Hello,

ST resources are only dedicated to supporting genuine ST products. We are not committed to ensuring that clones/fakes products work properly with the firmware we provide.

We suggest to purchase a genuine products and purchase them from known and trusted distributors.

Thank you for your understanding.

[Andrew Neil]

Is it a genuine STM32?

https://community.st.com/t5/stm32-mcus-products/blue-pill-stm32f1-programs-ok-via-arduino-ide-but-not-keil-chip/m-p/667923



Is it a genuine ST-Link?

https://community.st.com/t5/stm32-mcus/how-to-recognize-a-genuine-st-link-v2-versus-a-cloned-one/tac-p/703663/highlight/true#M965

https://community.st.com/t5/stm32-mcus/how-to-recognize-a-genuine-st-link-v2-versus-a-cloned-one/ta-p/49471?search-action-id=48346634797&search-result-uid=49471



How to solve debugger connection issues:

https://community.st.com/t5/stm32-mcus/how-to-solve-connection-errors-when-connecting-and-programming/ta-p/753344

https://community.st.com/t5/stm32-mcus/how-to-solve-debugger-connection-issues/tac-p/698105/highlight/true#M956

https://community.st.com/t5/stm32-mcus/how-to-solve-debugger-connection-issues/ta-p/49693?search-action-id=48346957564&search-result-uid=49693



FAQ: Possible communication failure between STLINK-V3 and some recent computers

https://community.st.com/t5/stm32-mcus/faq-possible-communication-failure-between-stlink-v3-and-some/tac-p/736830







[No_Name]

I am using STLink V2 will buying STLink V3 solve the problem?

[Andrew Neil]

That depends on what the problem is!
