Facing an issue while creating external loader for Nucleo-G491

[VPana.1]

Dear @Tesla DeLorean and @KDJEM.1

I am using NUCLEO-G491RE board and i want to create external flash loader for W25Q64JVSSIQ QSPI flash memory. I used external loader files from Github and build the .stldr file and placed in CubeProgrammer. when i try to read from 0x90000000 location, i am getting read failure error. I used the below path to create external loader for W25Q64JVSSIQ QSPI flash memory,

https://github.com/STMicroelectronics/stm32-external-loader/tree/contrib/Loader_Files/other%20devices

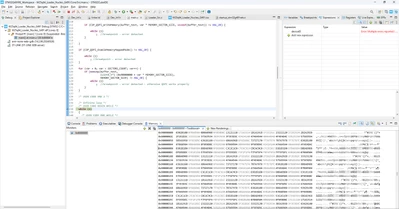

Driver code is working fine since I am able to see the data in memory mapped mode with test code provided in the github link.

But, when create a external loader using github files and placed .stldr file into cubeprogrammer and working on read/write/erase and these operations are failing.

Could you please check my project and do needful. PFA for my loader project

Thanks

[Tesla DeLorean]

https://github.com/cturvey/stm32extldr/tree/main/g4_w25q64

Try the PB10,PB11,  PB1,PB0,PA7,PA6

[VPana.1]

Dear @Tesla DeLorean ,



Thanks for your quick feedback. I've tried with the above mentioned option and still read, erase and write operations are failing.

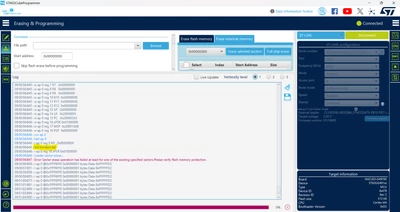

I am seeing Init function fail when i set  log level to 3

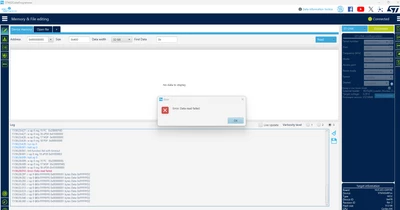

Below is the reference screenshot



[Tesla DeLorean]

I'll have to double check. Typically mine will fail Init() if the devices don't report as expected. What does READ ID report in your application space BSP/CSP implementation?

[VPana.1]

I am working on a project and this external loader creating a problem for me. Request your support

[VPana.1]

@KDJEM.1 : I have seen you are giving feedbacks on external loader. Could you please support on this issue. If you are busy with your tasks, could you please recommend to your colleagues.

[KDJEM.1]

Hello @VPana.1 ;



Could you please check the dummy cycle number and the hardware connection.

I recommend you referring to MOOC - External QSPI loader how to - YouTube and get inspired to check your configuration.



Thank you.

Kaouthar

[VPana.1]

Hi @KDJEM.1 ,

Thanks for your feedback. I am exactly following the same as mentioned in the MOOC.

Using 6 dummy cycles for MemoryMappedMode()

PFA for external loader project. Please the source files and let me know if any modifications are required.





[VPana.1]

Hi @KDJEM.1

Did you check the code that is attached to above. If not yet could you please check and let me know where is actual issue.
