FreeRTOS Runtime percentage calculations

[DreamOnDirac]

Hi



Using FreeRTOS V11.0.1 and Stm32Cubeide 1.14.1 I was trying to read out the percentage information into the debugger.  Unfortunately I don't get the expected behavior

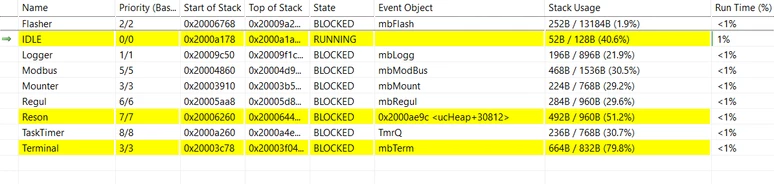

As all of my tasks are either below 1% or at 1%, it does not seem correct.

I have followed the instructions in stm32CubeIDE user guide and if I make a call to

uxTaskGetSystemState

 from the FreeRTOS API, i can calculate values that make more sense as the IDLE task now takes up about 99% of the time under no load.

Are there any other settings that needs to be fulfilled for this to work or are there any more needed configurations in FreeRTOS?

Best regards

Martin

[KnarfB]

How have you implemented portGET_RUN_TIME_COUNTER_VALUE and friends? A timer, is is running? What spped, what MCU?

I often use the cycle counter on M4 like so. In FreeRTOSConfig.h:

/* USER CODE BEGIN Includes */
/* Section where include file can be added */
#include "main.h"

#include "tracer.h"

#define configUSE_TRACE_FACILITY 1
#define configGENERATE_RUN_TIME_STATS 1
#define portCONFIGURE_TIMER_FOR_RUN_TIME_STATS() \
do { \
 CoreDebug->DEMCR |= CoreDebug_DEMCR_TRCENA_Msk; \
 ITM->LAR = 0xC5ACCE55; \
 DWT->CTRL |= DWT_CTRL_CYCCNTENA_Msk; \
} while(0)

#define portGET_RUN_TIME_COUNTER_VALUE() (DWT->CYCCNT)

#define configRECORD_STACK_HIGH_ADDRESS 1
/* USER CODE END Includes */

 hth

KnarfB

[DreamOnDirac]

Hi KnarfB and thanks for the reply.



I will dig in to my implementation and what I got later today. But I tested your variant, which I prefer since I dont need to assign a normal timer and have a timer update event interrupt that executes.

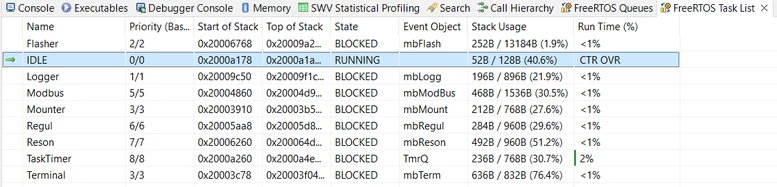

When I run with your code instead get this:

Which looks reasonable apart from the "CTR OVR" for the runtime.



Best regards

Martin

[KnarfB]

No idea, where the counter overflow comes from, maybe you have to add a

DWT->CYCCNT = 0;

in the init phase or the MCU clock is soo high (or tick rate so low)? Never seen that before.

Even if you use a timer, you don't have to implement an interrupt handler, but read pass the CNT counter register of a running timer for the "run time variable" (STM32CubeIDE user manual) directly, either at register level or wrapped by the __HAL_TIM_GET_COUNTER macro.

hth

KnarfB

[DreamOnDirac]

Does @mattias norlander or @B.Montanari have any input on this?



// Martin

[jmalmari]

This was broken by multicore support in FreeRTOS kernel, commit https://github.com/FreeRTOS/FreeRTOS-Kernel/commit/ae3a498e435cecdb25b889f2740ea99027dd0cb1.

Since data from uxTaskGetSystemState looks correct, most likely Cube IDE needs to adapt.
