Generate code not working in CubeIDE

[slai-nick]

Following up from my previous post, I am having issues with code generation - it seems to complete, but I don't see anything changed in the code.

Here attached you will find the ioc file. I modified pin names for PB10 to PB12, but after generating the code I don't see any of the name in the project (should be in main.h, but I did a search in the whole project just to be sure).



I am using STM32CubeIDE 1.16.0 on mac Sonoma 14.2.1 with M1 chip.

[AScha.3]

Look in main.c , gpio init :

void MX_GPIO_Init(void)
{
 GPIO_InitTypeDef GPIO_InitStruct = {0};

 /* GPIO Ports Clock Enable */
 __HAL_RCC_GPIOE_CLK_ENABLE();
 __HAL_RCC_GPIOC_CLK_ENABLE();
 __HAL_RCC_GPIOF_CLK_ENABLE();
 __HAL_RCC_GPIOH_CLK_ENABLE();
 __HAL_RCC_GPIOA_CLK_ENABLE();
 __HAL_RCC_GPIOB_CLK_ENABLE();
 __HAL_RCC_GPIOG_CLK_ENABLE();
 __HAL_RCC_GPIOD_CLK_ENABLE();

 /*Configure GPIO pin Output Level */
 HAL_GPIO_WritePin(GPIOE, GELB_Pin|GRUEN_Pin|ROT_Pin, GPIO_PIN_RESET);

There you see "your" names...after gen.code.

[slai-nick]

I don't...
Also the names should be defined in main.h, but they aren't, and they don't appear anywhere else in the project.

It just seems that my IDE is in a broken state... Unfortunately I just reinstalled it and it didn't solve the issue.

When I click generate code, the window appears but is a lot faster than it should be. It is done within a fraction of a second.

[AScha.3]

>  It is done within a fraction of a second.

So you have one of these new quantum processors - or its doing nothing. :)



Maybe you try : install CubeMX , to make ioc and gen.code (same as the IDE plugin). Try...

https://www.st.com/content/st_com/en/stm32cubemx.html



[Mahmoud Ben Romdhane]

Hello @slai-nick ,

First let me thank you for posting.

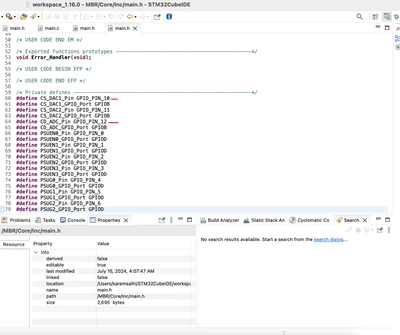

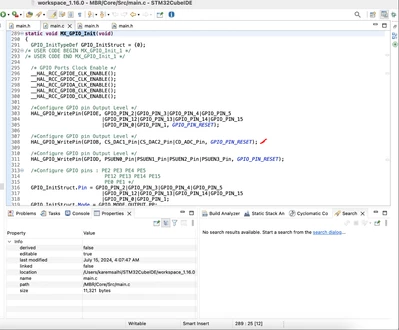

This problem is not reproduced using STM32CubeIDE 1.16.0 on mac Sonoma.



Thanks.

Mahmoud.







[RLanz.2]

Hi,

I've bumped into similar issue after installation of STM32CubeIDE 1.16.0.
I could not generate code after any change in the *.ioc file.
I work on STMU575, but I think it is a general issue.
After connecting to 'My ST' account in the STM32CubeIDE, I suddenly could generate the code.

P.S.
I only wonder if this is a one-timer need to connect to ones ST account, in order to generate code, after a new STMCubeIDE version installation, or will it be required for any code generation one might need.

[Adailton Júnior]

I just had the same issue.

Also solved by logging in

[dhch-mub]

honestly, this is just fu***ed up. having to login to your account in order for code generation to work....

just had the same issue and it took me 2 hours to figure this out. makes me want to switch to some other ide. not that cubeide ever was a great ide...

[Adailton Júnior]

Yeah. We already have to log in to download the software. Now, we have to log in to use it.

If you don't have an internet connection, you're f***ed.

[C-Coder]

Hey all. I have this same issue. I have the following installed:



STM32CubeMX - 6.13.0

STM32CubeProgrammer - 2.18.0

STM32CubeIDE - 1.17.0



The device I'm trying to generate for is the STM32H747XI. I have tried clearing the myST account info and entering it again (from CubeMX and from CubeIDE). Regardless of which app I try to generate code from, I never get more than a skeleton (e.g. none of the custom User Labels for PINs show as #defines, and there's no initialization code generated). The Check Connection button always returns without a displayed error, there's no Proxy server in use.



Any ideas?



Thanks - C-Coder



EDIT - Looks like the problem was that the Pin Context Assignment value was not set. Set them to the appropriate core causes the code to be generated.

[gwfung]

I also have this problem.  In the context menu for the project, Generate Code is now grayed out after I logged in properly.

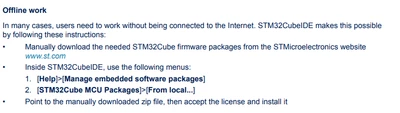

Someone asked about working offline.  In the user guide UM2609 I found this mention about working offline in section 1.2.3:



[gwfung]

I managed to solve it, I think by recreating the project.

[taherrera]

I am using version 1.16.1, and I also had to login to generate code.

Is there any guide to program stm32 without an IDE ?
