Generating code for HTTPD in NUCLEO-H745ZI Board

[ggowd.1]

Hi Team,

"I am trying to configure an HTTP server on the Nucleo-H745ZIT6 board, which has two Cortex cores. I am using Cortex-M7 for this. After enabling HTTP in middleware inside LwIP, and generating the code, LwIP is placed inside the Cortex-M7 folder, but the HTTP code is generated outside of it. When compiling, I get an error saying 'fsdata.c: No such directory.' They are adding the HTTP image inside the HTTP folder, but I need to configure the resources configuration but not getting the option and I'm not sure how. Can you help me with this?"

i am using stmcubeide 1.15.1 software

Best Regards,
Gagan Gowda

[Ghofrane GSOURI]

Hello @ggowd.1

First I recommend you  to use the latest version of CubeMX 6.12.1 and CubeIDE 1.16.1

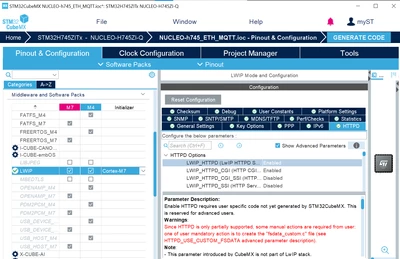

After checking your IOC , all you need to do is to add the fsdata.c manually  to your project ,

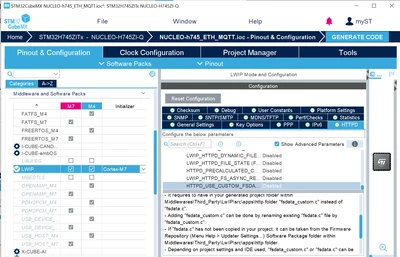

If "fsdata.c" has not been copied in your project, it can be taken from the Firmware Repository (Menu Help > Updater Settings...) Software Package folder within Middlewares\Third_Party\LwIP\src\apps\http folder.

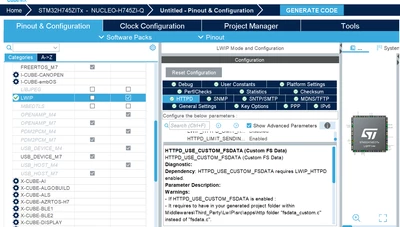

actually those informations  are mentioned in parameter description



THX

Ghofrane



[ggowd.1]

Hi @Ghofrane GSOURI

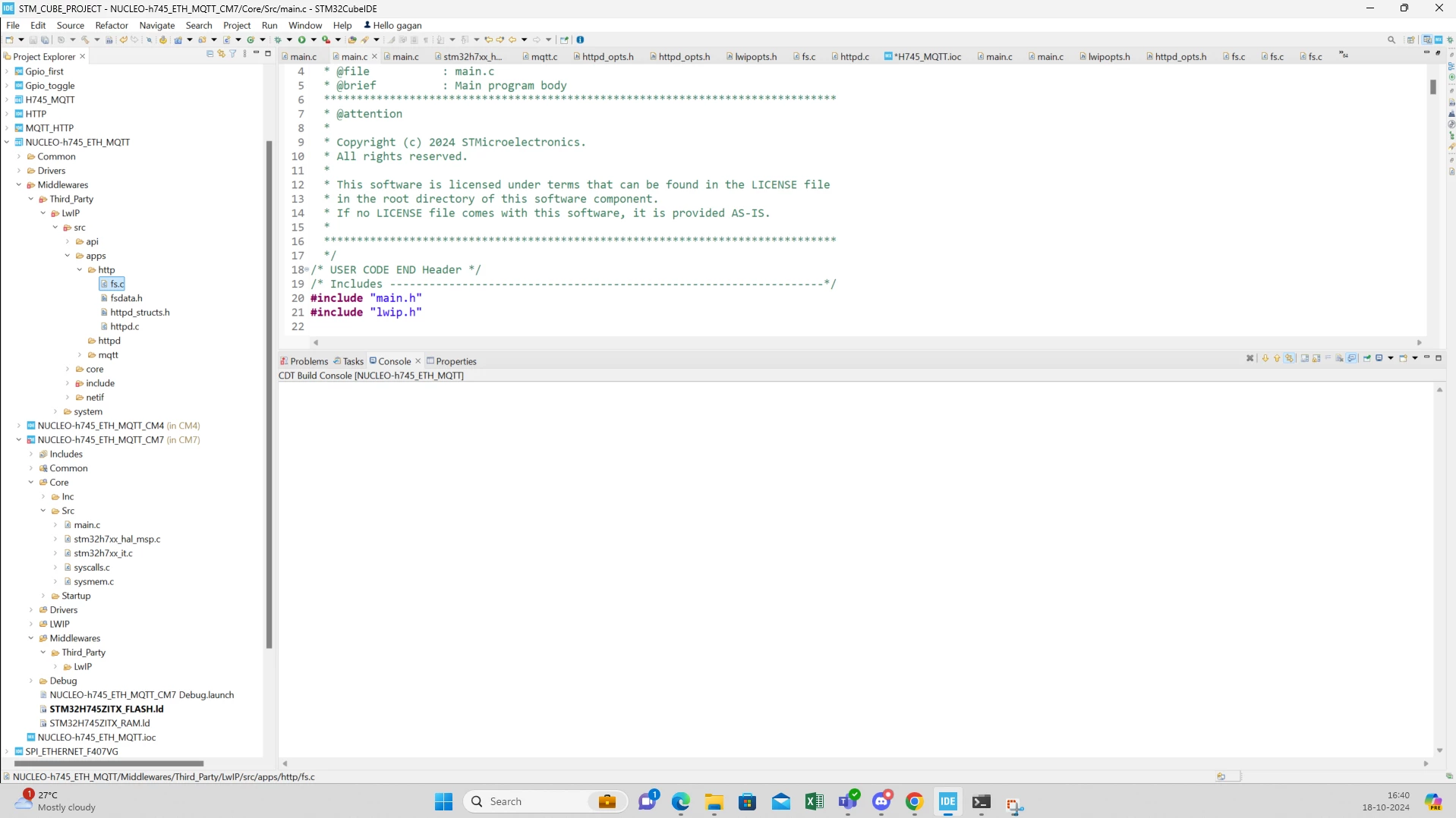

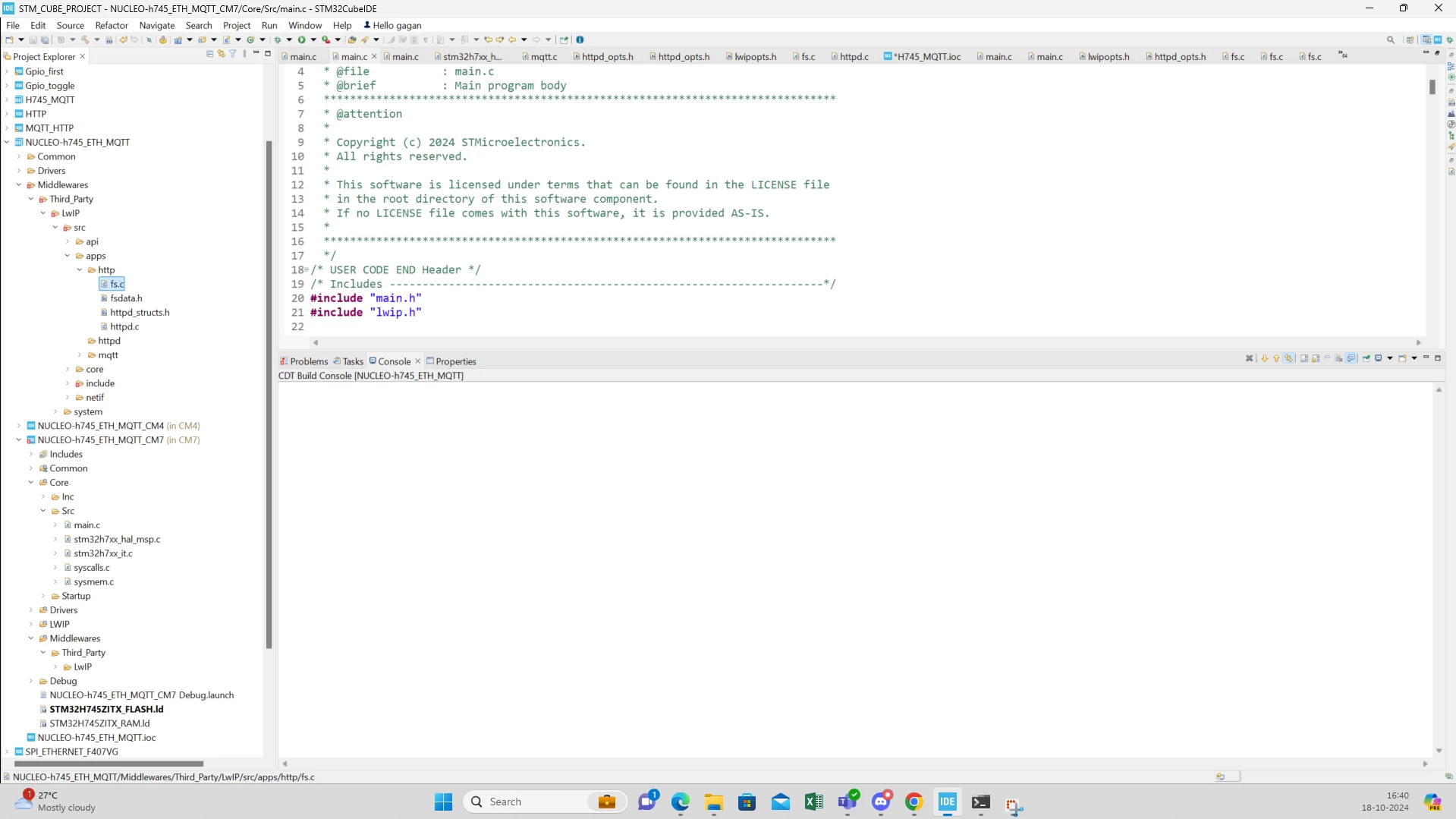

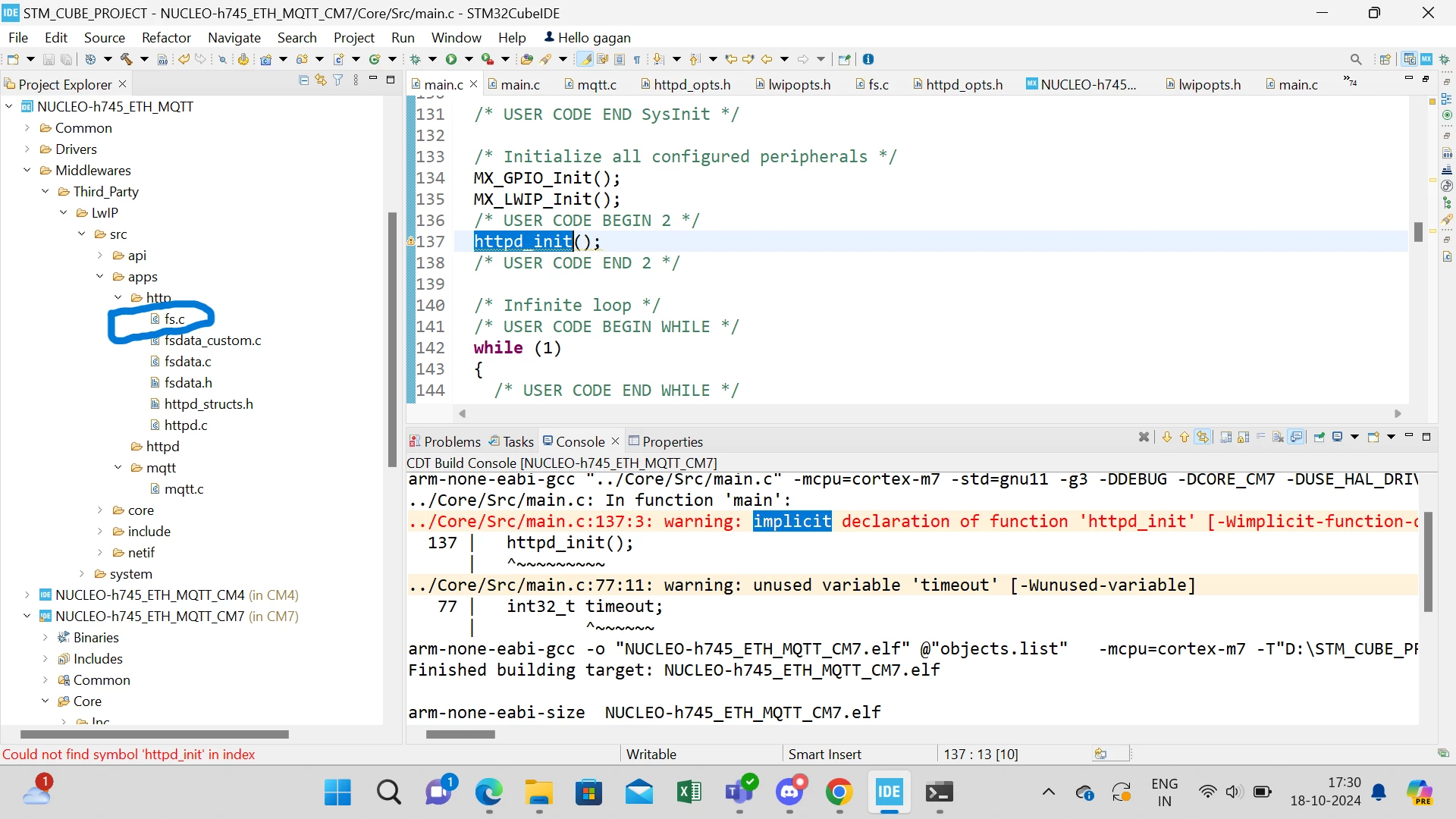

I added fsdata.c and fsdata_custom.c to the HTTP folder. After that, when I called httpd_init(), I received a warning: 'implicit declaration of function httpd_init'. What should I do to resolve this?"

PFA of http folder i am not arrow of that folder

Best Regards,
Gagan Gowda

[Ghofrane GSOURI]

The warning "implicit declaration of function ''httpd_init'' indicates that the compiler encountered a call to the "httpd_init" function before it had seen a declaration or definition for that function.

httpd_init function is declared in httpd.c file and you want to use it in fs.c file  ,just Include this header in your fs.c file:

#include "lwip/apps/httpd.h"
