HAL drivers with STM32C5 and STMCubeIDE

[MatheusNifocci77]

Hello guys,

I started a project using STM32C552RET6 and STM32CubeIDE.

When I use the autocomplete feature to select a HAL function, I can’t find it. I have to type the function manually.

Does anyone know how I can fix this problem?

Thanks for your help.

[Andrew Neil]

Welcome to the forum.

Please see How to write your question to maximize your chances to find a solution for best results.

In particular, what version of CubeIDE are you using?



---

@MatheusNifocci77 wrote:

I started a project using STM32C552RET6 and STM32CubeIDE.

---

How, exactly, did you start this project?

For C5, you need to use STM32CubeMX2



PS:

Note that C5 uses HAL2

How to create a new project with STM32CubeMX2

How to get started with STM32C5 microcontrollers

How to use the HAL2 structure and project format

More Knowledge Base articles related to STM32CubeMX2

[MatheusNifocci77]

Hi Andrew

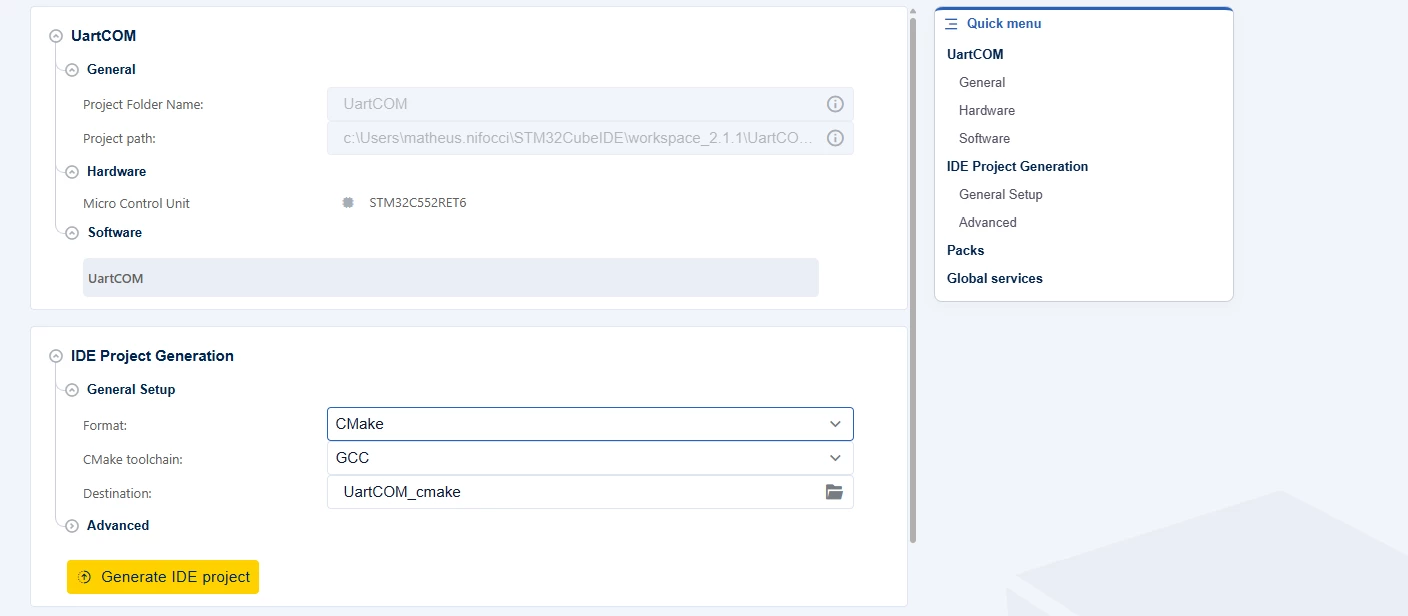

Yes, i use Stm32CubeMX2 to generate this project, using a Cmake format.



After that, i import this projet on stm32cubeIDE as a STM32CubeMX2 Project. I'm using stm32CubeIDE

Version: 2.1.1.

[TDK]

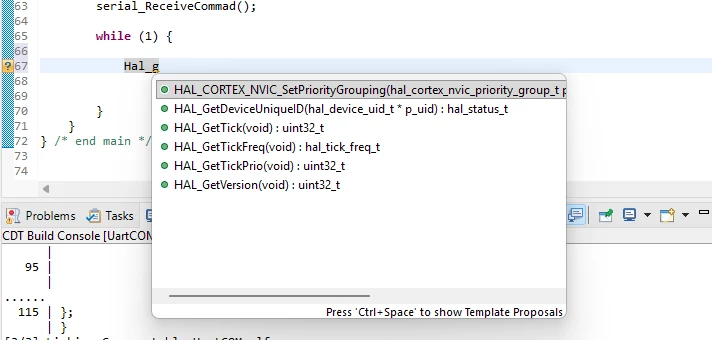

Autocomplete is clearly working in your screenshot.

What function are you looking for?



[MatheusNifocci77]

HAL_GPIO_ReadPin for example.

[Souhaib MAZHOUD]

Hello @MatheusNifocci77

Thank you for bringing our attention to this issue,
The behavior will be escalated internally to the dedicated team for further investigation  (Ticket #0061592 This is an internal tracking number and is not accessible or usable by customers). I will keep you informed about any updates.

BR, Souhaib

[Karl Yamashita]



It could be the GPIO driver is not enabled. I've ran into the same problem.



I would check to see if the stm32c5xx_hal_gpio.c file is grayed out (not enabled).

I'm not sure if CubeMX2 is supposed to add defines/symbols automatically or if it's a bug, but I have to enable each peripheral even though i enabled them in CubeMX2.

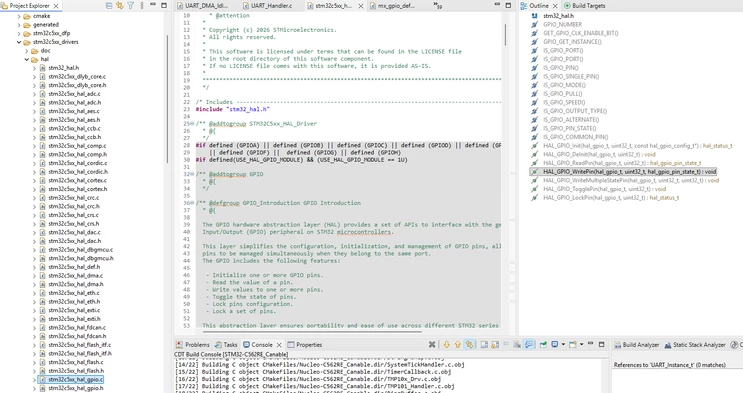

For instance, stm32c5xx_hal_gpio.c HAL driver, it's all grayed out. The right column shows all the functions have a slash.

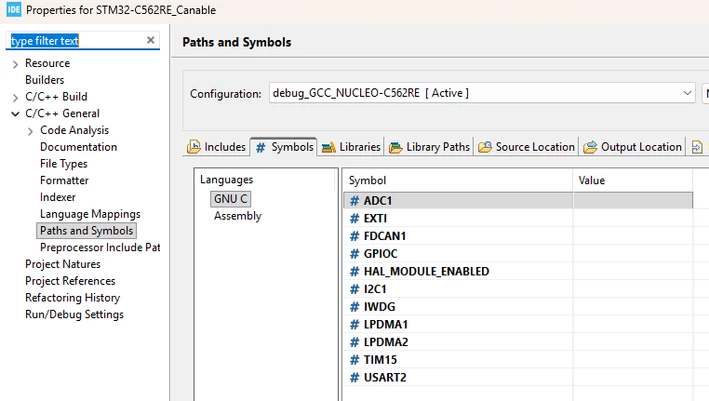

When I add "GPIOC" which is a one of the symbols, it enables the whole file. I have to add symbols for other peripherals as well.

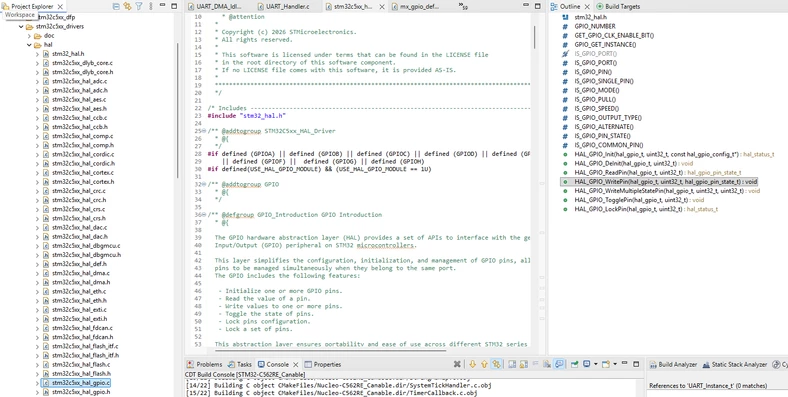

You can see it's not grayed out and in the right column, the slashes are gone.

Now I am able to type a few characters and hit CTRL + Space to bring up a list of available functions.
