ITM Debug with SWV H755

[tstokes]

I am unable to get ITM debug working via either CubeIDE or Cube programmer.



I have checked the sysclock matches the sysclock configured for the system.

I have tried various limits and auto for the SWV clock.

I have enabled SWV in the debugger config.

In cubeIDE I see no data (port 0 is enabled on the ITM Data Console).

Looking at the log in cubeprogrammer I can see that SWV connects and then disconnects instantly when I click Start on the SWV tab.

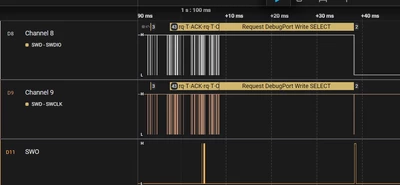

Logging and analysing the signals I can see that SWDIO drops at about this time.





Any ideas?

[Ghofrane GSOURI]

Hello @tstokes

First let me thank you for posting.

Here are a few steps you can take to troubleshoot and resolve this problem:

1- Update Software and Firmware:
Ensure that you are using the latest version of CubeIDE 1.16.1 and Cube Programmer. Updates often include bug fixes and improvements that could address your issue.

2- Reset and Restart:
Try resetting your development board, debugger, and computer. Sometimes a simple restart can resolve communication issues.

3- Take a look at those posts, it could aid you in resolving the problem

 Solved: Debugging with ITM not working with SWV in STM32Cu... - STMicroelectronics Community

SWV ITM Data Console is empty - STMicroelectronics Community



THX

Ghofrane

[Rob.Riggs]

What hardware are you using? Is this a dev board? If so, which one?

What ST/Link debugger/programmer are you using?
