library compiled for stm32F4 series compatible for custom Cortex M4?

[dwarakanath]

Edited to clarify that this is specifically STM32F4 (originally just said "Fx").

---

I've a library .a file compiled using STM32CubeIDE for STM32F4 series.

Is the .a file be compatible to Custom ARM Cortex M4 to use in IAR Embedded Work bench?

[Andrew Neil]

There's two independent questions there:

1. Is the .a library compatible with this "Custom ARM Cortex M4" ?
   I guess if the Custom part has the exact same options as in the STM32Fx, it should work.

2. Can IAR use a GCC .a library created by CubeIDE ?
   You would have to ask IAR that one:
   https://www.iar.com/support


If you have the source, surely rebuilding from source would be the safest option?

[KnarfB]

Fx can be Cortex-M0 or Cortex-M4.

"Custom  ARM Cortex M4" could have other HW features implemented than STM32.

Also check the floating point options which are used on either side.

hth

KnarfB

[Andrew Neil]

---

@KnarfB wrote:

Fx can be Cortex-M0 or Cortex-M4.

---

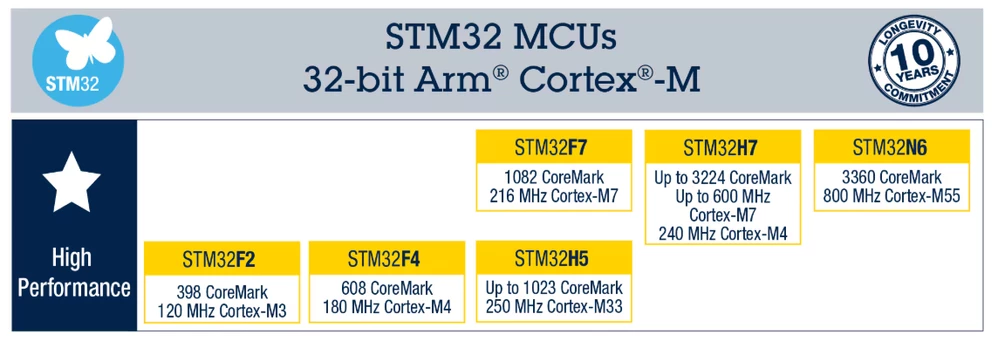

Also M3, M33, M7, M55:



@dwarakanath so did you mean F4 ?

[dwarakanath]

Hi @Andrew Neil

Yes. F4 here in my case.

Also the .a file doesn't have any peripheral related inclusions. Its purely some algo part.

@KnarfB

No float support in either the cores.

[TDK]

Yes, if it doesn't include anything STM32F4-specific, it should work on other Cortex-M4 processors. Something like a DSP library would be compatible.

[dwarakanath]

Let me check and update

[dwarakanath]

It didn't work. some stack related linking error popped up. I think this is compiler dependent.



Thanks folks for the encouraging support.
