Macro for different DMA types

[AShetty]

I am making an application using the STM32 drivers. Currently, I am using the following macro defined in the 'Device' drivers to distinguish the chip families:



/**
 * @brief STM32 Family
 */
#if !defined (STM32F4)
#define STM32F4
#endif /* STM32F4 */​



As we know, STM32F2/F4 and F7 have a different type of DMA implementation than STM32H5, leading to differences in elements in DMA_InitTypeDef and DMA_HandleTypeDef structures.
Is there a macro that will help us distinguish these DMA types, rather than the chip family macro?

[TDK]

No, there are not per-peripheral macros for each family and version of peripheral.

[Andrew Neil]

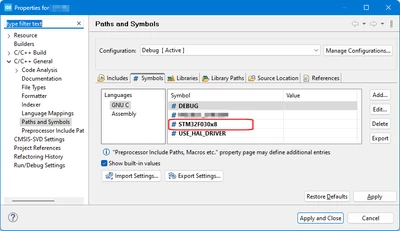

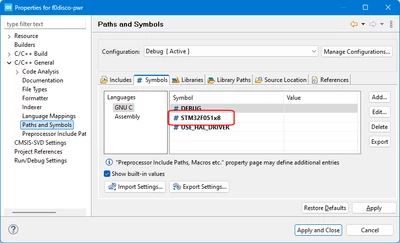

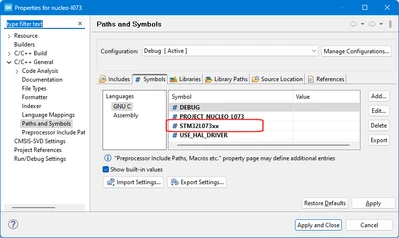

CubeIDE will automatically include a #define for the chip you're using; eg,

So you could use that to create your "family" macro; eg,



#if defined STM32F051x8 || defined STM32F030x8
#define STM32F0
#elif defined STM32L073xx
#define STM32L0
#else
#error "Unknown chip"
#endif





EDIT:

Sorry, I mis-read the question.

But, in a similar style, you could provide your own "DMA Type" macro:

#if defined STM32F2 || defined STM32F4 || defined STM32F7
#define DMA_TYPE_1
#elif defined STM32H5
#define DMA_TYPE_2
#else
#error "Unknown STM32 family."
#endif
