Main Config: These peripherals still have some not configured or wrong parameter values:[SYS_M4] issue

[jovewu]

The board I'm using is STM32H747I-DISCO, and the tool I installed is STM32CubeIDE 1.19.0.

I want to build a static library based on it.

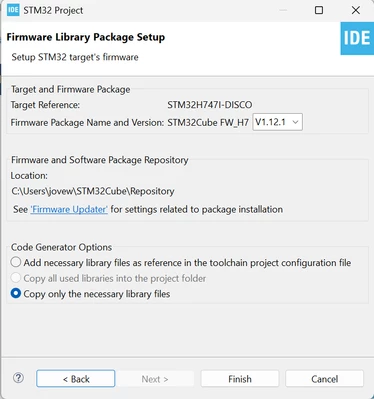

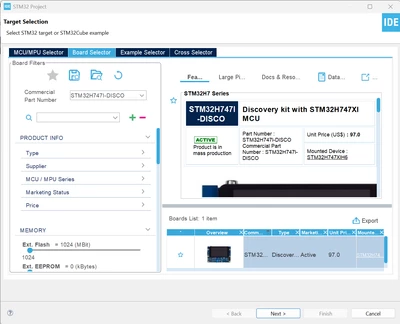

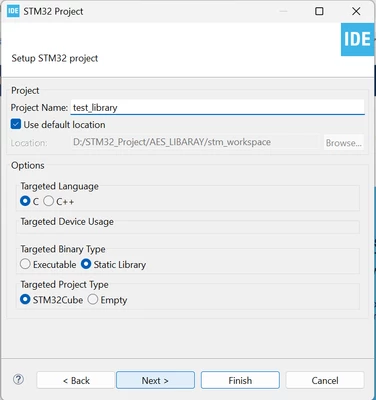

Therefore, I run the following steps to create the library.

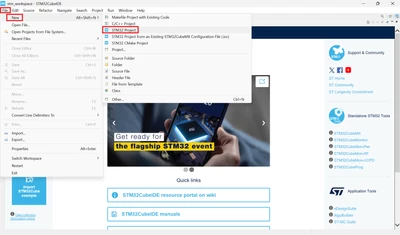

File -> New -> STM32 Project

At this time, I got the following WARNING meesage.

Does anyone know how to solve this issue?



I tried to build the generated project using the following actions.

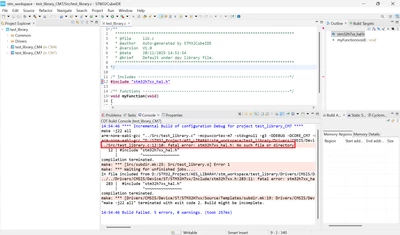

And then, I got the following errors.

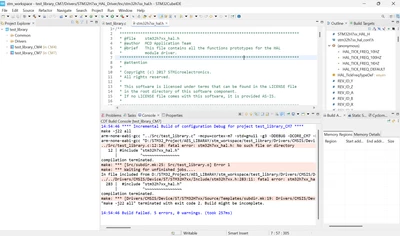

However, this file already exists, as shown in the image below.



Did I make any mistakes in the steps I took to create the library? And how can I resolve these issues?



[Ghofrane GSOURI]

Hello @jovewu

I'm currently checking this behavior. I will get back to you asap.

THX

Ghofrane

[jovewu]

Hello Ghofrane,

Yes, this solution is feasible.

THX

JoveWu

[Ghofrane GSOURI]

Hello @jovewu

To resolve this issue , please follow those steps :

- Open the two files : stm32h7xx_hal_conf.h. and stm32h7xx_hal.h

- Right click on the  stm32h7xx_hal.h  then select show in option then System  Explorer

This will open the path where the file is placed , copy the path



- Right click on the CM4  project --> Properties -->C/C++ Build -->Settings -->MCU/MPU GCC compiler -->include paths : add the copied path --> Apply and close

- Do the same thing for the stm32h7xx_hal_conf.h

- Redo the work for your CM7 project

Then build your two projects : will get 0 Errors 0 warnings

THX

Ghofrane
