Missed files when 'Enable BASEPRI support' in X-CUBE-AZRTOS-F7'

  • January 22, 2025
  • 1 reply
  • 921 views

Hi,

It seems the X-CUBE-AZRTOS-F7 1.1.0 is based on ThreadX 6.1.7. But after select 'Enable BASEPRI support', it missed several files which exist in the official 6.1.7 release, they are:

tx_thread_interrupt_disable.S and _tx_thread_interrupt_restore.S.

Thanks.



'

    Best answer by Mahmoud Ben Romdhane

    Hello @diverger ,

    Thank you for reporting this issue:

    Missing declaration of tx_thread_interrupt_restore.s and tx_thread_interrupt_disable.s in STMicroelectronics

    X-CUBE-AZRTOS-F7.1.1.0_Configs.xml for the CM7 GNU.

    I am escalating an internal ticket to the concerned team (ticket number:201630).



    Thanks.

    Mahmoud





    1 reply

    M
    Mahmoud Ben Romdhane
    Technical Moderator
    January 22, 2025

    Hello @diverger ,

    First let me thank you for posting.

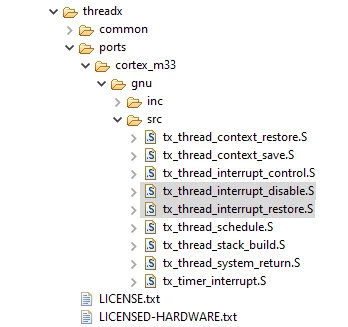

    I have created a project with STM32F722ICK6 and I have installed and enabled X-CUBE-AZRTOS-F7.






    tx_thread_interrupt_disable.S and _tx_thread_interrupt_restore.S are well generated.




    Thanks.

    Mahmoud

    To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
    D
    divergerAuthor
    Senior
    January 25, 2025

    Hi,

    It's weird that your MCU is a F7 based on cortex-m7, but it shows 'cortex-m33' in the picture. In my case, I use STM32F769.

    Please check it.

    Thanks.

      M
      Mahmoud Ben Romdhane
      Technical Moderator
      January 27, 2025

      Hello @diverger ,

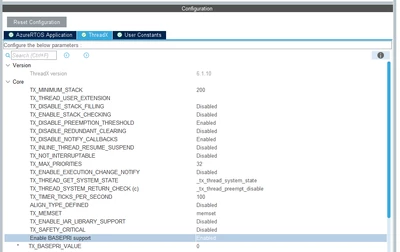

      Further to your comment, I am using STM32CubeMX 6.13 and ThreadX version: 6.1.10 not 6.1.7.


      Thanks.

      Mahmoud
