My cube ide is not auto generating code for modified GPIO's of H755ZI-Q ioc file.

[Faizan_001]

hello,

I have started a project where I have to use SPI, USART, and some modified labeled GPIOs in the nucleo-H755ZI-Q (nucleo-144). Whenever I configure the GPIOs in my ioc file and click generate code. My Cube IDE is not auto-generating code for my modified GPIOs. i have checked again and again there is no option for selecting the core for GPIO_output. Has anyone ever encountered such a problem? For reference, I will attach my project file.



1. I have used Cube MX for generating the IOC file and then imported it into Cube IDE. It did not work.

2. I have repair reinstalled my Cube IDE. No use, did not work.

3. I have downloaded and installed the upgraded version 1.18.1. still facing the problem.

4. I have downloaded and installed the 1.16.0 version. still facing the same problem.

[Mahmoud Ben Romdhane]

Hello @Faizan_001 ,



First let me thank you for posting and welcome to the ST Community.

You request is under investigation, and I will get back to you ASAP.



Thanks.

Mahmoud

[TDK]

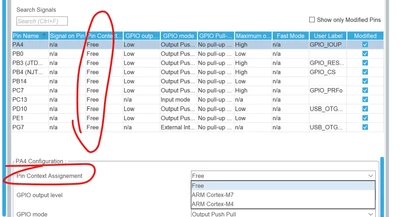

None of your GPIO pins have been assigned a core context. Assign them here and they will be initialized in the corresponding core's code.



[Faizan_001]

Can i ask which software or cube ide version you are using? Can you navigate me from where will I get this options ?



[Mahmoud Ben Romdhane]

Hello @Faizan_001 ,

Further to your comment, you can use STM32CubeMX 1.14.1.

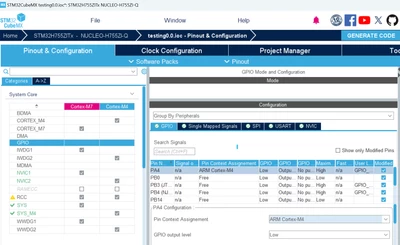

Just click on GPIO under System Core and you can access to the GPIO Parameter Settings.

Thanks.

Mahmoud
