Prevent Flash Erase of EEPROM Pages During STM32CubeIDE Download

[Son, Dong-Seong]

Hello,

I am using an STM32F103VCT microcontroller and the EEPROM emulation library. I write data with the EE_WriteVariable() function and read it back with EE_ReadVariable(). However, whenever I download new firmware to the MCU via ST-Link V2 in STM32CubeIDE, the entire flash memory is erased—including the regions where I stored data using EE_WriteVariable().

Is there any way to download or debug new firmware without erasing the flash pages used by the EEPROM emulation?

For reference, I’m running STM32CubeIDE version 1.18.1. Any suggestions would be greatly appreciated.

Thank you!

[Andrew Neil]

CubeIDE should only erase enough flash for the code:

https://community.st.com/t5/stm32cubeide-mcus/partial-or-full-chip-erase-before-programming/m-p/734869/highlight/true#M31829



Please give more details of how you are allocating Flash to the EEPROM emulation - it needs to be in separate pages from the code.



PS:

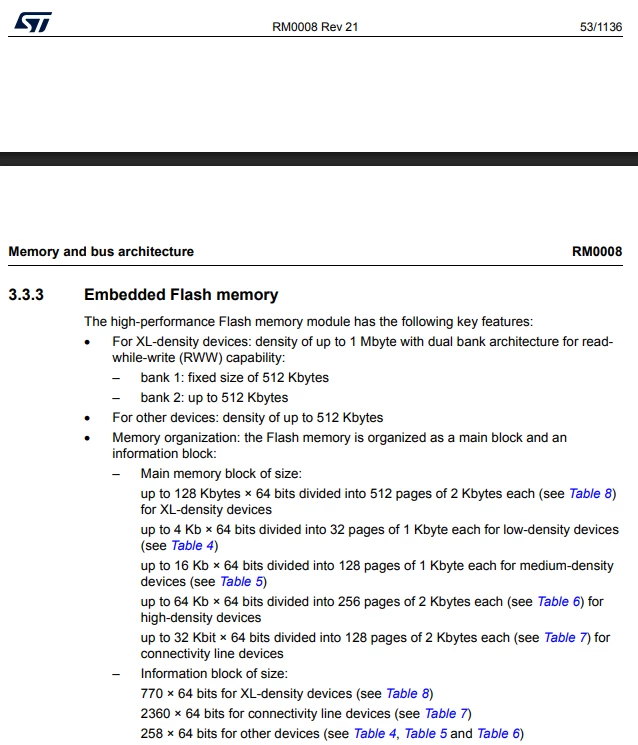

https://www.st.com/resource/en/reference_manual/rm0008-stm32f101xx-stm32f102xx-stm32f103xx-stm32f105xx-and-stm32f107xx-advanced-armbased-32bit-mcus-stmicroelectronics.pdf#page=54

via: https://www.st.com/en/microcontrollers-microprocessors/stm32f103vc.html#documentation



[Son, Dong-Seong]

Hi Andrew

thank you for your reponse.

Below is all of the code I’m using with the EEPROM emulation library. Are there any parts here that could be causing problems?

I would greatly appreciate it if you could let me know how to resolve this.



void read_eeprom()
{
EE_ReadVariable (0x0001, (uint16_t*)&gstSystem.nNumOfBlock);

EE_ReadVariable (0x0002, (uint16_t*)&gstMain.stRep.nInputVccMax);
EE_ReadVariable (0x0003, (uint16_t*)&gstMain.stRep.nInputVccMin);
EE_ReadVariable (0x0004, (uint16_t*)&gstMain.stRep.bBiastInOn);
EE_ReadVariable (0x0005, (uint16_t*)&gstMain.stRep.bBiastOut1On);
EE_ReadVariable (0x0006, (uint16_t*)&gstMain.stRep.bBiastOut2On);
EE_ReadVariable (0x0007, (uint16_t*)&gstMain.stRep.nTempMax);
EE_ReadVariable (0x0008, (uint16_t*)&gstMain.stRep.bShutdownOn);
EE_ReadVariable (0x0009, (uint16_t*)&gstMain.stRep.bAmpOn);
EE_ReadVariable (0x0010, (uint16_t*)&gstMain.stRep.bAlcOn);
EE_ReadVariable (0x0011, (uint16_t*)&gstMain.stRep.nOutputLevelMax);
EE_ReadVariable (0x0012, (uint16_t*)&gstMain.stRep.nAlcLevel);
EE_ReadVariable (0x0013, (uint16_t*)&gstMain.stRep.nAttenIn);
EE_ReadVariable (0x0014, (uint16_t*)&gstMain.stRep.nAttenOut);
EE_ReadVariable (0x0015, (uint16_t*)&gstMain.stRep.nAttenL1);
EE_ReadVariable (0x0016, (uint16_t*)&gstMain.stRep.nAttenL2);
}

void write_eeprom()
{
HAL_FLASH_Unlock();
EE_WriteVariable (0x0001, gstSystem.nNumOfBlock);

EE_WriteVariable (0x0002, gstMain.stRep.nInputVccMax);
EE_WriteVariable (0x0003, gstMain.stRep.nInputVccMin);
EE_WriteVariable (0x0004, gstMain.stRep.bBiastInOn);
EE_WriteVariable (0x0005, gstMain.stRep.bBiastOut1On);
EE_WriteVariable (0x0006, gstMain.stRep.bBiastOut2On);
EE_WriteVariable (0x0007, gstMain.stRep.nTempMax);
EE_WriteVariable (0x0008, gstMain.stRep.bShutdownOn);
EE_WriteVariable (0x0009, gstMain.stRep.bAmpOn);
EE_WriteVariable (0x0010, gstMain.stRep.bAlcOn);
EE_WriteVariable (0x0011, gstMain.stRep.nOutputLevelMax);
EE_WriteVariable (0x0012, gstMain.stRep.nAlcLevel);
EE_WriteVariable (0x0013, gstMain.stRep.nAttenIn);
EE_WriteVariable (0x0014, gstMain.stRep.nAttenOut);
EE_WriteVariable (0x0015, gstMain.stRep.nAttenL1);
EE_WriteVariable (0x0016, gstMain.stRep.nAttenL2);
HAL_FLASH_Lock();
}

void read_eeprom_table(uint8_t sel)
{
if(sel >= 2) return;

int pos = 40;

EE_ReadVariable (pos + 0, (uint16_t*)&gstTable[sel].nItem);
EE_ReadVariable (pos + 1, (uint16_t*)&gstTable[sel].step);
EE_ReadVariable (pos + 2, (uint16_t*)&gstTable[sel].max_val);

for(int i=0; i<MAX_TABLE_ITEM_NO; i++) {
EE_ReadVariable (pos + 10 + i, (uint16_t*)&gstTable[sel].table[i]);
}

if(gstTable[sel].nItem == 0 || gstTable[sel].nItem > 100) {
gstTable[sel].nItem = 71;
gstTable[sel].step = 10;
gstTable[sel].max_val = 100;
}
}

void write_eeprom_table(uint8_t sel)
{
if(sel >= 2) return;

int pos = 40;

HAL_FLASH_Unlock();
EE_WriteVariable (pos + 0, gstTable[sel].nItem);
EE_WriteVariable (pos + 1, gstTable[sel].step);
EE_WriteVariable (pos + 2, gstTable[sel].max_val);

for(int i=0; i<MAX_TABLE_ITEM_NO; i++) {
EE_WriteVariable (pos + 10 + i, gstTable[sel].table[i]);
}

HAL_FLASH_Lock();
}



[Andrew Neil]

Please see How to insert source code - the indentation is all lost now, so you'll need to copy again from your original.

You can edit the post:



I don't see in that code where you set the location of your emulated EEPROM within the Flash ?

Also, how much of the Flash is used by your code?
