Problem of writing to opposite registers at the same time.

  • March 26, 2025
  • 2 replies
  • 475 views

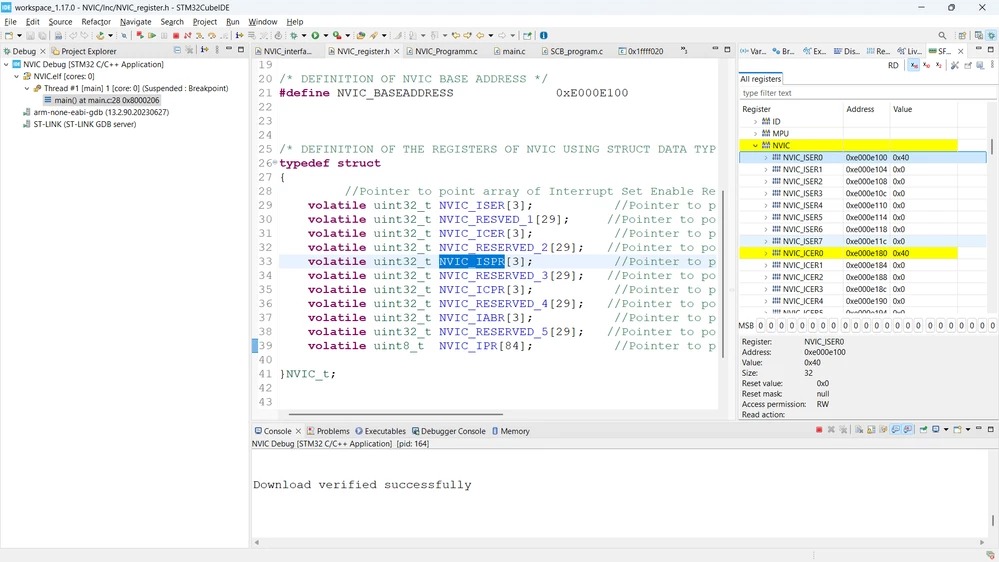

When I write 1 at the position of EXTI0 (6) in the ISER of the NVIC, the value is written to both ISER0 and ICER0. What is the problem ? related to stm32f103c6t6.Screenshot (1090).png

2 replies

Tesla DeLorean
Guru
March 26, 2025

Ok, but is it actually a problem? Does the ISR work as expected?

This is a peripheral, it's not "memory"

Tips, Buy me a coffee, or three.. PayPal VenmoUp vote any posts that you find helpful, it shows what's working..
Visitor II
June 25, 2025

I am seeing the same issue with stm32 disc1 board .. i am not seeing interrupt handler getting triggered as icer gets written with iser
