Regarding OCTOSPI

[Aries16]

Hello I am using STM32H723ZGT6 mcu for my project and i am using external flash W25Q128JV but in my controller octospi is given and I want to use Quadspi to read\write data in external flash so how can I do it can anyone help me out if you need more details, let me know

[Tesla DeLorean]

It works materially the same.

You set commands as being 8-bit, and then select the width of command, address and data transactions at a clock level to 1, 2 or 4-bits.

[Tesla DeLorean]

https://github.com/cturvey/stm32extldr/blob/main/ospi_qspi_readid.c

https://github.com/cturvey/stm32extldr/blob/main/ospi_qspi_read.c

[KDJEM.1]

Hello @Aries16;



The OCTOSPI interface supports QuadSPI memories. Please look at FAQ: Does OctoSPI interface support QuadSPI memories?.

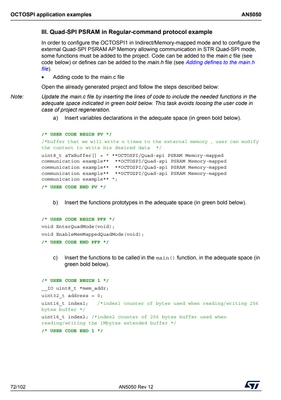

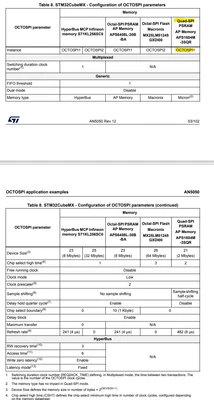

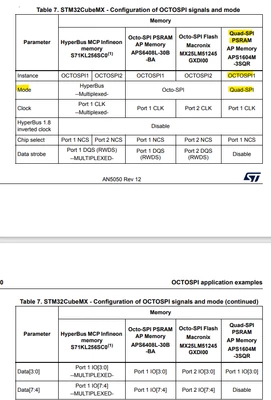

You can find in Getting started with Octo-SPI, Hexadeca-SPI, and XSPI interfaces on STM32 MCUs - Application note and precisely section "7.2 OCTOSPI configuration with STM32CubeMX" an example of Quad-SPI PSRAM memory connected to OCTOSPI interface.







I hope this help you.

Thank you.

Kaouthar
