Related to Debugger window

[PraveenBV]

We are developing custom board for certain application using STM32F103RB for the first time. In order to program/debug we are planning to use,"STLINK-V3SET debugger/programmer for STM8 and STM32". We have gone through schematics of Nucleo - F103RB for reference. Comparing the schematic of Nucleo - F103RB with user manual for STLINK-V3SET, we are having defaulting in debugger window  .

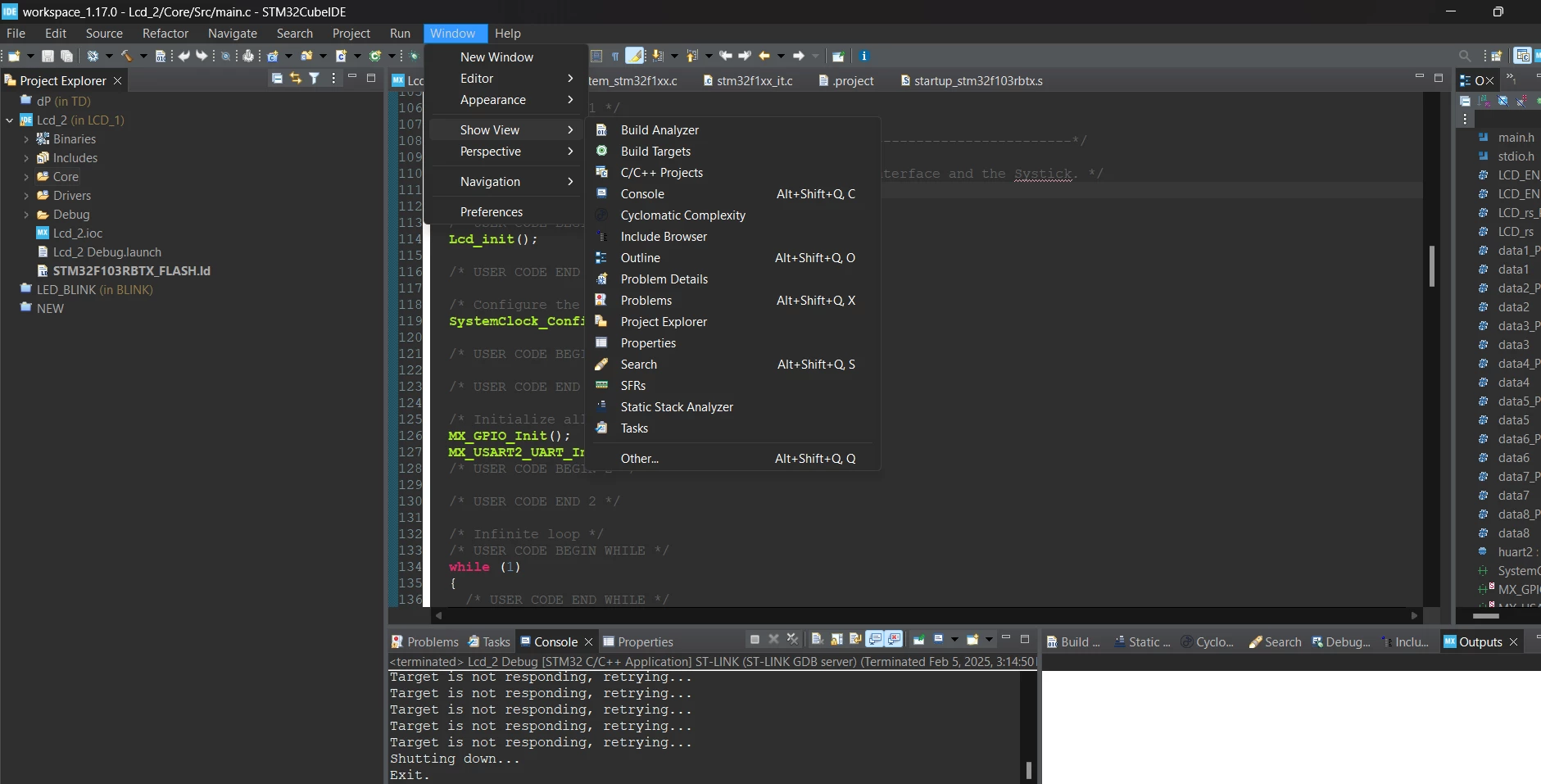

In debugger window ,I am not able to open peripheral  window , and how can ,I check the  output of my code in debugger window.

[Imen.D]

Hello @PraveenBV ,

First, make sure that all connections are correct. Then, try upgrading the STLINK firmware and make sure that you have the latest version of tools.

I advise you follow the step-by-step in this article to monitor and track your code: How to solve debugger connection issues - STMicroelectronics Community
