STM32CubeIDE freeRTOS semaphore creation issue

[MarcinGajewski]

Hi,

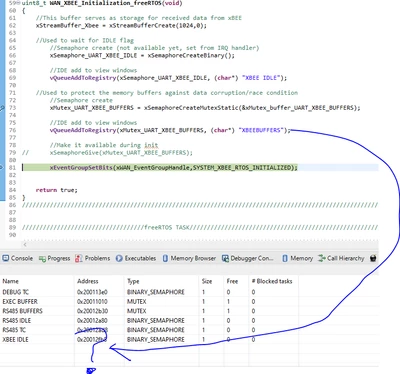

I have a problem during creation of Semaphore in STM32CubeIDE. When I create a semaphore (dynamic or static) and add it to register view then.... nothing happens. I discovered that issue when in fact this mutex behaves as it wouldn't be created ever (taking it, results in  time out). In exactly same way, I do create other semaphores/mutex in the system and all fine. I was making tests and observed:

• dynamic/static creation has no effect
• heap is sufficient, creation in dynamic mode successfully allocates memory for it
• the order or creation matters, just like there would be a lock on max 6 sempahores. When I move the semaphore to initialize it first, it works, but the still the last semaphre suffers.

Any ideas?

Thanks

Marcin



[MarcinGajewski]

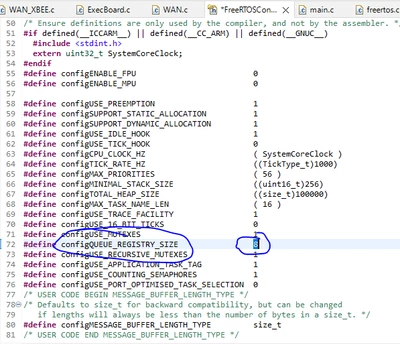

There is limitation in freeRTOS of queue in registry, limited in my case to 8 (I have had already 2 standard queues), so just 6 places left, not allowing 7th to be created.



Issue sorted.

[Alabre09]

This help a lot on my side,
Many thanks



Regards, Axel
