[STM32CubeIDE + MCSDK 6.3.2] Generated Project Missing Header Files (.h)

[burak11]



Subject: Missing .h Files After MC Workbench Code Generation (MCSDK 6.3.2 + STM32CubeIDE 1.13.2)

Message:

Hello ST team,

I am currently working on a sensorless BLDC motor control project using the B-G431B-ESC1 board and STM32CubeIDE 1.13.2 in conjunction with the Motor Control Workbench (MCSDK 6.3.2).

After generating my project (6-step sensorless control) through the Workbench, I observed that the .c source files are properly included under Middlewares/MotorControl, but the corresponding .h header files (bus_voltage_sensor.h, ntc_temperature_sensor.h, etc.) are missing in the include paths.

I verified that these .h files are located at:

C:\Users<user>.st_workbench\projects<project>\MCSDK_v6.3.2-Full\MotorControl\MCSDK\MCLib\Any\Inc\

However:

They are not copied or symbolically linked into the STM32CubeIDE project structure.

As a result, functions like VBS_GetAvBusVoltage_V() or NTC_GetAvTemp_Celsius() cause "undefined reference" errors unless these headers are manually added.

The .c files sometimes do not appear in the Project Explorer until I manually Clean the Project, but the .h files never appear.

This unexpectedly disrupts the ready build.

Is this a pattern of behavior?

Is there a correct way to automatically link/include the MCSDK headers after Workbench code generation?

I have attached the following screenshots:

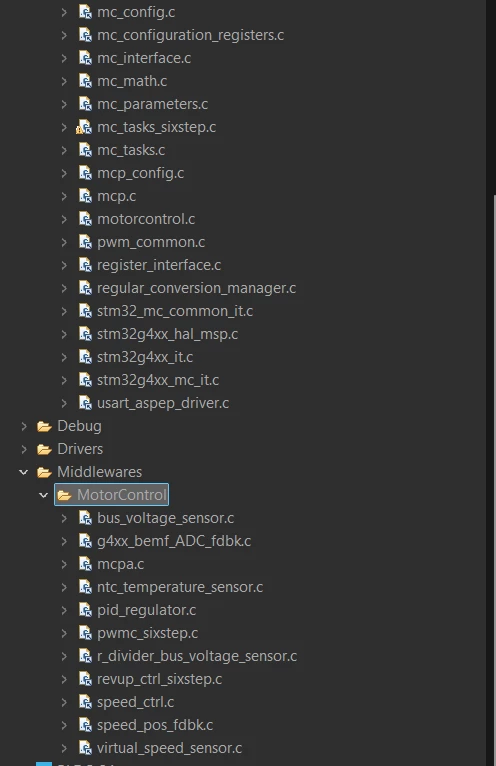

missing classified files,

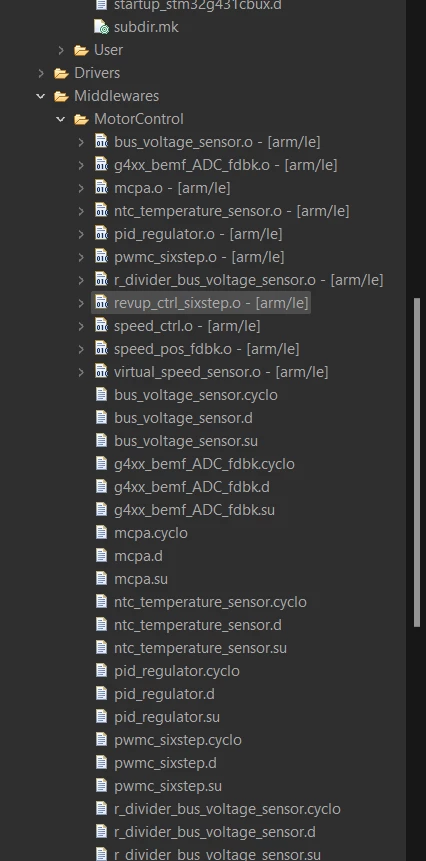

Files only appear after Clean Project,

Headers never appear.

Thank you for your guidance.

Saygılarımla,
Burak Çakır
Kocaeli Üniversitesi – Elektrik Mühendisliği Lisans Öğrencisi



[Souhaib MAZHOUD]

Hello @burak11

It would be appreciated if you could post in English in this international community.
Thank you for your understanding.

I suggest that you try with the latest version of STM32CubeIDE 1.18.1 and check if the issue presist.

BR,

Souhaib
