STM32CubeIDE user interface freezing in Ubuntu 22.04 Wayland session

[iso9660]

Hi,

I would like to report that STM32CubeIDE is freezing when running on Wayland session.

The solution I found is to start Ubuntu in a X session.

Best regards,

Daniel

[user7]

When does the crash occur? Just after starting or after a while?

I installed the generic linux version and have no problems. There is a startup script named stm32cubeide_wayland with following content:

#!/bin/bash

basedir=$(dirname "$BASH_SOURCE")
export GDK_BACKEND=x11
export GTK_THEME=Adwaita
"$basedir"/stm32cubeide "$@"



The line export GTK_THEME=Adwaita was inserted by me to make the theme work. Give it a try.



[iso9660]

It is not that the IDE crashes, but it stops updating the window, so it freezes and it is impossible to work with it.

The configuration in which this happens is:

It works fine in X11



[iso9660]

Ok, I will try your solution

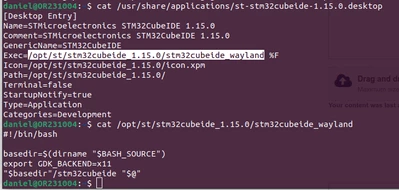

The STM32CubeIDE uses this shortcut:





[user7]

take a look at the contents of the file that you have marked in the screenshot. It has the same name than the file I mentioned. You can open it in your preferred text editor (e.g. kate). Does it have the export GDK_BACKEND=x11 entry? If not, add it.

After which time the IDE  stops working?

Since CubeIDE is based on Eclipse IDE, maybe there is the problem? Could not find information about this.

[iso9660]

I tried your solution (adding Adwaita theme) but it doesn't work.

The file already contained GDK_BACKEND=x11 theme entry.

STM32CubeIDE stops working randomly normally when I switch the Window back to STM32CubeIDE after working in another window.

I am falling back to X11 and it works flawlessly.

[bwarrington]

I've just encountered this problem, today. The answer, for me, was to remove GDK_BACKEND=x11 from /opt/st/stm32cubeide_1.17.0/stm32cubeide_wayland

[GeertK]

I was also seeing this problem after a recent upgrade of Ubuntu in which support for X11 was removed (due the upgrade including a Gnome update that doesn't support it anymore).
Removing GDK_BACKEND=x11 fixed the issue. It's peculiar to see a reference to X11 in a file suffixed _wayland, and I wonder why this line was in there. Perhaps someone from the CubeIDE team can shed some light on this.

[1saeed]

I had the same issue. As a temporary solution you can run the IDE in terminal like:
`unset GDK_BACKEND && /opt/st/stm32cubeide_2.0.0/stm32cubeide`

or

Create a file at ~/.local/share/applications/stm32cubeide-wayland-fixed.desktop with the following content (adjust the
version path as yours):

[Desktop Entry]
Name=STM32CubeIDE
Comment=STM32CubeIDE with Wayland fix
GenericName=STM32CubeIDE
Exec=env -u GDK_BACKEND /opt/st/stm32cubeide_2.0.0/stm32cubeide %F
Icon=/opt/st/stm32cubeide_2.0.0/icon.xpm
Path=/opt/st/stm32cubeide_2.0.0/
Terminal=false
StartupNotify=true
Type=Application
Categories=Development

The key is using env -u GDK_BACKEND which unsets the variable before launching the IDE. After creating the file, run
update-desktop-database ~/.local/share/applications and the new launcher will appear in your application search.
This is not a perfect solution but hopefully resolves the UI freezing part.

[giubacchio]

Hello, I tried:

• adding "export GTK_THEME=Adwaita"
• removing "GDK_BACKEND=x11"
• running "`unset GDK_BACKEND && /<path_to_cube_ide>/stm32cubeide`"

but I have still the IDE that freezes quite often. It seems somehow related at the contextual use of (external) CubeMX or CubeProgrammer; this happened both with version 1.19 and 2.0.

If someone found some different solutions please let me know, because this behavior is very annoying ;)

Thank you,
Giulio
